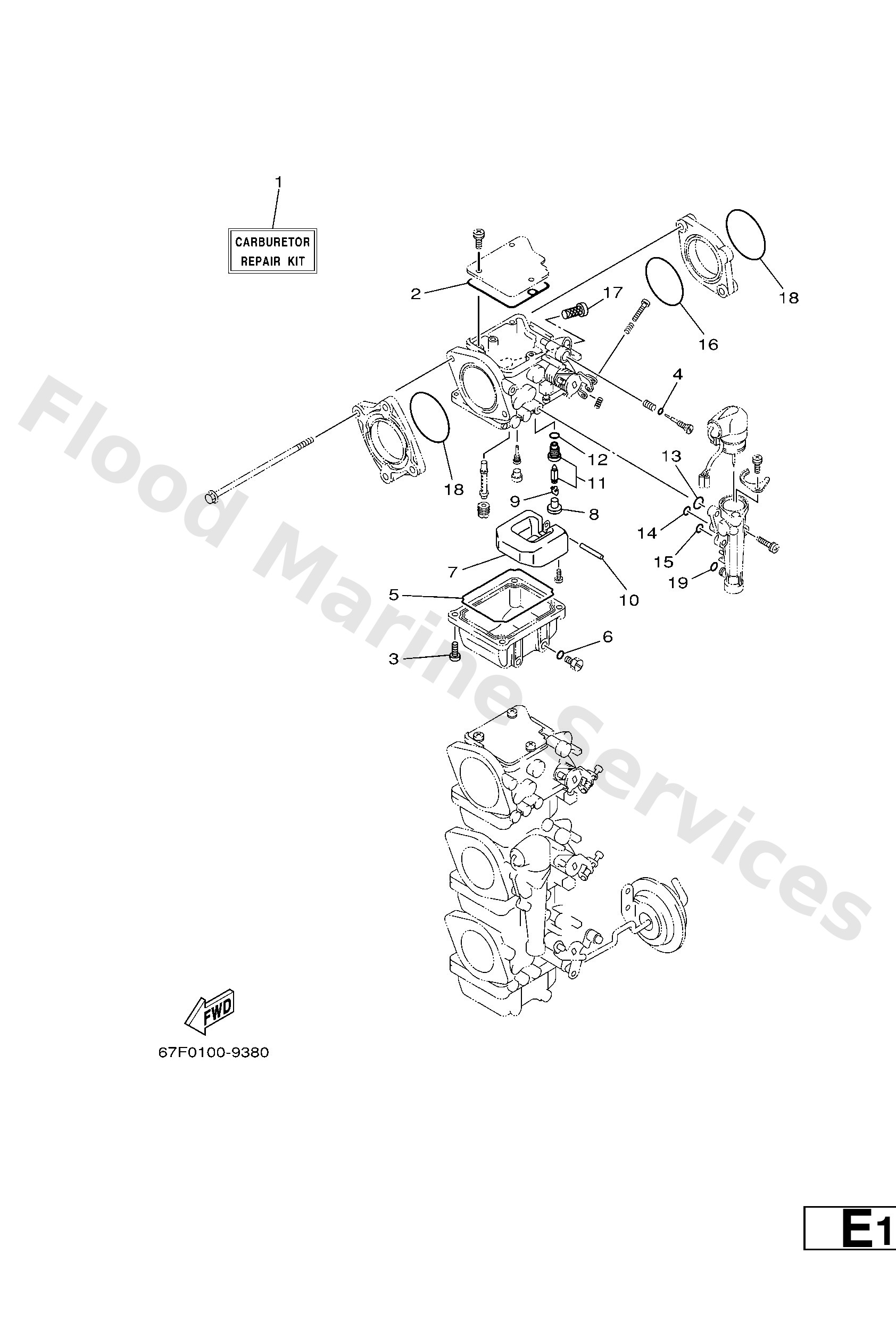

Diagram: REPAIR KIT 2
Parts List
Carburetor repair kit
Diagram Reference: 1
Gasket
Diagram Reference: 2
Screw, pan head(ga5)
Diagram Reference: 3
O-ring
Diagram Reference: 4
Gasket, float chamber
Diagram Reference: 5
O-ring (371)
Diagram Reference: 6
Float
Diagram Reference: 7
Pin, valve
Diagram Reference: 8
Clip
Diagram Reference: 9
Pin, float arm
Diagram Reference: 10
Needle valve assembly
Diagram Reference: 11
O-ring (371)
Diagram Reference: 12
O-ring
Diagram Reference: 13
O-ring
Diagram Reference: 14
O-ring
Diagram Reference: 15
Seal
Diagram Reference: 16
Element, filter
Diagram Reference: 17
O-ring (682)
Diagram Reference: 18
O-ring
Diagram Reference: 19
