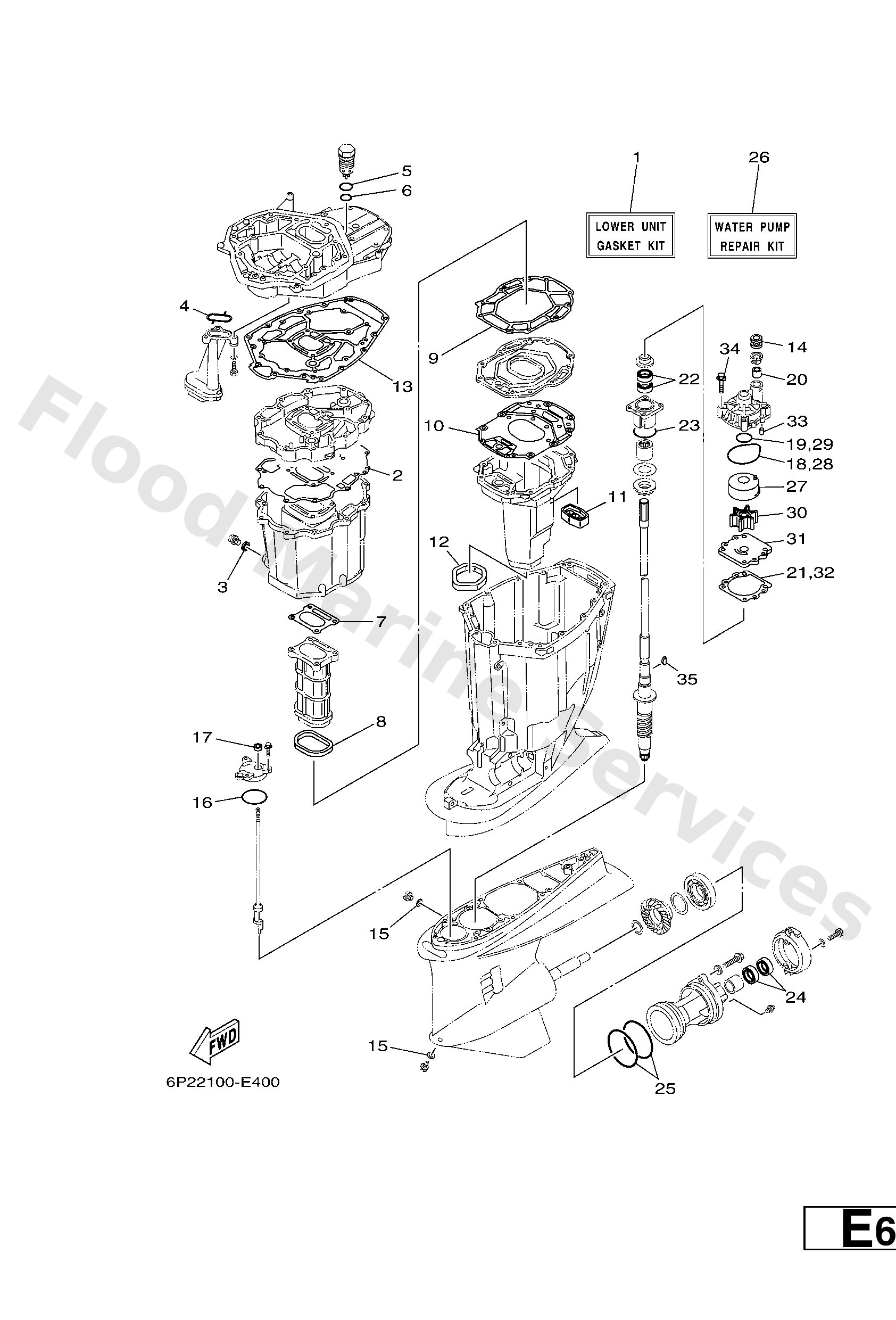

Diagram: REPAIR KIT 2

Diagram

Parts List

6P2W000121
Lower unit gasket kit
Diagram Reference: 1
Get Part
69J1531201
Gasket, oil pan
Diagram Reference: 2
Get Part
9043014M09
Gasket
Diagram Reference: 3
Get Part
69J1341500
Seal, Oil Strainer
Diagram Reference: 4
Get Part
9321033MG4
O-Ring
Diagram Reference: 5
Get Part
9321028543
O–Ring
Diagram Reference: 6
Get Part
6P24113400
Gasket, exhaust manifold
Diagram Reference: 7
Get Part
69J4113800
Seal, Ext. 1
Diagram Reference: 8
Get Part
69J41135A0
Gasket, Exhaust Manifold
Diagram Reference: 9
Get Part
6S14113600
Gasket, exhaust manifold 4
Diagram Reference: 10
Get Part
69J4512700
Seal
Diagram Reference: 11
Get Part
69J4512300
Gasket, Muffler
Diagram Reference: 12
Get Part
69J4511320
Gasket, upper casing
Diagram Reference: 13
Get Part
6E54436600
Damper, Water Seal 2
Diagram Reference: 14
Get Part
9043008020
Gasket
Diagram Reference: 15
Get Part
9321064488
O–Ring
Diagram Reference: 16
Get Part
9310609014
28
Diagram Reference: 17
Get Part
9321086M38
O-Ring
Diagram Reference: 18
Get Part
9321037160
O-Ring
Diagram Reference: 19
Get Part
6E54436500
Damper, Water Seal 1
Diagram Reference: 20
Get Part
6E544315A0
Gasket, Water Pump
Diagram Reference: 21
Get Part
9310128M16
Oil Seal
Diagram Reference: 22
Get Part
9321055M14
O-Ring
Diagram Reference: 23
Get Part
9310130002
Oil seal
Diagram Reference: 24
Get Part
9321104384
O–Ring
Diagram Reference: 25
Get Part
61AW0078A3
Water Pump Repair Kit
Diagram Reference: 26
Get Part
61A4432202
Insert, Cartridge
Diagram Reference: 27
Get Part
6E54435201
Impeller
Diagram Reference: 30
Get Part
6G54432300
Outer Plate, Cartridge
Diagram Reference: 31
Get Part
9360612019
Pin, Dowel
Diagram Reference: 33
Get Part
9011908M14
Bolt, With Washer
Diagram Reference: 34
Get Part
9028004M05
29
Diagram Reference: 35
Get Part
