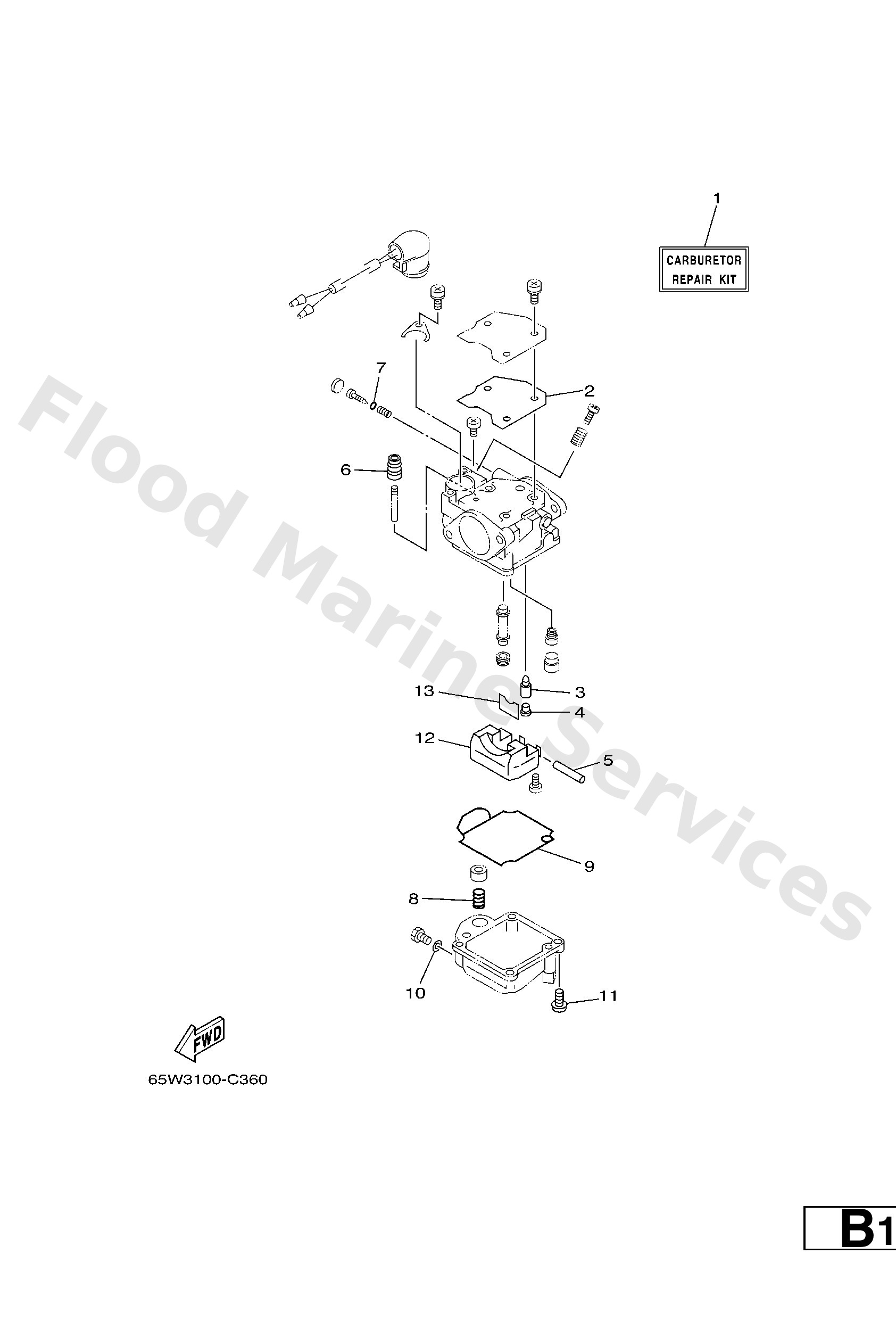

Diagram: REPAIR KIT 2
Parts List
Carburetor repair kit
Diagram Reference: 1
Gasket
Diagram Reference: 2
Valve, needle
Diagram Reference: 3
Pin, valve
Diagram Reference: 4
Pin, float arm
Diagram Reference: 5
Cover, plunger cap
Diagram Reference: 6
O-ring
Diagram Reference: 7
Spring, plunger
Diagram Reference: 8
Gasket, float chamber
Diagram Reference: 9
Washer
Diagram Reference: 10
Screw, pan head(ga5)
Diagram Reference: 11
Float
Diagram Reference: 12
Clip
Diagram Reference: 13
