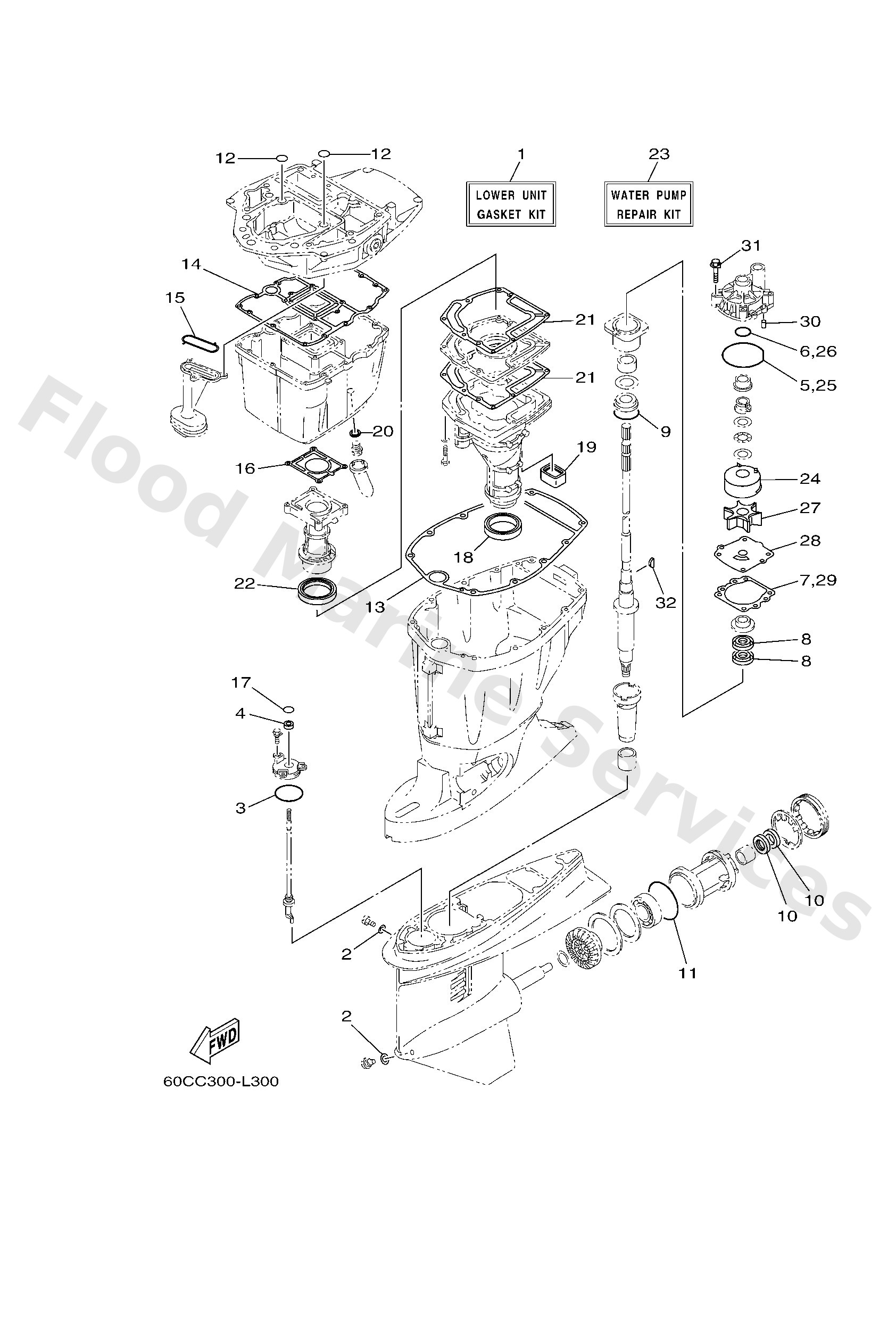

Diagram: REPAIR KIT 3

Diagram

Parts List

68VW000121
Lower unit gasket kit
Diagram Reference: 1
Get Part
9043008020
Gasket
Diagram Reference: 2
Get Part
9321058144
O-ring(47x)
Diagram Reference: 3
Get Part
9310609014
Oil seal
Diagram Reference: 4
Get Part
9321086M38
O-ring (6e5)
Diagram Reference: 5
Get Part
9321037160
O-ring (6g8)
Diagram Reference: 6
Get Part
6E544315A0
Gasket,water pump
Diagram Reference: 7
Get Part
9310128M16
Oil seal (6e5)
Diagram Reference: 8
Get Part
9321055M14
O-ring (70e)
Diagram Reference: 9
Get Part
9310130M17
Oil seal (6e5)
Diagram Reference: 10
Get Part
9321086M39
O-ring (6e5)
Diagram Reference: 11
Get Part
9321019MJ1
O-ring
Diagram Reference: 12
Get Part
67F4511300
Gasket, upper casing
Diagram Reference: 13
Get Part
68V1531200
Gasket, oil pan
Diagram Reference: 14
Get Part
67F1341500
Seal, oil strainer
Diagram Reference: 15
Get Part
67F41133A1
Gasket, exhaust manifold 1
Diagram Reference: 16
Get Part
9321009165
O-ring
Diagram Reference: 17
Get Part
68V4512300
Gasket, muffler
Diagram Reference: 18
Get Part
67F4512700
Seal
Diagram Reference: 19
Get Part
9043014M09
Gasket
Diagram Reference: 20
Get Part
67F41134A0
Gasket, exhaust manifold
Diagram Reference: 21
Get Part
67F4113800
Seal, ext. 1
Diagram Reference: 22
Get Part
60CW007800
Water pump repair kit
Diagram Reference: 23
Get Part
6R34432242
Insert, cartridge
Diagram Reference: 24
Get Part
6E54435201
Impeller
Diagram Reference: 27
Get Part
60C4432340
Outer plate, cartridge
Diagram Reference: 28
Get Part
9360612019
Pin, dowel (614)
Diagram Reference: 30
Get Part
9011908M14
Bolt, with washer
Diagram Reference: 31
Get Part
9028004M05
Key, woodruff (6e5)
Diagram Reference: 32
Get Part
