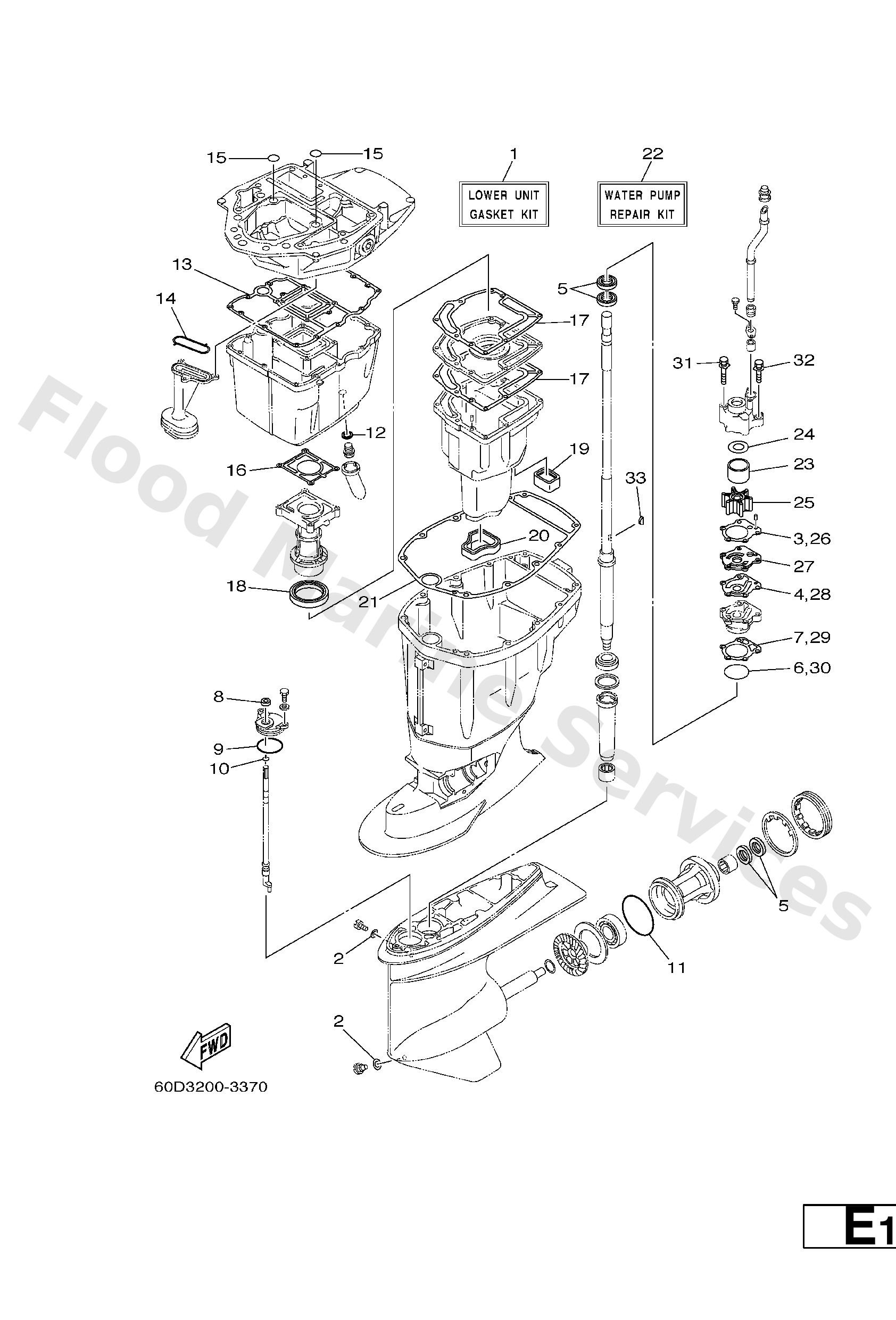

Diagram: REPAIR KIT 3

Diagram

Parts List

67F−W0001−21

Lower unit gasket kit

Diagram Reference: 1

90430−08020

Gasket

Diagram Reference: 2

688−44315−A0

Gasket,water pump 1

Diagram Reference: 3

688−44324−A0

Gasket,cartridge 0uter plate

Diagram Reference: 4

93101−25M03

Oil seal

Diagram Reference: 5

93210−46044

O-ring

Diagram Reference: 6

688−44316−A0

Gasket,water pump 2

Diagram Reference: 7

93106−09014

Oil seal

Diagram Reference: 8

93210−49046

O-ring (620)

Diagram Reference: 9

93210−07003

O-ring (11m)

Diagram Reference: 10

93210−86M39

O-ring (6e5)

Diagram Reference: 11

90430−14M09

Gasket

Diagram Reference: 12

68V−15312−00

Gasket, oil pan

Diagram Reference: 13

67F−13415−00

Seal, oil strainer

Diagram Reference: 14

93210−19MJ1

O-ring

Diagram Reference: 15

67F−41133−A1

Gasket, exhaust manifold 1

Diagram Reference: 16

67F−41134−A0

Gasket, exhaust manifold

Diagram Reference: 17

67F−41138−00

Seal, ext. 1

Diagram Reference: 18

67F−45127−00

Seal

Diagram Reference: 19

67F−45123−00

Gasket, muffler

Diagram Reference: 20

67F−45113−00

Gasket, upper casing

Diagram Reference: 21

60D−W0078−00

37 −

Diagram Reference: 22

60D−44322−40

Insert, Cartridge

Diagram Reference: 23

688−44321−41

Inner plate, cartridge

Diagram Reference: 24

67F−44352−00

Impeller

Diagram Reference: 25

60D−44323−40

Outer Plate, Cartridge

Diagram Reference: 27

90119−08M87

Bolt, with washer

Diagram Reference: 31

90119−08M13

Bolt, with washer(6h0)

Diagram Reference: 32

90280−04M04

Key, woodruff (688)

Diagram Reference: 33
