F13.5A (2007)
REPAIR KIT 3

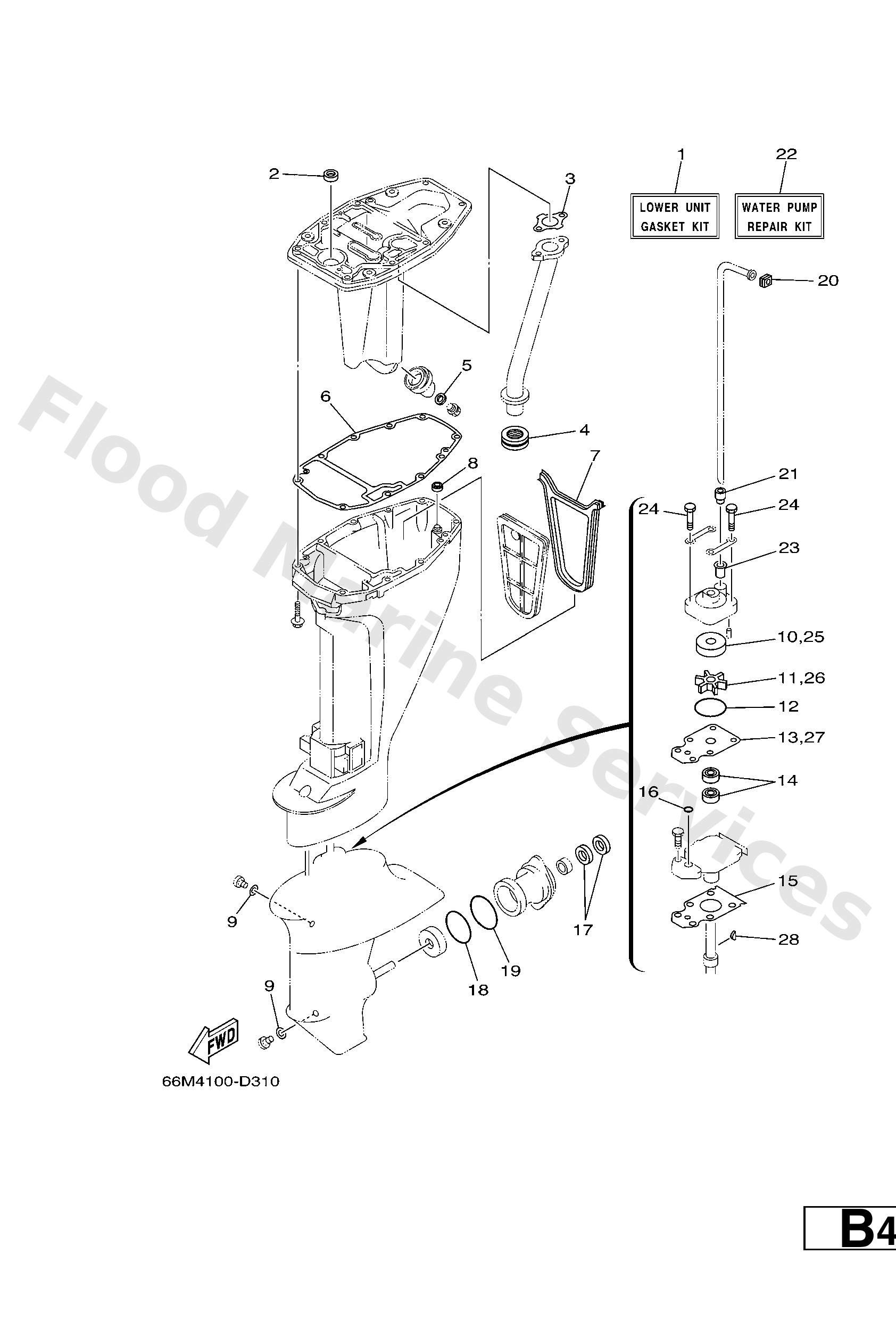

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
66MW000121
Lower unit gasket kit
Loading…
↗
2
9310112M63
Oil seal
Loading…
↗
3
66M4113301
Gasket, exhaust manifold 1
Loading…
↗
4
6D44113800
Seal, ext. 1
Loading…
↗
5
9043014M09
Gasket
Loading…
↗
6
66M4511300
Gasket, upper casing
Loading…
↗
7
66M4511500
Gasket, upper casing
Loading…
↗
8
66M4512800
Seal 2
Loading…
↗
9
9043008020
Gasket
Loading…
↗
10
63V4432200
Insert, cartridge
Loading…
↗
11
63V4435201
Impeller
Loading…
↗
12
9321044398
O-ring(55x)
Loading…
↗
13
63V4432300
Outer plate, cartridge
Loading…
↗
14
9310120001
Oil seal
Loading…
↗
15
63V45315A0
Packing, lower casing
Loading…
↗
16
9321006ME6
O-ring
Loading…
↗
17
9310117054
Oil seal (17x30x6-650)
Loading…
↗
18
9321057M09
O-ring (683)
Loading…
↗
19
9321056M80
O-ring(6j8)
Loading…
↗
20
63V4436510
Damper, water seal 1
Loading…
↗
21
63V4436800
Rubber, water seal 4
Loading…
↗
22
63VW007800
Water pump repair kit
Loading…
↗
23
6474436600
Damper, water seal 2
Loading…
↗
24
9708008045
Bolt, hexagon
Loading…
↗
28
6644433800
Key, woodruff
Loading…
↗
