F2.5AMH (2003)
REPAIR KIT 3

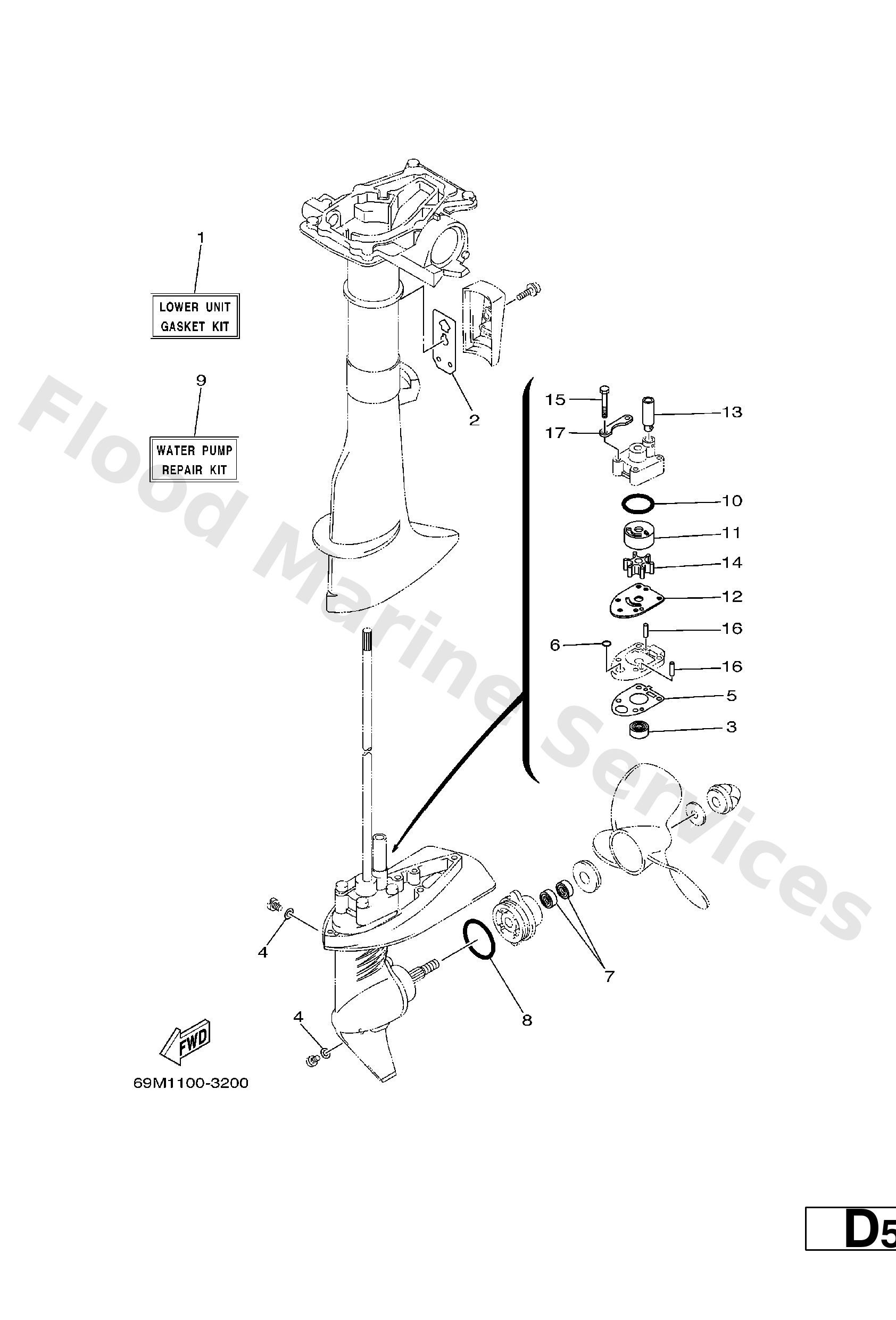

Diagram: REPAIR KIT 3
Parts List
Reference
Description
Price
1
69M−WG001−20
Lower Unit Gasket Kit
Loading…
↗
2
69M−G5115−00
Gasket,upper casing
Loading…
↗
3
93103−09M41
Oil seal
Loading…
↗
4
90430−08801
Gasket
Loading…
↗
5
69M−G5315−A0
Packing,lower casing
Loading…
↗
6
93210−05001
O-ring
Loading…
↗
7
93101−13M12
Oil seal
Loading…
↗
8
93210−48214
O-ring
Loading…
↗
9
69M−WG078−00
Water Pump Repair Kit
Loading…
↗
10
93210−33M85
O-ring(6l5)
Loading…
↗
11
6L5−44322−00
Insert, cartridge
Loading…
↗
12
69M−G4323−00
Outer plate,cartridge
Loading…
↗
13
6E0−44366−00
Damper, water seal 2
Loading…
↗
14
6L5−44352−00
Impeller
Loading…
↗
15
97095−06040
Bolt (682)
Loading…
↗
16
93604−18080
Pin. dowel. (647)
Loading…
↗
17
69M−G4328−00
Plate
