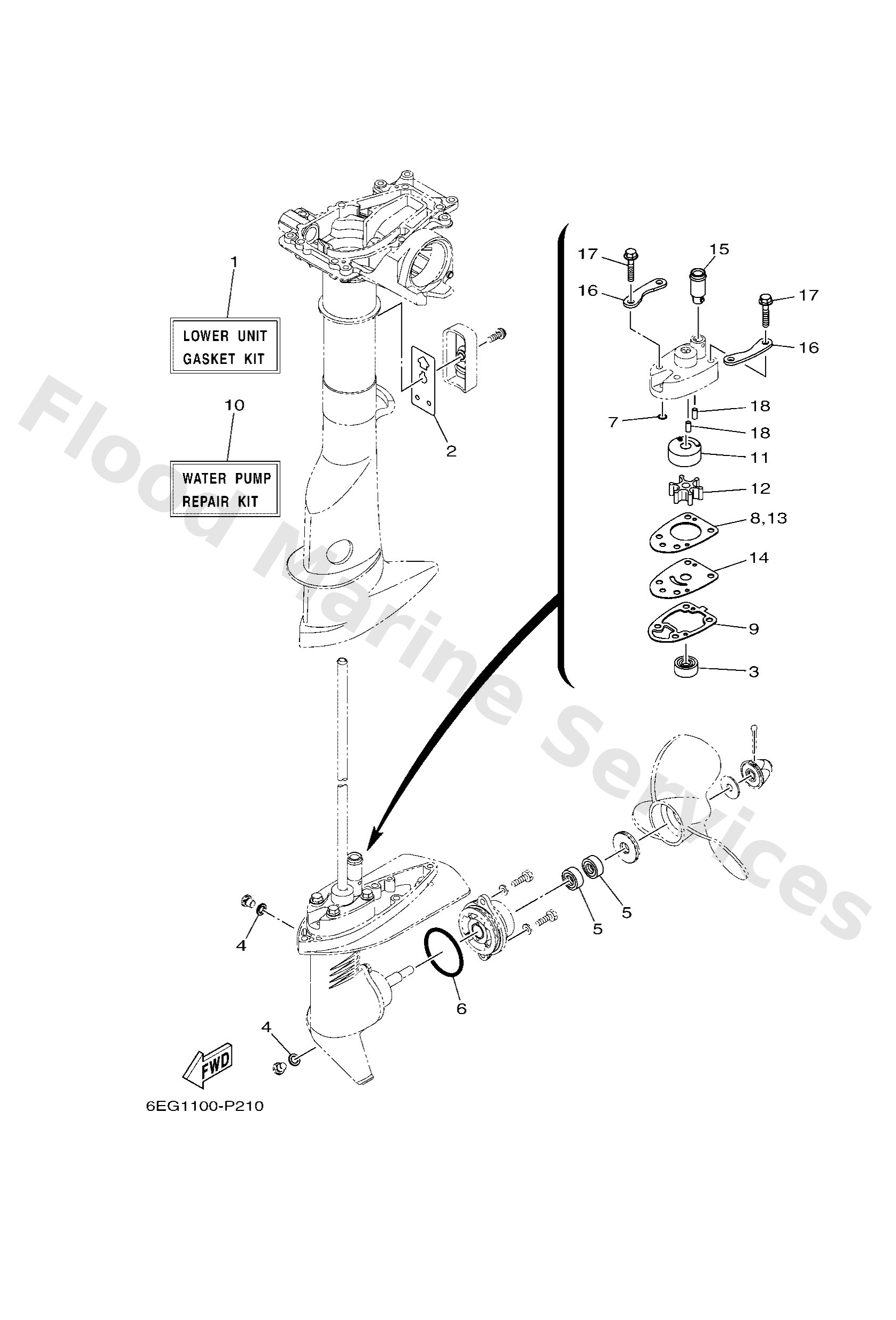

Diagram: REPAIR KIT 3

Diagram

Parts List

6EGW000120
Lower unit gasket kit
Diagram Reference: 1
Get Part
6EGG511500
Gasket, upper casi
Diagram Reference: 2
Get Part
9310309800
Oil seal
Diagram Reference: 3
Get Part
9043008003
Gasket
Diagram Reference: 4
Get Part
9310113800
Oil seal
Diagram Reference: 5
Get Part
9321048800
O-ring
Diagram Reference: 6
Get Part
9321005001
O-ring
Diagram Reference: 7
Get Part
6EGG431500
Gasket, water pump
Diagram Reference: 8
Get Part
6EGG531500
Packing, lower cas
Diagram Reference: 9
Get Part
6EGW007801
Water pump repair kit
Diagram Reference: 10
Get Part
6EGG432200
Insert, cartridge
Diagram Reference: 11
Get Part
6L54435200
Impeller
Diagram Reference: 12
Get Part
6EGG432300
Outer plate, cartr
Diagram Reference: 14
Get Part
6EEG436600
Damper, water seal 2
Diagram Reference: 15
Get Part
6EGG432800
Plate
Diagram Reference: 16
Get Part
97E9506535
Bolt, hexagon w/w deep recess
Diagram Reference: 17
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 18
Get Part
