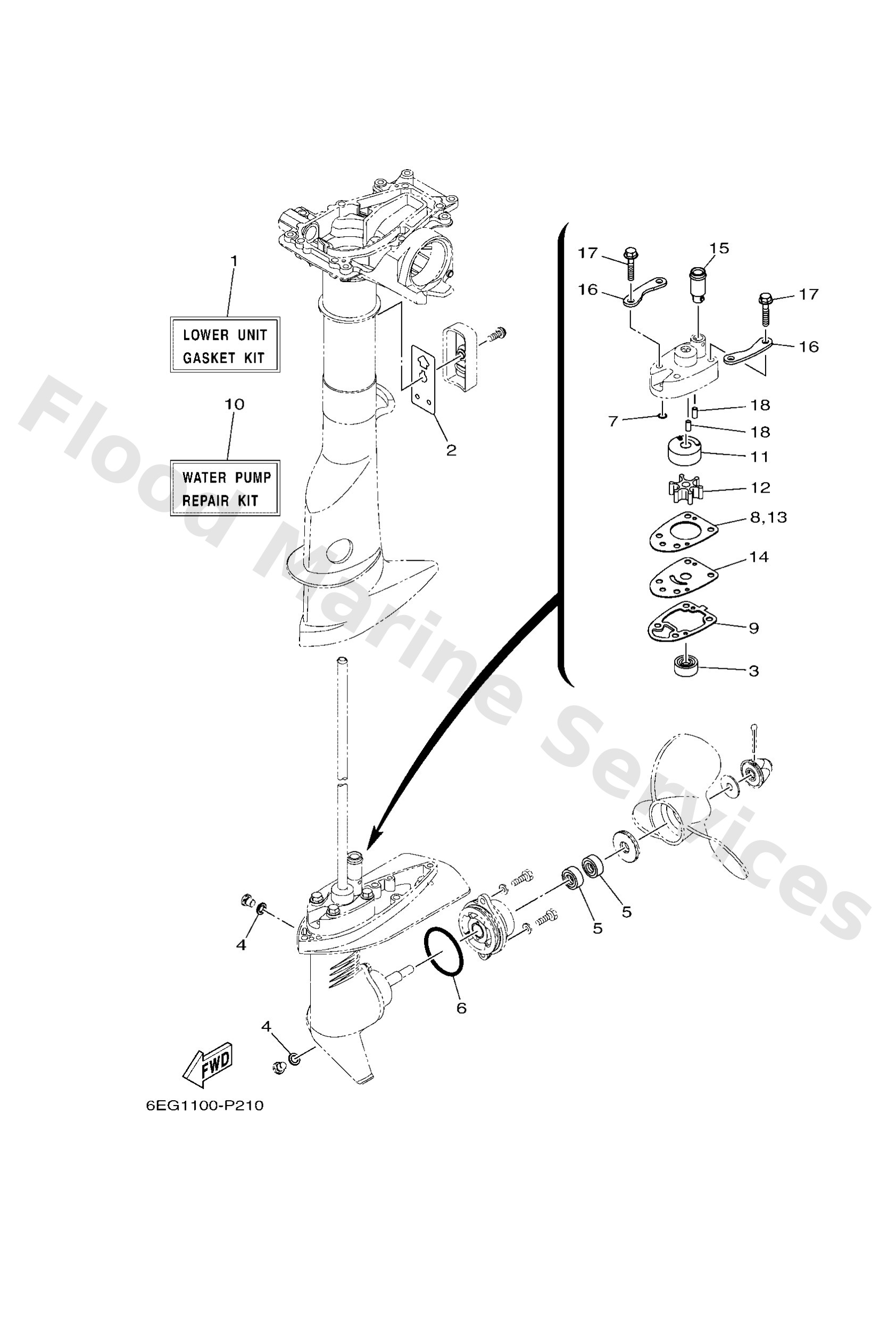

Diagram: REPAIR KIT 3

Diagram

Parts List

6EGW000121
Lower unit gasket kit
Diagram Reference: 1
Get Part
6EG4511500
Gasket, upper casing
Diagram Reference: 2
Get Part
9310309M41
Oil seal
Diagram Reference: 3
Get Part
9043008003
Gasket
Diagram Reference: 4
Get Part
9310113M12
Oil seal
Diagram Reference: 5
Get Part
9321048214
O-ring
Diagram Reference: 6
Get Part
9321005001
O-ring
Diagram Reference: 7
Get Part
6EG4431500
Gasket, water pump
Diagram Reference: 8
Get Part
6EG4531500
Packing, lower casing
Diagram Reference: 9
Get Part
6EGW007803
Water pump repair kit
Diagram Reference: 10
Get Part
6L54432200
Insert, cartridge
Diagram Reference: 11
Get Part
6L54435200
Impeller
Diagram Reference: 12
Get Part
6EG4432300
Outer plate, cartridge
Diagram Reference: 14
Get Part
67D4436600
Damper, water seal 2
Diagram Reference: 15
Get Part
6EG4432800
Plate
Diagram Reference: 16
Get Part
97E9506535
Bolt, hexagon w/w deep recess
Diagram Reference: 17
Get Part
9360412M07
Pin, dowel (688)
Diagram Reference: 18
Get Part
