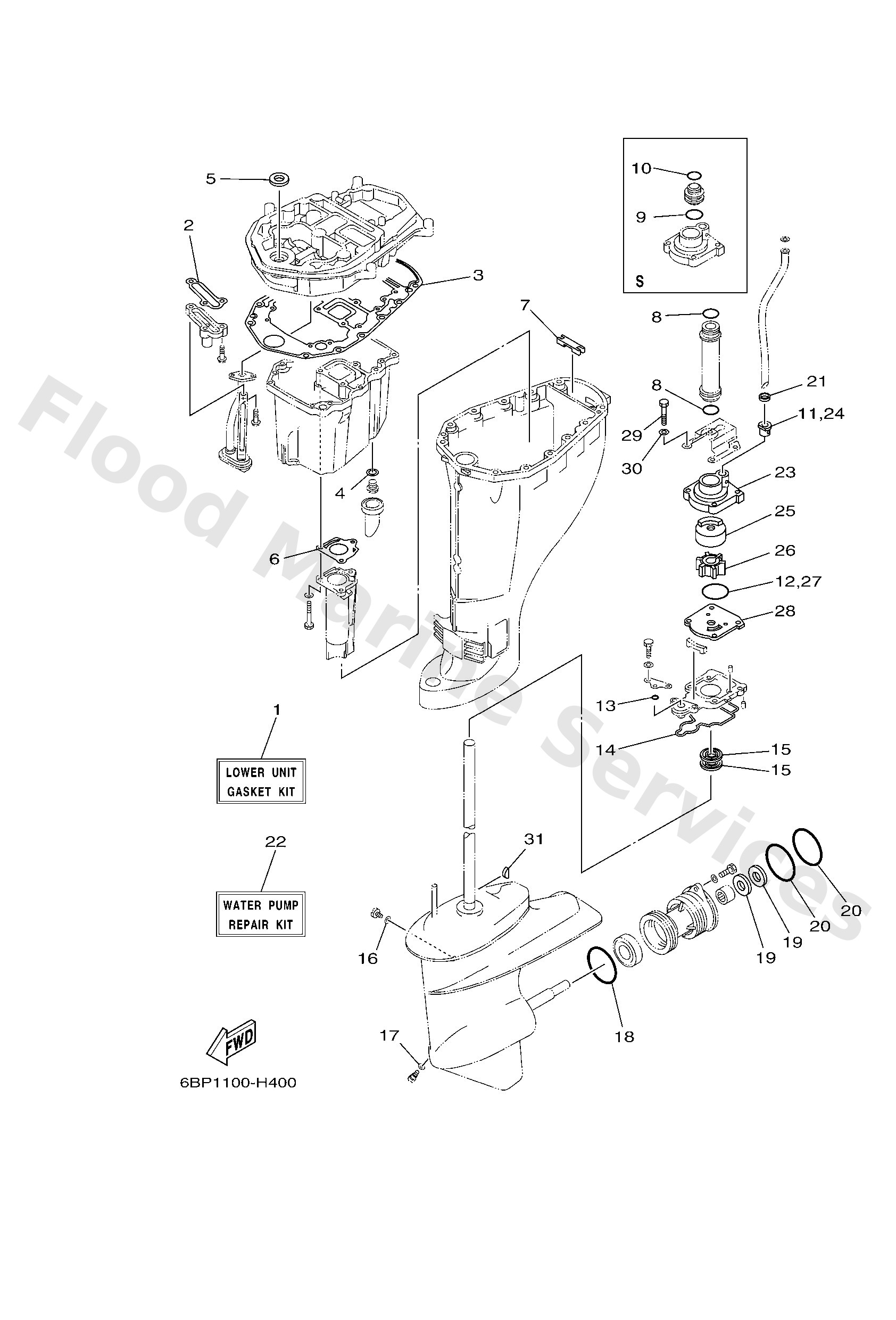

Diagram: REPAIR KIT 3

Diagram

Parts List

65WW000123
Lower unit gasket kit
Diagram Reference: 1
Get Part
62Y1347500
Gasket
Diagram Reference: 2
Get Part
69W1531200
Gasket, oil pan
Diagram Reference: 3
Get Part
9043014M09
Gasket
Diagram Reference: 4
Get Part
9311016004
Oil seal
Diagram Reference: 5
Get Part
67C4113300
Gasket, exhaust manifold 1
Diagram Reference: 6
Get Part
65W4512800
Seal 2
Diagram Reference: 7
Get Part
9321026130 (L(21.6"))
O-ring
Diagram Reference: 8
Get Part
9321022164 (S(16.6"))
O-ring
Diagram Reference: 10
Get Part
6L24436700
Damper, water seal 3
Diagram Reference: 11
Get Part
9321045161
O-ring
Diagram Reference: 12
Get Part
9321006ME6
O-ring
Diagram Reference: 13
Get Part
61N4531500
Packing, lower casing
Diagram Reference: 14
Get Part
9310122067
Oil seal (22x36x6-663)
Diagram Reference: 15
Get Part
9043008020
Gasket
Diagram Reference: 16
Get Part
9321064ME7
O-ring
Diagram Reference: 18
Get Part
9310120M07
Oil seal
Diagram Reference: 19
Get Part
9321065M50
O-ring
Diagram Reference: 20
Get Part
9043010002
Gasket
Diagram Reference: 21
Get Part
61NW007811
Water pump repair kit
Diagram Reference: 22
Get Part
61N4431101
Housing, water pump
Diagram Reference: 23
Get Part
61N4432201
Insert, cartridge
Diagram Reference: 25
Get Part
6H44435202
Impeller
Diagram Reference: 26
Get Part
61N4432300
Outer plate, cartridge
Diagram Reference: 28
Get Part
9709506040
Bolt (682)
Diagram Reference: 29
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 30
Get Part
9028003024
Key, woodruff(662)
Diagram Reference: 31
Get Part
