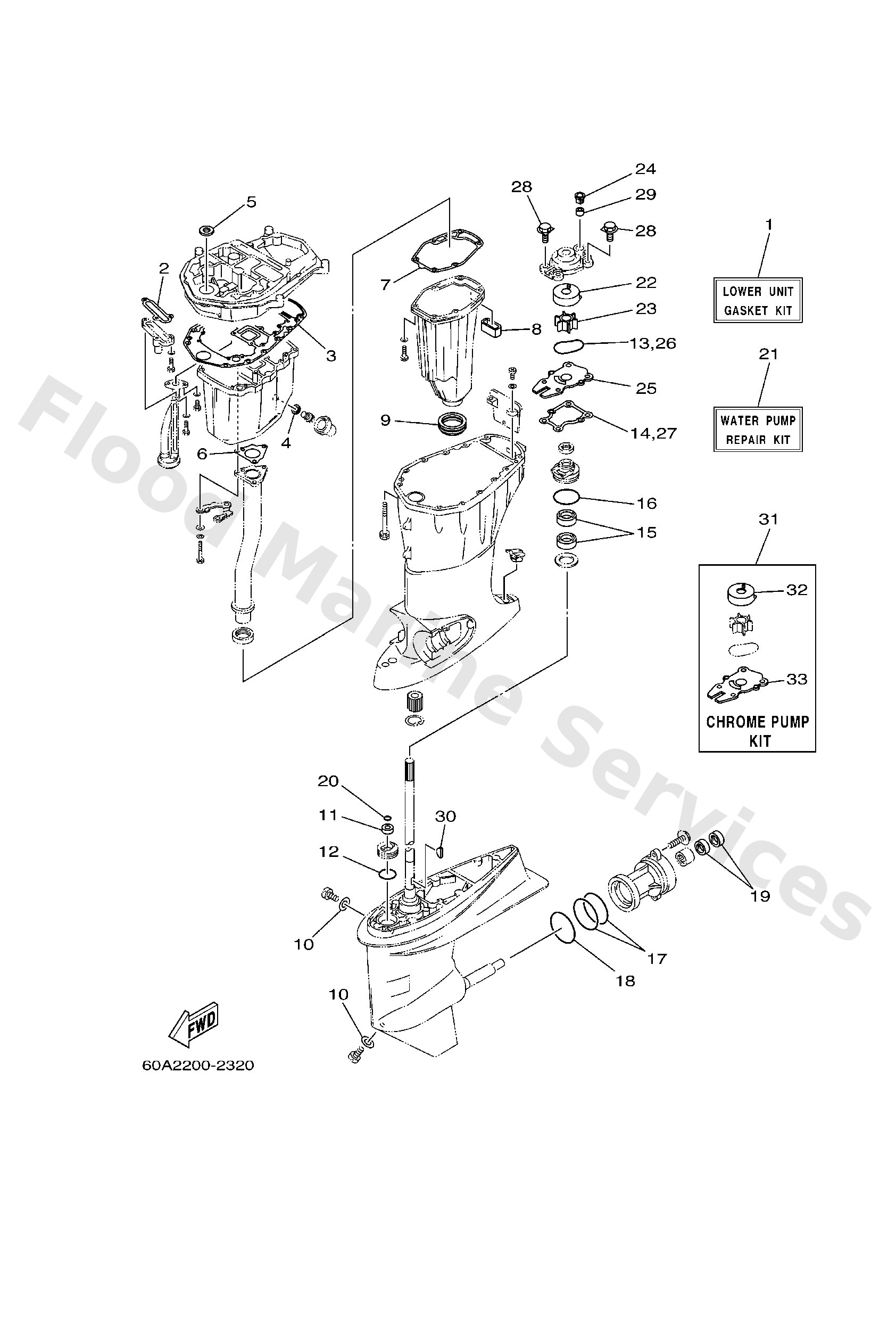

Diagram: REPAIR KIT 3

Diagram

Parts List

60AW000122 (Go to P/N ) PE0-OM-160018)
Lower unit gasket kit
Diagram Reference: 1
Get Part
62Y1347500
Gasket
Diagram Reference: 2
Get Part
69W1531200 (Go to P/N ) PE0-OM-160018)
Gasket, oil pan
Diagram Reference: 3
Get Part
9043014M09
Gasket
Diagram Reference: 4
Get Part
9310318011
Oil seal
Diagram Reference: 5
Get Part
64J4113310
Gasket, exhaust manifold 1
Diagram Reference: 6
Get Part
6BG4113400
Gasket, exhaust manifold
Diagram Reference: 7
Get Part
62Y4512700
Seal
Diagram Reference: 8
Get Part
6634512300
Gasket, muffler
Diagram Reference: 9
Get Part
9043008020
Gasket
Diagram Reference: 10
Get Part
9310609014
Oil seal
Diagram Reference: 11
Get Part
9321033MG4
O-ring
Diagram Reference: 12
Get Part
9321059MG7
O-ring
Diagram Reference: 13
Get Part
63D4431600
Gasket, water pump
Diagram Reference: 14
Get Part
9310125M57
Oil seal
Diagram Reference: 15
Get Part
9321048001
O-ring
Diagram Reference: 16
Get Part
9321074MG5
O-ring (xea)
Diagram Reference: 17
Get Part
9321069MG6
O-ring
Diagram Reference: 18
Get Part
9310122M00
Oil seal (22x36x6-663)
Diagram Reference: 19
Get Part
9321007003
O-ring (11m)
Diagram Reference: 20
Get Part
63DW007801
Water pump repair kit
Diagram Reference: 21
Get Part
63D4432200
Insert, cartridge
Diagram Reference: 22
Get Part
6H34435200
Impellar
Diagram Reference: 23
Get Part
63D4431200
Cover, water pump housing
Diagram Reference: 24
Get Part
63D4432300
Outer plate, cartridge
Diagram Reference: 25
Get Part
9011908M15
Bolt, with washer(62w)
Diagram Reference: 28
Get Part
6634436600
Damper, water seal 2
Diagram Reference: 29
Get Part
9028003024
Key, woodruff(662)
Diagram Reference: 30
Get Part
63DW00780A
Chrome pump kit
Diagram Reference: 31
Get Part
63D4432240
Insert, cartridge
Diagram Reference: 32
Get Part
63D4432340
Outer plate, cartridge
Diagram Reference: 33
Get Part
