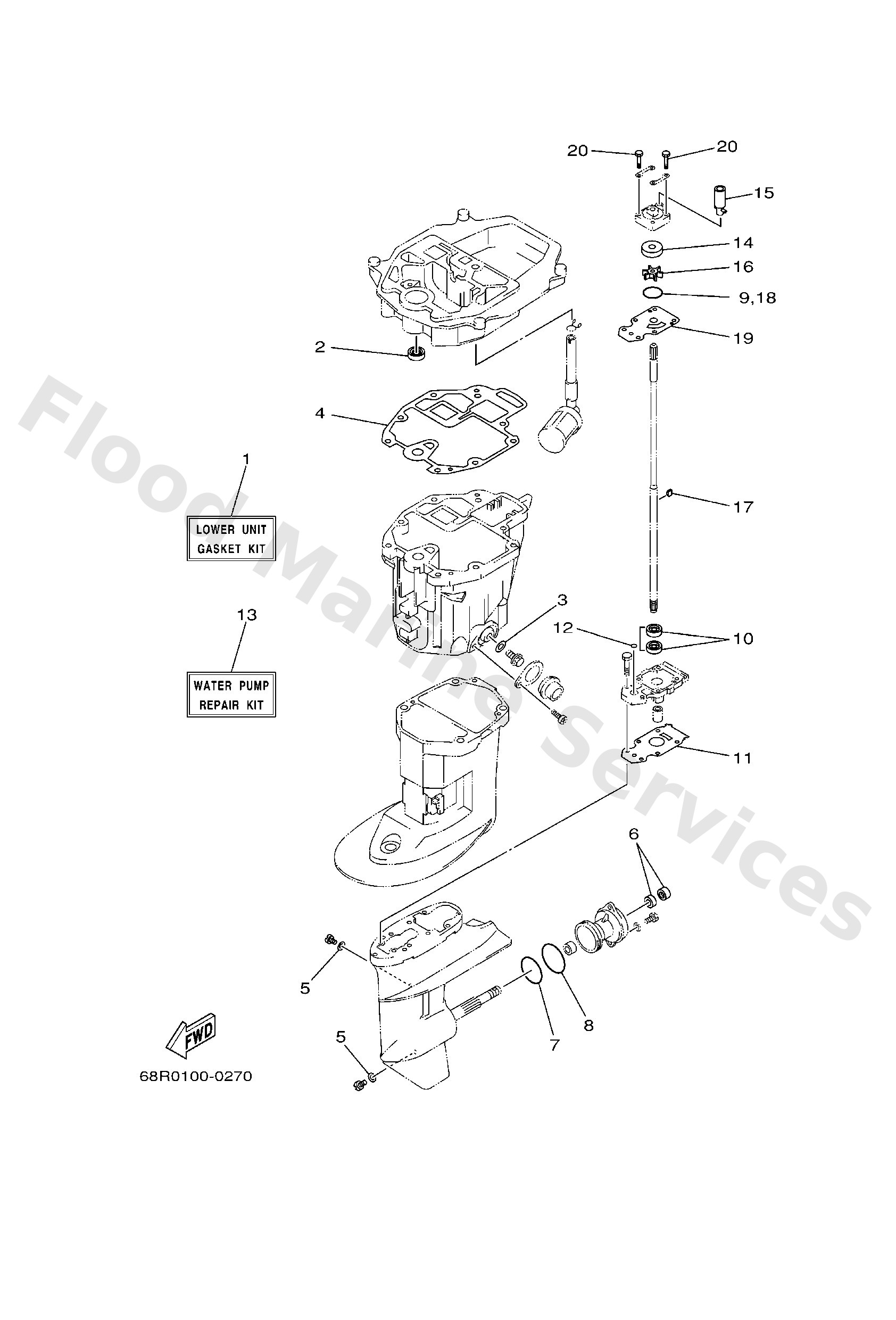

Diagram: REPAIR KIT 3
Parts List
Lower Unit Gasket Kit
Diagram Reference: 1
Oil Seal
Diagram Reference: 2
Gasket
Diagram Reference: 3
Gasket
Diagram Reference: 4
Gasket
Diagram Reference: 5
Oil Seal
Diagram Reference: 6
O-Ring
Diagram Reference: 7
O-Ring
Diagram Reference: 8
O-Ring
Diagram Reference: 9
Oil Seal
Diagram Reference: 10
Packing, Lower Casing
Diagram Reference: 11
O-Ring
Diagram Reference: 12
Water Pump Repair Kit
Diagram Reference: 13
Insert, Cartridge
Diagram Reference: 14
Damper, Water Seal 2
Diagram Reference: 15
Impeller
Diagram Reference: 16
Key, Woodruff
Diagram Reference: 17
Outer Plate, Cartridge
Diagram Reference: 19
