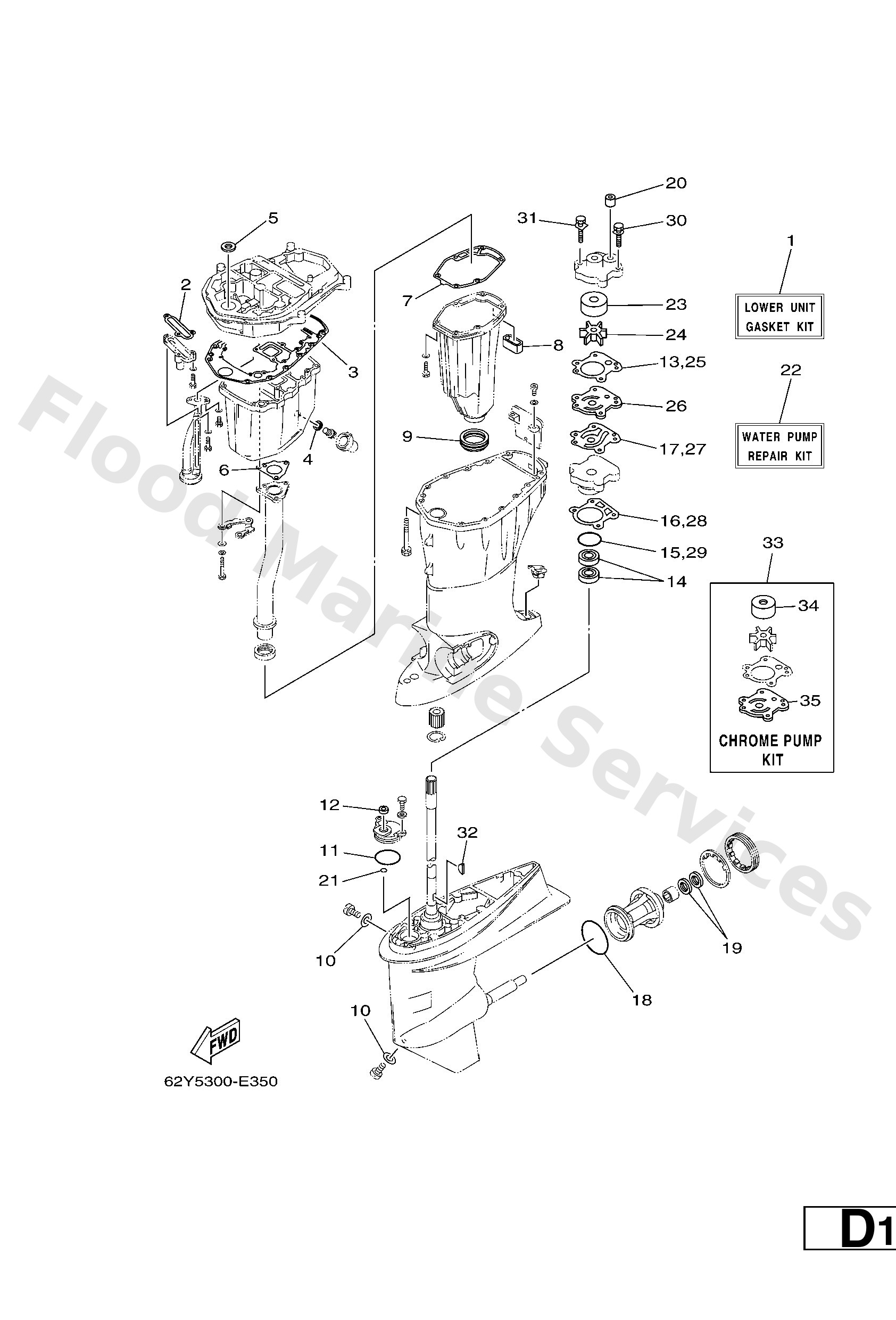

Diagram: REPAIR KIT 4

Diagram

Parts List

64JW00012B (FT50C)
Lower unit gasket kit
Diagram Reference: 1
Get Part
62Y1347500
Gasket
Diagram Reference: 2
Get Part
69W1531200 (Go to P/N ) PE0-OM-160019)
Gasket, oil pan
Diagram Reference: 3
Get Part
9043014M09
Gasket
Diagram Reference: 4
Get Part
9310318011
Oil seal
Diagram Reference: 5
Get Part
64J4113310
Gasket, exhaust manifold 1
Diagram Reference: 6
Get Part
62Y4113401
Gasket, exhaust manifold
Diagram Reference: 7
Get Part
62Y4512700
Seal
Diagram Reference: 8
Get Part
6634512300
Gasket, muffler
Diagram Reference: 9
Get Part
9043008020
Gasket
Diagram Reference: 10
Get Part
9321049046
O-ring (620)
Diagram Reference: 11
Get Part
9310609014
Oil seal
Diagram Reference: 12
Get Part
6H344315A0
Gasket,water pump 1
Diagram Reference: 13
Get Part
9310123070
Oil seal (663)
Diagram Reference: 14
Get Part
9321046044
O-ring
Diagram Reference: 15
Get Part
68844316A0
Gasket,water pump 2
Diagram Reference: 16
Get Part
6H344324A0
Gasket,cartridge 0ut,plate
Diagram Reference: 17
Get Part
9321086M39
O-ring (6e5)
Diagram Reference: 18
Get Part
9310125M03
Oil seal
Diagram Reference: 19
Get Part
6634436600
Damper, water seal 2
Diagram Reference: 20
Get Part
9321007003
O-ring (11m)
Diagram Reference: 21
Get Part
6H3W007802 (FT50C)
Water pump repair kit
Diagram Reference: 22
Get Part
6634432200
Insert, cartridge
Diagram Reference: 23
Get Part
6H34435200
Impellar
Diagram Reference: 24
Get Part
6H34432300
Outer plate, cartridge
Diagram Reference: 26
Get Part
9011908M14
Bolt, with washer
Diagram Reference: 30
Get Part
9011908M33
Bolt, with washer(6b0)
Diagram Reference: 31
Get Part
9028003M03
Key, woodruff (697)
Diagram Reference: 32
Get Part
6H3W00781A (FT50C)
Chrome pump kit
Diagram Reference: 33
Get Part
6634432240
Insert, cartridge
Diagram Reference: 34
Get Part
6H34432340
Outer plate, cartridge
Diagram Reference: 35
Get Part
