40HM (1989)
Remote Control Assy 1

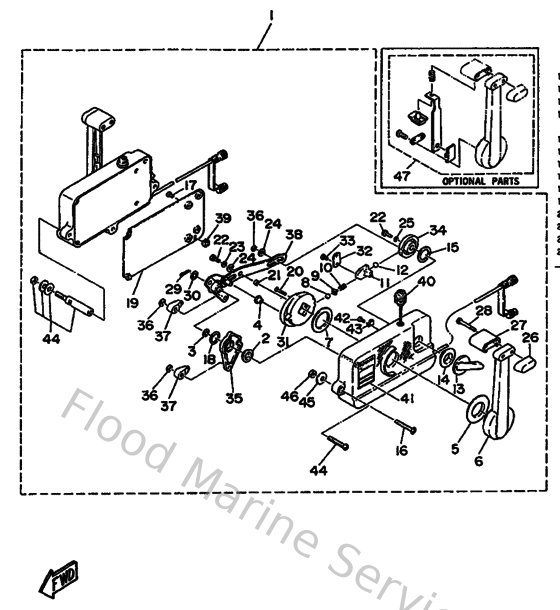

Diagram: Remote Control Assy 1
Parts List
Reference
Description
Price
1
701481011000
Remote control assembly
Loading…
↗
2
701482350000
Bushing 2
Loading…
↗
3
701481971000
Washer, wave 2
Loading…
↗
4
701482520000
Roller, cam
Loading…
↗
5
701482340000
Bushing 1
Loading…
↗
6
701482210000
Lever, control
Loading…
↗
7
701481961100
Washer, wave 1
Loading…
↗
8
701482360000
Roller, detent
Loading…
↗
9
702482370000
Adaptor
Loading…
↗
10
702482380000
Spring, Detent
Loading…
↗
11
701482490000
Spring, adapter
Loading…
↗
12
701482480000
Roller, free accel
Loading…
↗
13
701481521100
Knob, free accel
Loading…
↗
14
701482430000
Bushing
Loading…
↗
15
701481981000
Washer, wave 3
Loading…
↗
16
701482810000
Screw
Loading…
↗
17
978850501000
Screw, pan head(62x)
Loading…
↗
18
701482680000
Spacer 3
Loading…
↗
19
701482130000
Back, plate
Loading…
↗
20
927800602500
Screw flat head
Loading…
↗
21
701482550000
Coller 1
Loading…
↗
22
970800601800
Bolt (fj0)
Loading…
↗
24
701482460000
Spacer
Loading…
↗
25
929900630000
Washer, tooth
Loading…
↗
26
701482290000
Grip, control lever 2
Loading…
↗
27
701482220000
Grip, control lever
Loading…
↗
28
701482820000
Screw, pan head
Loading…
↗
29
701482390000
Set Pin, Plate
Loading…
↗
30
701482660000
Spacer 2
Loading…
↗
31
701482320000
Gear 1
Loading…
↗
32
701481891100
Retainer
Loading…
↗
33
985800501000
Screw, pan head(62x)
Loading…
↗
34
701481531200
Shaft, free accel
Loading…
↗
35
701482711000
Arm, shift
Loading…
↗
36
934300602400
Circlip (701)
Loading…
↗
37
703483450100
Cable end, remote control 2
Loading…
↗
38
701482610000
Arm, throttle
Loading…
↗
39
701483580000
Anchor, cable
Loading…
↗
40
701825505000
Engine Stop Switch assembly
Loading…
↗
42
701482830000
Screw 3
Loading…
↗
43
701825940000
Clamp
Loading…
↗
44
701482910000
Attachment
Loading…
↗
45
701482870000
Washer 1
Loading…
↗
46
953800660000
Nut(661)
Loading…
↗
47
701482800000
Neutral lock kit
