20CMH (1996)
Repair Kit 1

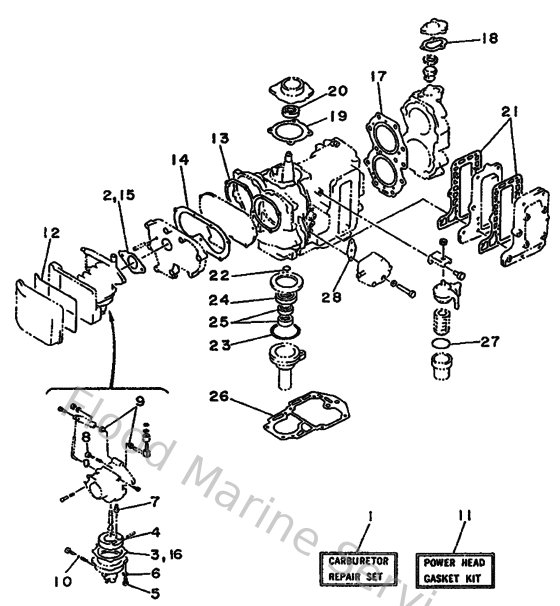

Diagram: Repair Kit 1
Parts List
Reference
Description
Price
1
689W00930000
Carburetor repair kit
Loading…
↗
2
648141980000
Gasket
Loading…
↗
3
648143840100
Gasket,float chamber
Loading…
↗
4
648143850000
Float
Loading…
↗
5
985030401200
Screw, pan head (686)
Loading…
↗
6
929900410000
Ybs67-4 washer, spring
Loading…
↗
7
6J0143901400
Valve seat assembly
Loading…
↗
8
647143230000
Screw, air adjusting
Loading…
↗
9
903860500200
Bush 626412910000
Loading…
↗
10
646143970000
Ring O (664)
Loading…
↗
11
695W00010000
Gasket kit
Loading…
↗
12
9321162M2400
O-Ring (689)
Loading…
↗
13
648136210000
Gasket, valve seat
Loading…
↗
14
64813621A100
Gasket, valve seat
Loading…
↗
15
64814198A000
Gasket
Loading…
↗
17
695111810000
Gasket, cylinder head 1
Loading…
↗
18
655124140000
Gasket, cover
Loading…
↗
19
66415369A000
Gasket, oil seal housing
Loading…
↗
20
931022309600
Oil seal (23x38x7-648)
Loading…
↗
21
664411140000
Gasket, exhaust outer cover
Loading…
↗
22
932101627500
O-ring
Loading…
↗
23
9321057M0900
O-ring (683)
Loading…
↗
24
9310225M0400
Oil seal(6h4)
Loading…
↗
25
9310116M3600
Oil seal(6a8)
Loading…
↗
26
689451130100
Gasket, upper casing
Loading…
↗
27
9321037M2500
O-ring (655)
Loading…
↗
28
650244310000
Gasket,fuel pump
Loading…
↗
