Yamaha Outboard Parts - Repair Kit 2 - 25NWH (1999) | Flood Marine

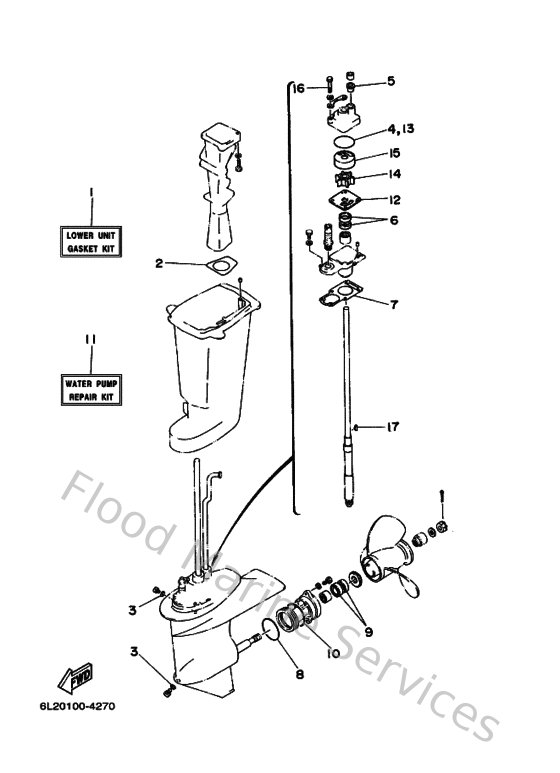

Diagram: Repair Kit 2

Diagram

Parts List

Reference
Description
Price


1
6L2W0001C300
Gasket kit
Loading…

↗
2
6L2411340000
Gasket, exhaust manifold
Loading…

↗
3
904300802000
Gasket
Loading…

↗
4
932104516100
O-ring
Loading…

↗
5
6L2443670000
Damper, water seal 3
Loading…

↗
6
931012004800
Oil seal (20x30x6-648)
Loading…

↗
7
6L245315A000
Packing,l0wer casing
Loading…

↗
8
9321060MA300
O-ring(6j8)
Loading…

↗
9
9310120M0700
Oil seal
Loading…

↗
10
9321060M9900
O-ring(6t3)
Loading…

↗
11
6L2W00780000
Water pump repair kit
Loading…

↗
12
6L2443230000
Outer plate, cartridge
Loading…

↗
14
6L2443520000
Impeller
Loading…

↗
15
6L2443220000
Insert, cartridge
Loading…

↗
16
970950604000
Bolt (682)
Loading…

↗
17
902800302400
Key, woodruff(662)
Loading…

↗
