E60HM (2001)
Repair Kit 2

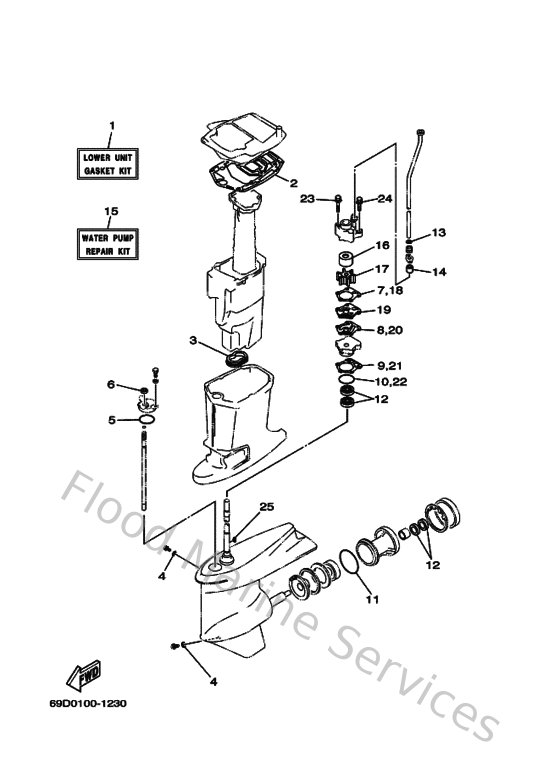

Diagram: Repair Kit 2
Parts List
Reference
Description
Price
1
69DW00012000
Lower unit gasket kit
Loading…
↗
2
6H345114A100
Gasket, upper casing
Loading…
↗
3
6H3451230000
Gasket, muffler
Loading…
↗
4
904300802000
Gasket
Loading…
↗
5
932104904600
O-ring (620)
Loading…
↗
6
931060901400
Oil seal
Loading…
↗
7
68844315A000
Gasket,water pump 1
Loading…
↗
8
68844324A000
Gasket,cartridge 0uter plate
Loading…
↗
9
68844316A000
Gasket,water pump 2
Loading…
↗
10
932104604400
O-ring
Loading…
↗
11
9321085M9700
O-ring(6h1)
Loading…
↗
12
9310125M0300
Oil seal
Loading…
↗
13
904301207200
Gasket
Loading…
↗
14
663443660000
Damper, water seal 2
Loading…
↗
15
69DW00780000
Water pump repair kit
Loading…
↗
16
69D443220000
Insert, cartridge
Loading…
↗
17
688443520300
Impeller
Loading…
↗
19
688443234000
Outer plate, cartridge
Loading…
↗
23
9011908M1600
Bolt, with washer(6h0)
Loading…
↗
24
9011908M1300
Bolt, with washer(6h0)
Loading…
↗
25
9028004M0400
Key, woodruff (688)
Loading…
↗
