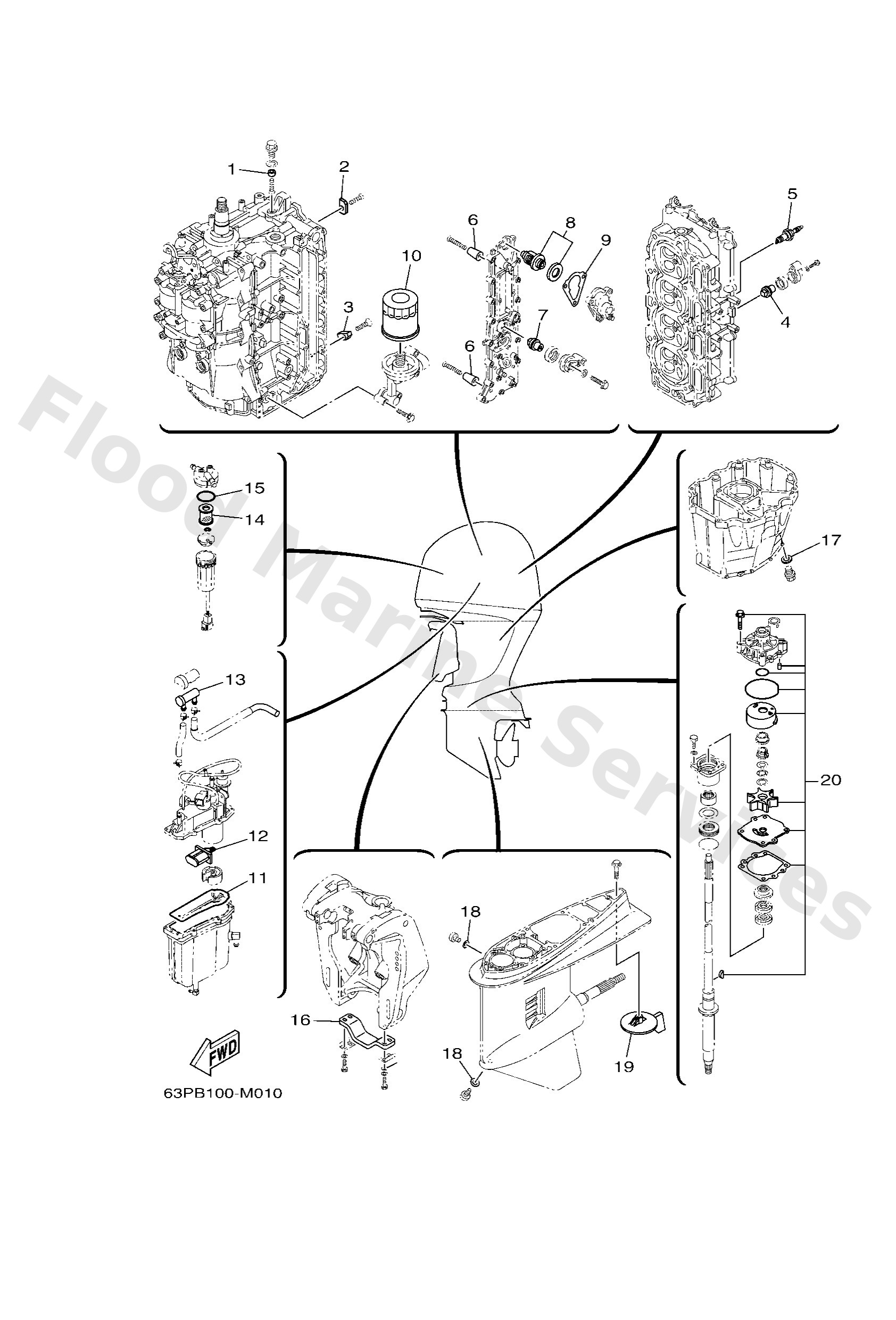

Diagram: SCHEDULED SERVICE PARTS

Diagram

Parts List

63P1132521
Anode
Diagram Reference: 1
Get Part
63P1132511
Anode
Diagram Reference: 2
Get Part
63P1132501
Anode
Diagram Reference: 3
Get Part
67F1132501
Anode
Diagram Reference: 4
Get Part
9470200391
Plug, spark (lfr5a-11)
Diagram Reference: 5
Get Part
68T1132500
Anode
Diagram Reference: 6
Get Part
67F1241101
Thermostat
Diagram Reference: 8
Get Part
63P1241400
Gasket, cover
Diagram Reference: 9
Get Part
69J1344003
Element assembly, oil cleaner
Diagram Reference: 10
Get Part
63P1498400
Gasket, float chamber
Diagram Reference: 11
Get Part
63P1391500
Filter
Diagram Reference: 12
Get Part
69J2450110
Filter, fuel
Diagram Reference: 13
Get Part
6P32456301
Element, filter (with tag)
Diagram Reference: 14
Get Part
6P32456400
Gasket
Diagram Reference: 15
Get Part
6G54525102
Anode
Diagram Reference: 16
Get Part
9043014M09
Gasket
Diagram Reference: 17
Get Part
9043008020
Gasket
Diagram Reference: 18
Get Part
6J94537101
Tab-trim
Diagram Reference: 19
Get Part
6S1W007800
Water pump repair kit
Diagram Reference: 20
Get Part
