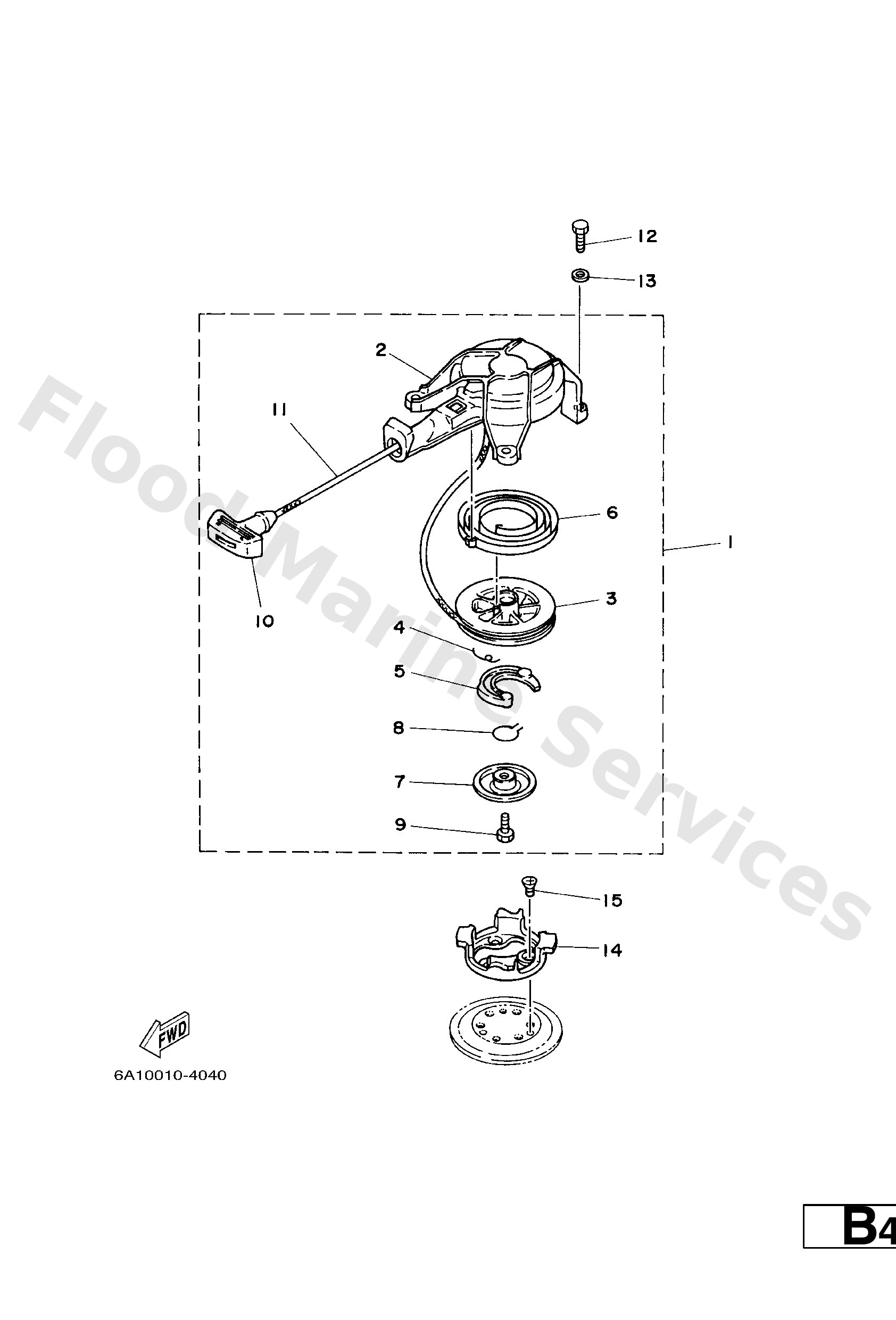

Diagram: STARTER

Diagram

Parts List

6A1−15710−00

Starter ass'y

Diagram Reference: 1

6A1−15711−00

Case, starter

Diagram Reference: 2

6A1−15714−00

Drum, sheave

Diagram Reference: 3

6A1−15767−00

Spring, return

Diagram Reference: 4

6A1−15741−00

Pawl, drive

Diagram Reference: 5

6A1−15713−00

Spring, starter

Diagram Reference: 6

6A1−15717−00

Plate, drive

Diagram Reference: 7

6A1−15705−00

Spring, drive pawl

Diagram Reference: 8

97322−06012

Bolt(gh1)

Diagram Reference: 9

6A1−15755−02

Handle, starter

Diagram Reference: 10

*

item_description

Diagram Reference: 11

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 12

92995−06600

Washer, plain (646)

Diagram Reference: 13

6A1−15723−00−94

Pulley, starter

Diagram Reference: 14

98703−06012

Screw, flat head(6a1)

Diagram Reference: 15
