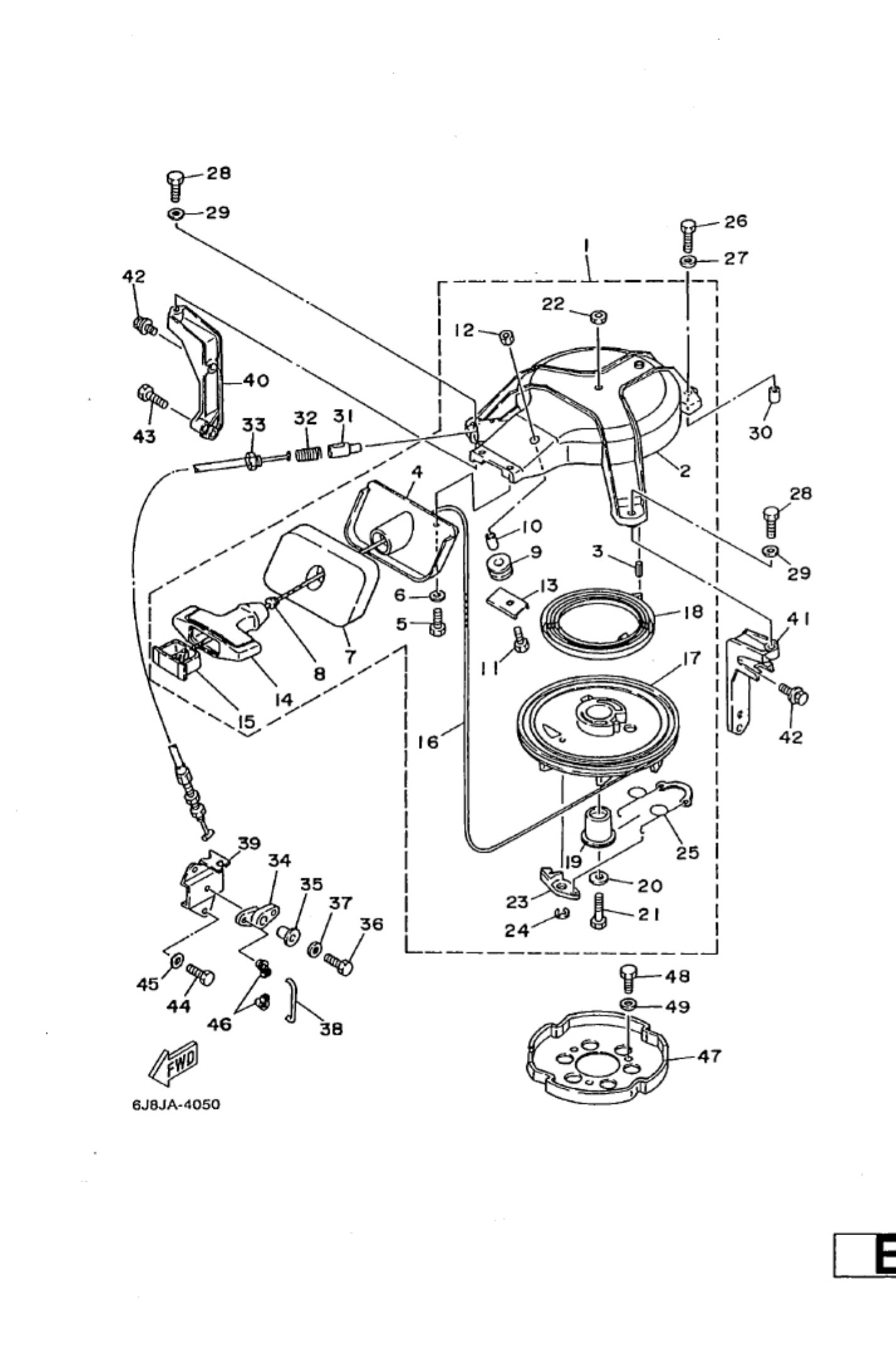

Parts List
6E5-13621-At
Diagram Reference: 1
Starter assembly
Diagram Reference: 1
Omseang
Diagram Reference: 3
Bolt, hexagon deep recess
Diagram Reference: 5
Seal, Rubber 2
Diagram Reference: 5
Damper
Diagram Reference: 8
Adaptor
Diagram Reference: 13
Handle, Starter
Diagram Reference: 14
Cover
Diagram Reference: 15
Pawl, drive
Diagram Reference: 23
Circlip (689)
Diagram Reference: 24
Spring, drive pawl
Diagram Reference: 24
6C5-14182-10
Diagram Reference: 26
Bolt
Diagram Reference: 28
Washer, plain (646)
Diagram Reference: 29
Pin, dowel
Diagram Reference: 30
Plunger, starter stop
Diagram Reference: 31
Spring, comprreshion(656)
Diagram Reference: 32
Cable comp., starter stop
Diagram Reference: 33
Arm
Diagram Reference: 34
Coller (6a0)
Diagram Reference: 35
Bolt
Diagram Reference: 36
Link
Diagram Reference: 38
Stay4
Diagram Reference: 39
Stay 1
Diagram Reference: 40
"Stay2
Diagram Reference: 41
Bolt, with washer(61b)
Diagram Reference: 42
Bolt(62y)
Diagram Reference: 43
Pulley, Starter
Diagram Reference: 47
Bolt(692)
Diagram Reference: 48
Washer, plain (663)
Diagram Reference: 49
