Parts List

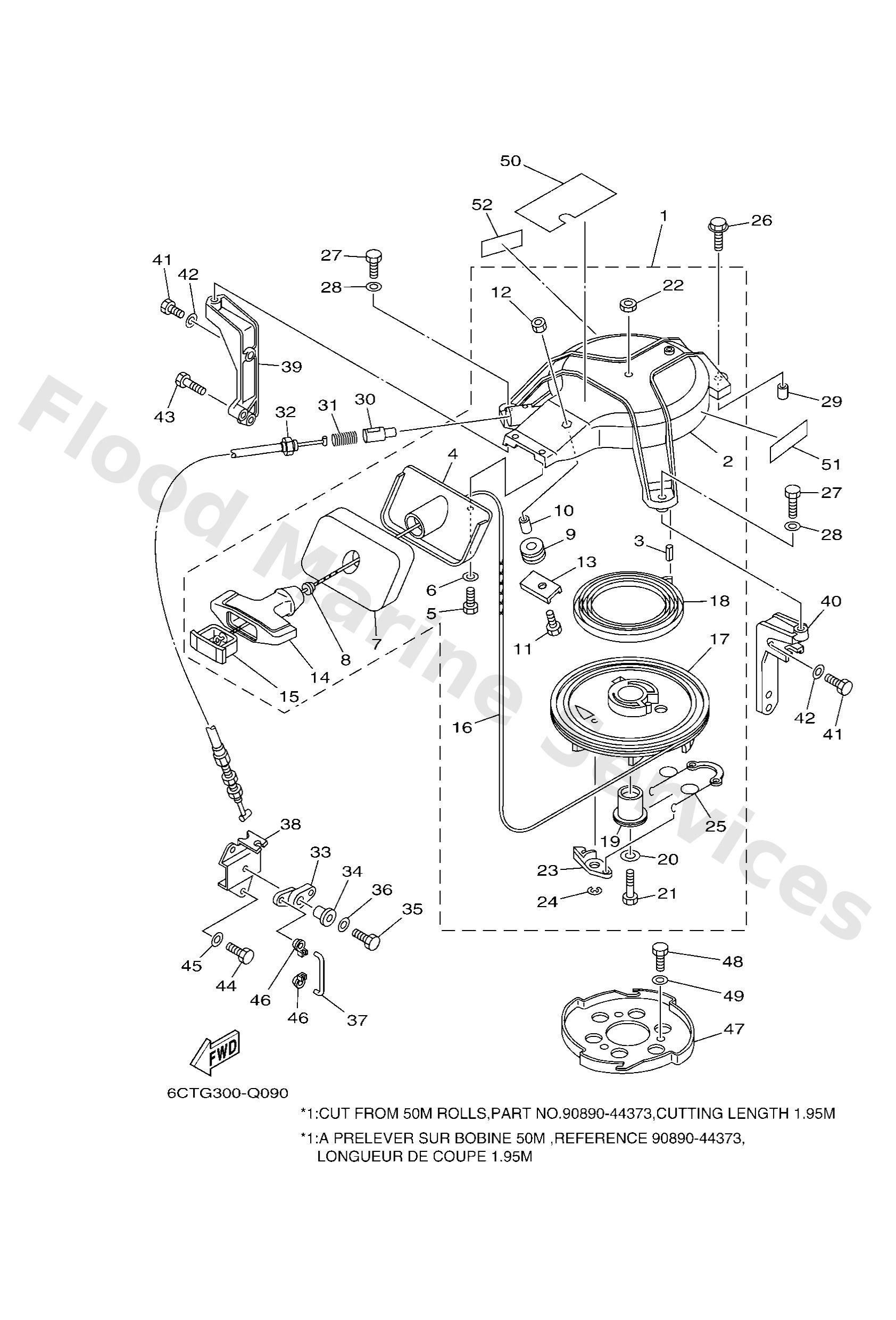

Starter assembly
Diagram Reference: 1
Case, starter
Diagram Reference: 2
Pin, spring (6f2)
Diagram Reference: 3
Guide, Rope
Diagram Reference: 4
Bolt, hexagon deep recess
Diagram Reference: 5
Washer, plain (646)
Diagram Reference: 6
Seal, rubber 2
Diagram Reference: 7
Damper
Diagram Reference: 8
Roller, wire
Diagram Reference: 9
Bushing 1
Diagram Reference: 10
Bolt
Diagram Reference: 11
Nut(661)
Diagram Reference: 12
Adaptor
Diagram Reference: 13
Handle, starter
Diagram Reference: 14
Cover
Diagram Reference: 15
item_description
Diagram Reference: 16
Drum, sheave
Diagram Reference: 17
Spring, spiral (677)
Diagram Reference: 18
Shaft
Diagram Reference: 19
Washer, plate
Diagram Reference: 20
Nut
Diagram Reference: 22
Pawl, drive
Diagram Reference: 23
Circlip (689)
Diagram Reference: 24
Spring, drive pawl
Diagram Reference: 25
Bolt(j52)
Diagram Reference: 26
Pin, dowel
Diagram Reference: 29
Plunger, starter stop
Diagram Reference: 30
Spring, comprreshion(656)
Diagram Reference: 31
Cable comp., starter stop
Diagram Reference: 32
Arm
Diagram Reference: 33
Coller (6a0)
Diagram Reference: 34
Link
Diagram Reference: 37
Stay 4
Diagram Reference: 38
Stay 1
Diagram Reference: 39
Stay 2
Diagram Reference: 40
Bolt(62y)
Diagram Reference: 41
Washer, plain (646)
Diagram Reference: 42
Bolt
Diagram Reference: 43
Joint, choke lever
Diagram Reference: 46
Pulley, starter
Diagram Reference: 47
Bolt(692)
Diagram Reference: 48
Washer, plain (663)
Diagram Reference: 49
Mark, caution
Diagram Reference: 50
Label, warning
Diagram Reference: 51
Label, warning
Diagram Reference: 52
