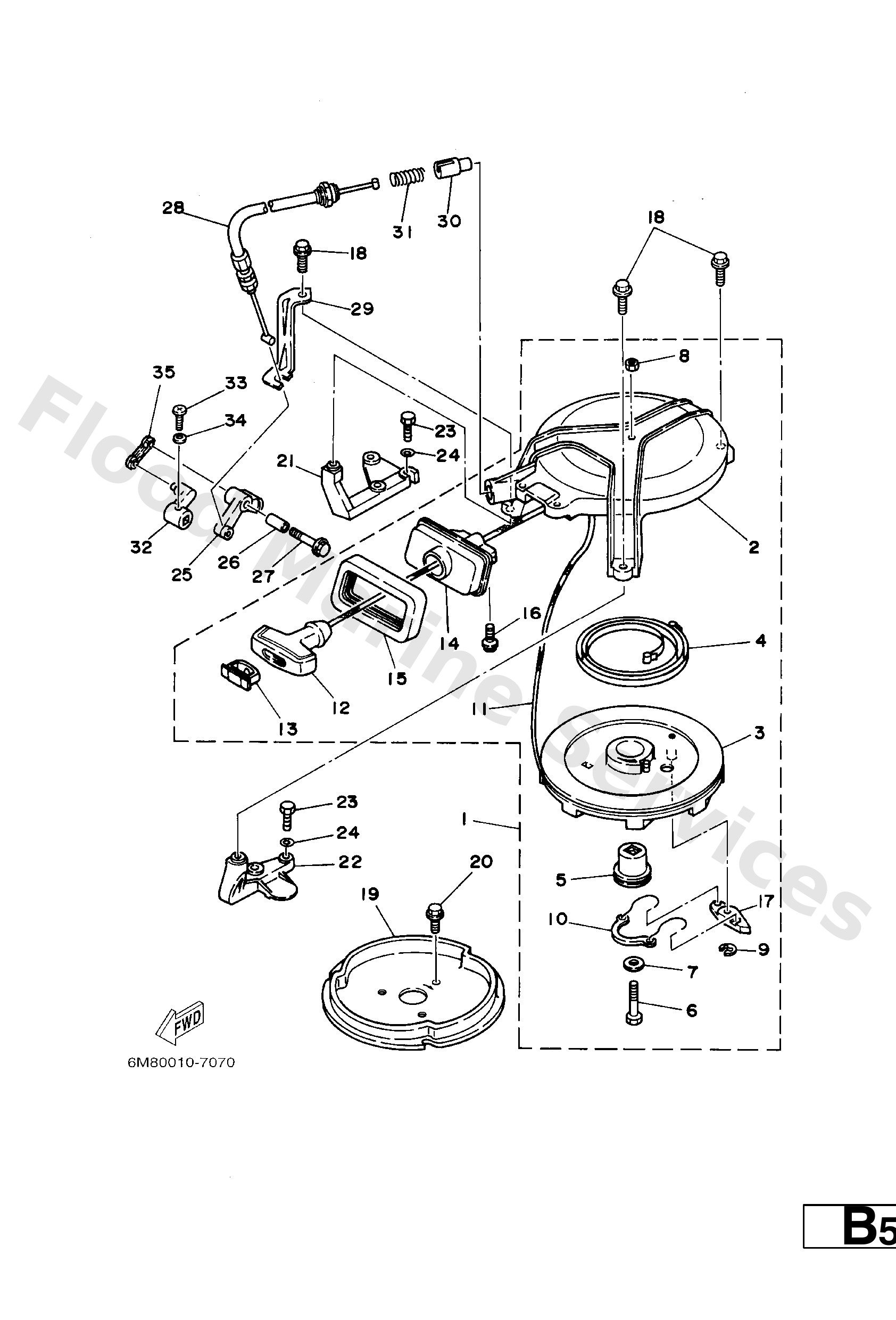

Diagram: STARTER

Diagram

Parts List

6M8−E5710−03

Starter assembly

Diagram Reference: 1

6N0−E5711−80−94

Case, Starter

Diagram Reference: 2

6M8−E5714−00

Drum, sheave

Diagram Reference: 3

90510−08M03

Spring, spiral (6g1)

Diagram Reference: 4

6G1−15717−00

Shaft, starter

Diagram Reference: 5

97013−06035

Bolt(3rv)

Diagram Reference: 6

90201−06M30

Washer, plate (6a1)

Diagram Reference: 7

95303−06600

Nut(661)

Diagram Reference: 8

93430−06M02

Circlip (689)

Diagram Reference: 9

6G1−15705−00

Spring, drive pawl

Diagram Reference: 10

*

item_description

Diagram Reference: 11

6G1−15755−00

Handle, starter

Diagram Reference: 12

6G1−15779−00

Cover

Diagram Reference: 13

6N0−E5758−00

Guide, rope

Diagram Reference: 14

6G1−15762−00

Seal 2

Diagram Reference: 15

95895−06016

Bolt, flange deep recess

Diagram Reference: 16

677−15741−01

Pawl, drive

Diagram Reference: 17

95895−06020

Bolt, flange(jk3)

Diagram Reference: 18

6N0−E5723−00−94

Pulley, starter

Diagram Reference: 19

90105−06M29

Bolt (6g1)

Diagram Reference: 20

6N0−E5771−00−94

Stay 1

Diagram Reference: 21

6N0−E5772−00−94

Stay 2

Diagram Reference: 22

97075−06020

Bolt(7u8)

Diagram Reference: 23

92995−06600

Washer, plain (646)

Diagram Reference: 24

6G1−15746−81

Arm

Diagram Reference: 25

6G1−15764−00

Collar 1

Diagram Reference: 26

95895−06025

Bolt, flange deep recess

Diagram Reference: 27

6N0−E5770−80

Cable comp., starter stop

Diagram Reference: 28

6G1−15774−81

Stay 4

Diagram Reference: 29

656−15748−00

Plunger, starter stop

Diagram Reference: 30

90501−10227

Spring, comprreshion(656)

Diagram Reference: 31

6G1−44125−80

Lever, shift rod 2

Diagram Reference: 32

97880−05016

Screw, pan head(6b0)

Diagram Reference: 33

92990−05600

Washer, plain (646)

Diagram Reference: 34

6G1−15747−80

Link

Diagram Reference: 35
