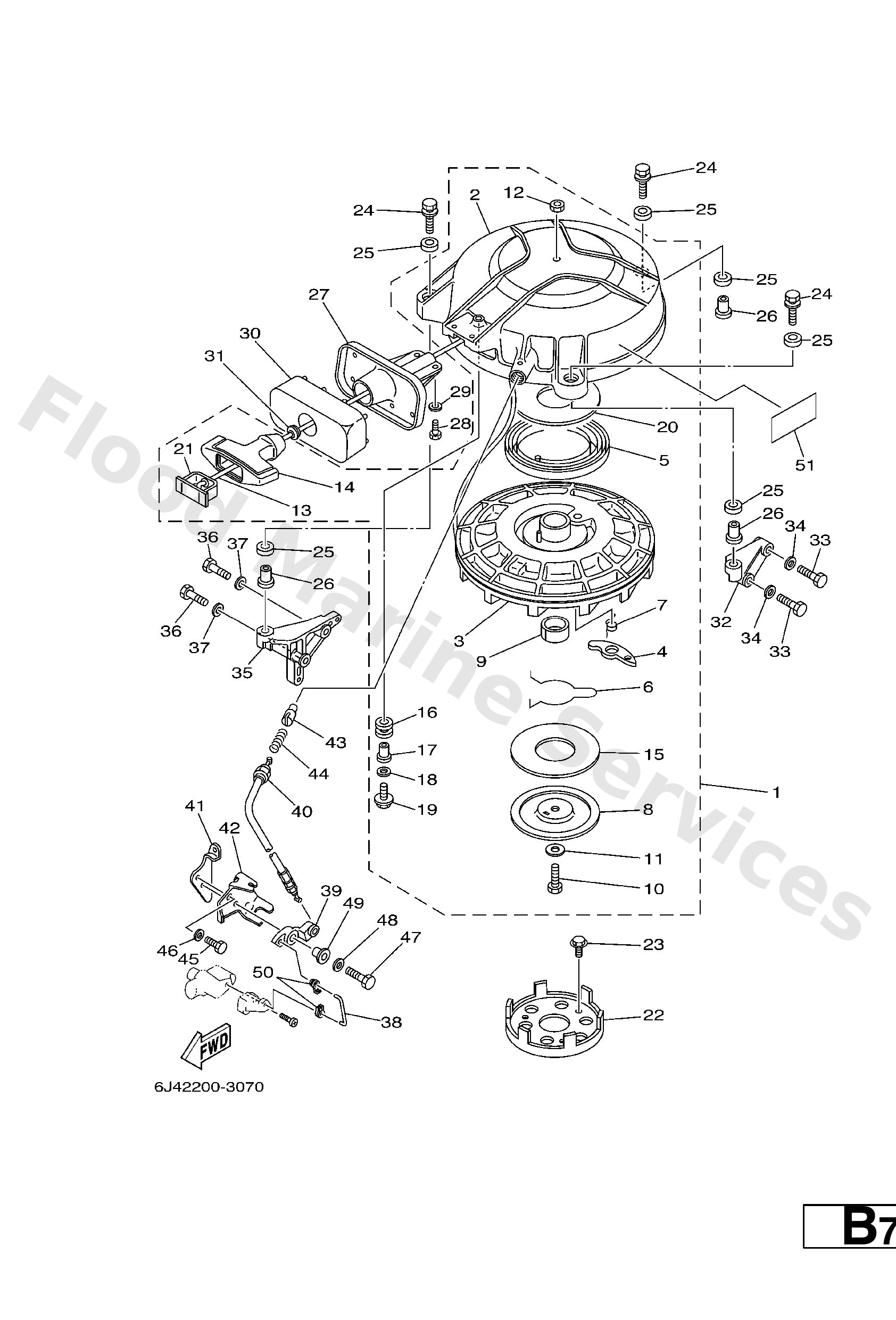

Diagram: STARTER

Diagram

Parts List

6F5−W1571−02
Starter assembly
Diagram Reference: 1
Get Part
6F5−15711−01
Case, Starter
Diagram Reference: 2
Get Part
6F5−15714−03
Drum, sheave
Diagram Reference: 3
Get Part
6F5−15741−01
Powl, drive
Diagram Reference: 4
Get Part
6F5−15713−00
Spring, starter
Diagram Reference: 5
Get Part
6F5−15715−00
Spring, drive plate
Diagram Reference: 6
Get Part
6F5−15734−01
Spring, return
Diagram Reference: 7
Get Part
6F5−15716−01
Drive, plate
Diagram Reference: 8
Get Part
6F5−15754−00
Bushing 2
Diagram Reference: 9
Get Part
97013−08030
Bolt
Diagram Reference: 10
Get Part
6F5−15726−01
Washer, lock
Diagram Reference: 11
Get Part
95303−08700
Nut(661)
Diagram Reference: 12
Get Part
*
item_description
Diagram Reference: 13
Get Part
689−15755−01
Handle, starter
Diagram Reference: 14
Get Part
6F5−15764−00
Collar
Diagram Reference: 15
Get Part
6F5−15752−00
Roller, wire
Diagram Reference: 16
Get Part
6F5−15753−00
Bushing 1
Diagram Reference: 17
Get Part
6F5−15791−00
Washer, lock
Diagram Reference: 18
Get Part
6F5−15768−00
Bolt
Diagram Reference: 19
Get Part
6F5−15739−00
Washer, thrust 2
Diagram Reference: 20
Get Part
6F5−15779−02
Cover
Diagram Reference: 21
Get Part
6F5−15723−01
Pully, starter
Diagram Reference: 22
Get Part
90105−08M10
Bolt (6a0)
Diagram Reference: 23
Get Part
90119−08M10
Bolt, with washer
Diagram Reference: 24
Get Part
90385−12M04
Bushing (6f5)
Diagram Reference: 25
Get Part
90387−08M05
Collar (663)
Diagram Reference: 26
Get Part
6A0−15758−01−94
Guide, rope
Diagram Reference: 27
Get Part
97095−06016
Bolt, hexagon deep recess
Diagram Reference: 28
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 29
Get Part
6A0−15762−00
Seal, rubber 2
Diagram Reference: 30
Get Part
6A0−15762−10 (40GWH−FOR YEMEN)
Seal, Rubber 2
Diagram Reference: 30
Get Part
6A0−15789−00
Damper
Diagram Reference: 31
Get Part
6F5−15771−00−94
Stay 1
Diagram Reference: 32
Get Part
97013−08035
Bolt
Diagram Reference: 33
Get Part
92903−08600
Washer, plain (663)
Diagram Reference: 34
Get Part
6F5−15772−00−94
Stay 2
Diagram Reference: 35
Get Part
6F5−15747−00
Link
Diagram Reference: 38
Get Part
6F5−15746−00
Arm
Diagram Reference: 39
Get Part
6F5−15770−00
Wire comp.,starter stop
Diagram Reference: 40
Get Part
6F5−15773−00
Stay 3
Diagram Reference: 41
Get Part
6F5−15774−00
Stay 4
Diagram Reference: 42
Get Part
656−15748−00
Plunger, starter stop
Diagram Reference: 43
Get Part
90501−10227
Spring, comprreshion(656)
Diagram Reference: 44
Get Part
97095−06030
Bolt(jf7)
Diagram Reference: 47
Get Part
90387−06M29
Coller (6a0)
Diagram Reference: 49
Get Part
661−41262−02
Joint, choke lever
Diagram Reference: 50
Get Part
6F6−14488−00
Label, Caution
Diagram Reference: 51
Get Part
