F2.5AMH (2003)
STARTER

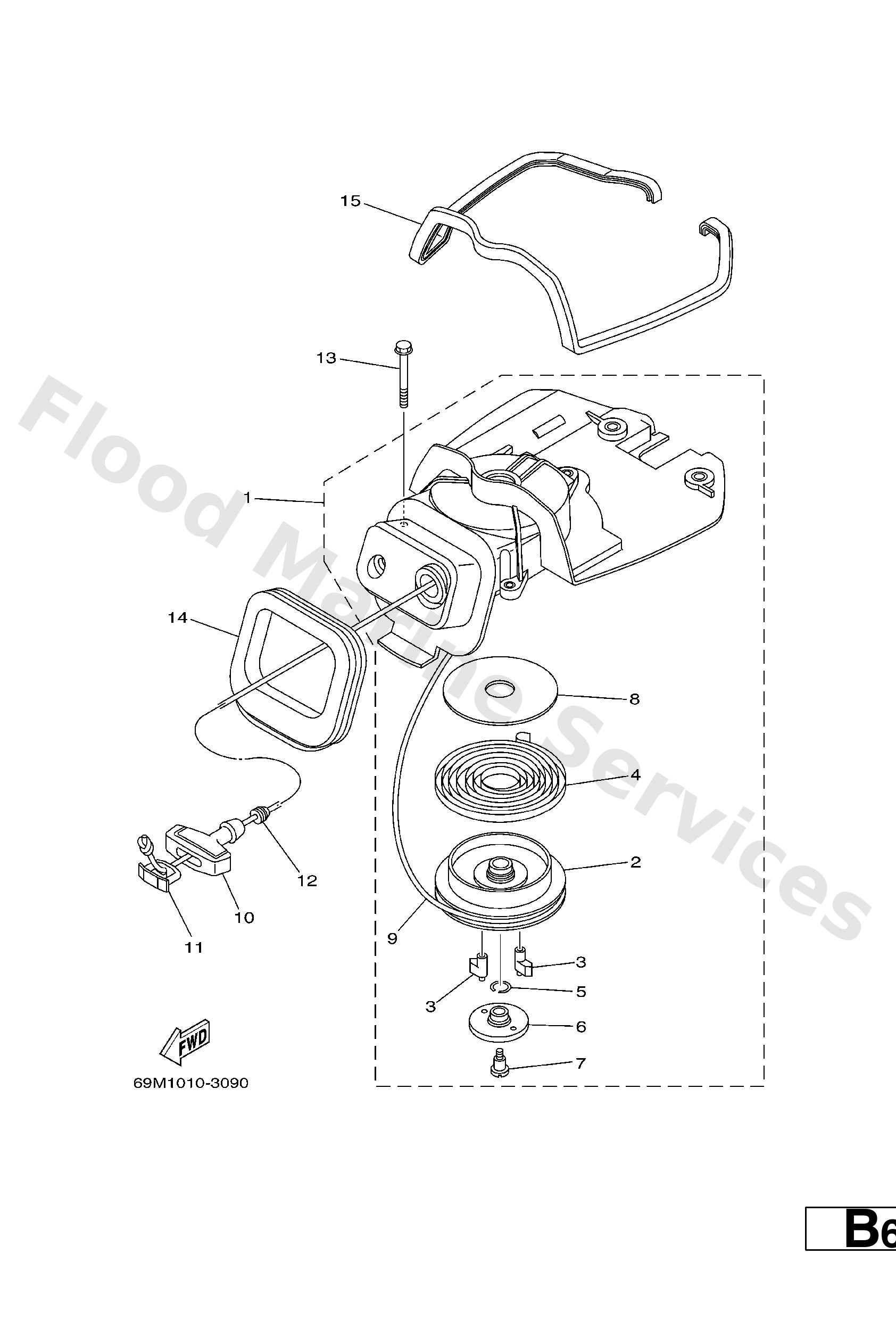

Diagram: STARTER
Parts List
Reference
Description
Price
1
69M−15710−00
Starter assembly
Loading…
↗
2
69M−15714−00
Drum, sheave
Loading…
↗
3
69M−15741−00
Pawl, drive
Loading…
↗
4
67D−15713−00
Spring, starter
Loading…
↗
5
67D−15705−00
Spring, drive pawl
Loading…
↗
6
69M−15735−00
Guide, cam
Loading…
↗
7
69M−15793−00
Screw
Loading…
↗
8
69M−15739−00
Washer, thrust
Loading…
↗
9
69M−15751−00
Wire, starter (1.5m)
Loading…
↗
10
6G1−15755−00
Handle, starter
Loading…
↗
11
6G1−15779−00
Cover
Loading…
↗
12
69M−E5789−00
Damper
Loading…
↗
13
97595−06560
Bolt, hexagon w/w deep recess
Loading…
↗
14
69M−15762−00
Seal, rubber 2
Loading…
↗
15
69M−24182−00
Damper, locating 2
Loading…
↗
