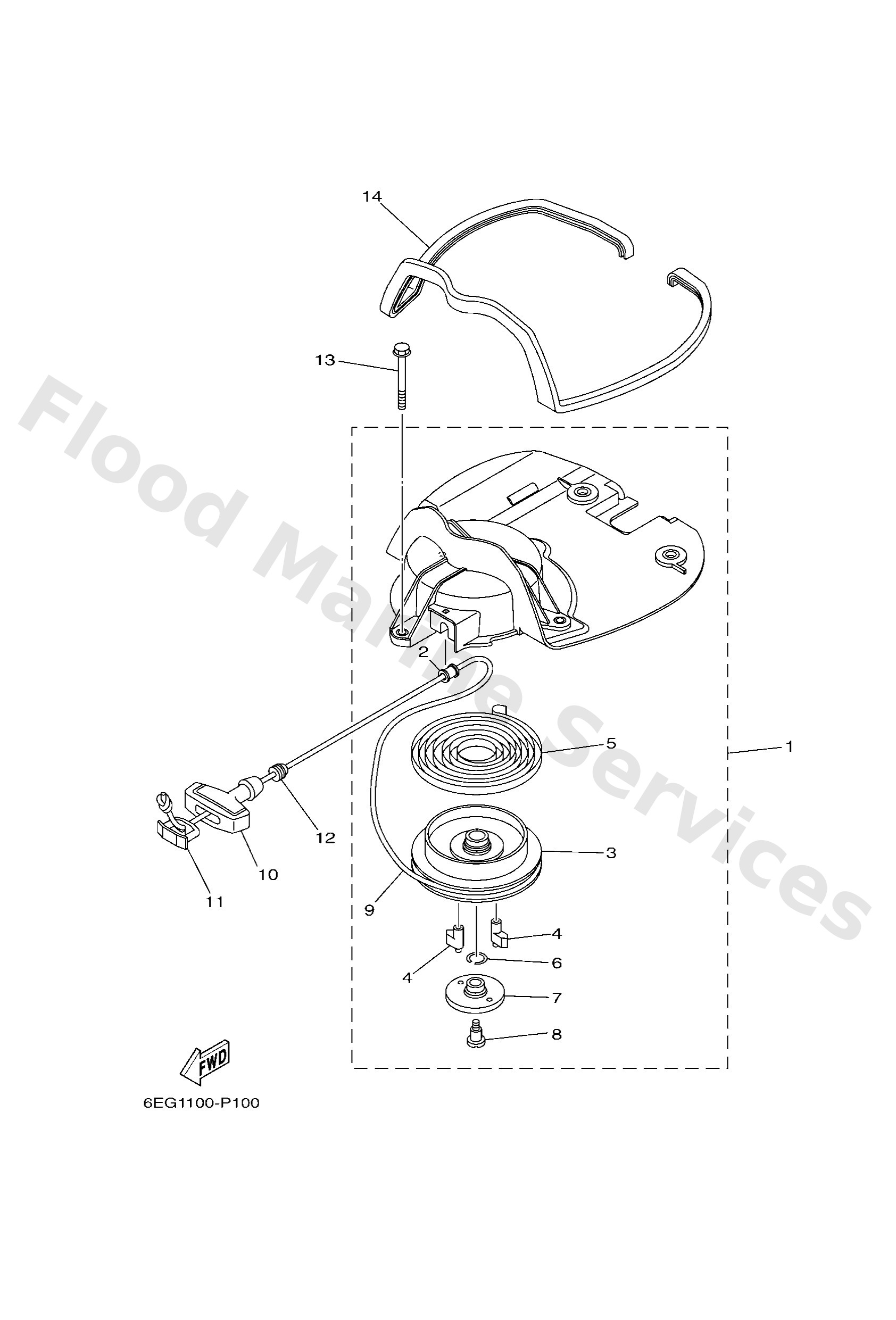

Diagram: STARTER

Diagram

Parts List

6EGE571000
Starter assembly
Diagram Reference: 1
Get Part
63V1576400
Collar 1
Diagram Reference: 2
Get Part
69ME571400
Drum, sheave
Diagram Reference: 3
Get Part
69M1574100
Pawl, drive
Diagram Reference: 4
Get Part
67D1571300
Spring, starter
Diagram Reference: 5
Get Part
6BX1570500
Spring, drive pawl
Diagram Reference: 6
Get Part
69M1573500
Guide, cam
Diagram Reference: 7
Get Part
69M1579300
Screw
Diagram Reference: 8
Get Part
6EGE575100
Wire, starter (l:1
Diagram Reference: 9
Get Part
6G11575500
Handle, starter
Diagram Reference: 10
Get Part
6G11577900
Cover
Diagram Reference: 11
Get Part
6EGE578900
Damper
Diagram Reference: 12
Get Part
9759506560
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
6EGF418200
Damper, locating 2
Diagram Reference: 14
