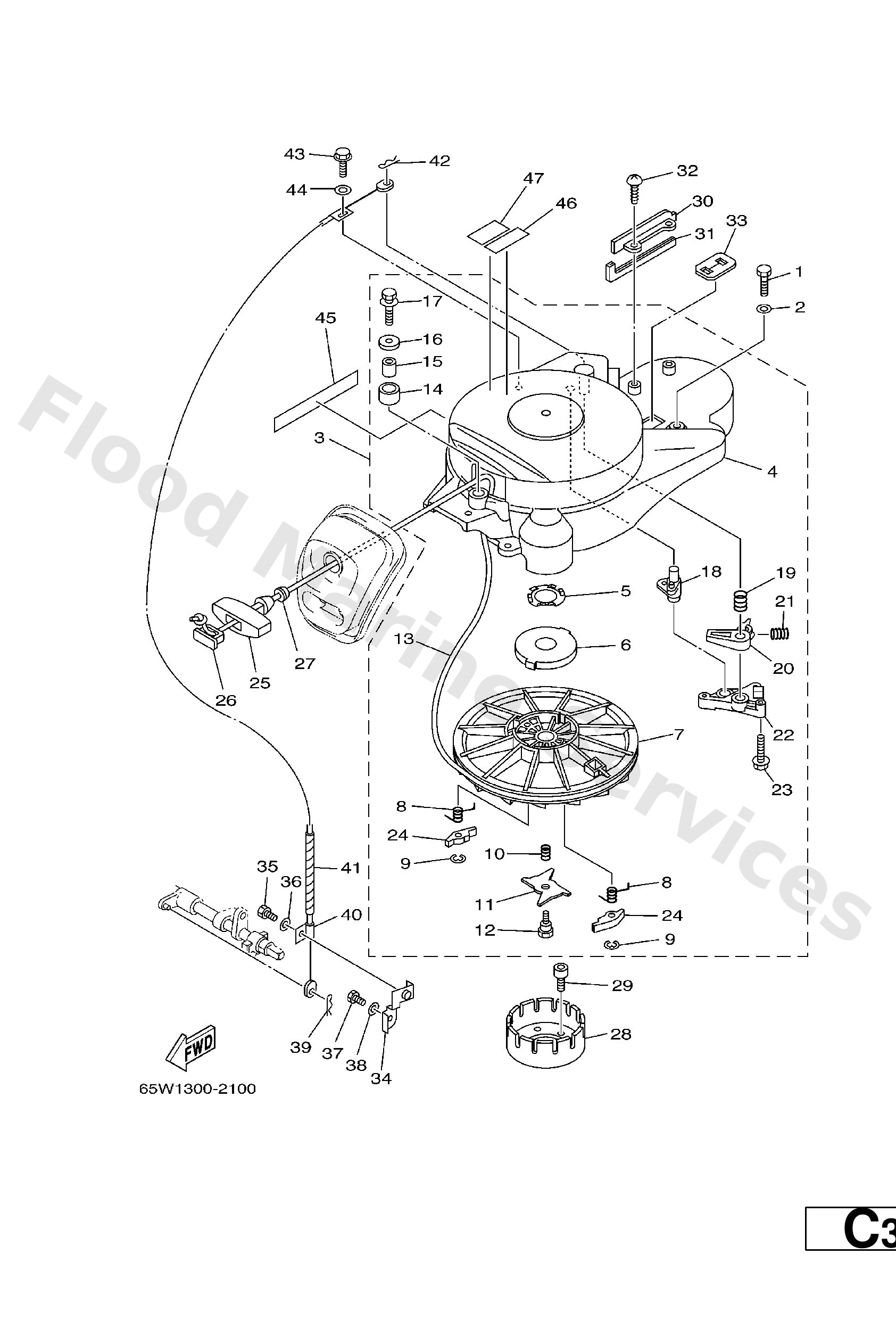

Diagram: STARTER

Diagram

Parts List

9709506025
Bolt
Diagram Reference: 1
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 2
Get Part
65WW157101
Starter assembly
Diagram Reference: 3
Get Part
65W1571101
Case, Starter
Diagram Reference: 4
Get Part
65W1573200
Washer, wave 1
Diagram Reference: 5
Get Part
65W1571300
Spring, starter
Diagram Reference: 6
Get Part
65W1571401
Drum, sheave
Diagram Reference: 7
Get Part
65W1573400
Spring, Return
Diagram Reference: 8
Get Part
65W1574400
Circlip
Diagram Reference: 9
Get Part
65W1571500
Spring, friction
Diagram Reference: 10
Get Part
65W1571600
Plate, drive
Diagram Reference: 11
Get Part
65W1579300
Screw
Diagram Reference: 12
Get Part
*
item_description
Diagram Reference: 13
Get Part
65W1575200
Roller, Wire
Diagram Reference: 14
Get Part
65W1575300
Bush
Diagram Reference: 15
Get Part
65W1579100
Washer, Lock
Diagram Reference: 16
Get Part
65W1548100
Bolt 1
Diagram Reference: 17
Get Part
65W1573501
Guide, cam
Diagram Reference: 18
Get Part
65W1576701
Spring
Diagram Reference: 19
Get Part
65W1579400
Stopper
Diagram Reference: 20
Get Part
65W1578400
Spring, return
Diagram Reference: 21
Get Part
65W1541400
Cover 1
Diagram Reference: 22
Get Part
65W1576800
Bolt
Diagram Reference: 23
Get Part
65W1574110
Pawl, drive
Diagram Reference: 24
Get Part
6891575501
Handle, starter
Diagram Reference: 25
Get Part
6F51577902
Cover
Diagram Reference: 26
Get Part
6A01578900
Damper
Diagram Reference: 27
Get Part
65W1572310
Pulley, starter
Diagram Reference: 28
Get Part
9011008M03
Bolt, Hexagon Socket Head
Diagram Reference: 29
Get Part
65W1564500
Shim, Kick Shaft
Diagram Reference: 30
Get Part
65W1576100
Seal, Rubber 1
Diagram Reference: 31
Get Part
9778060520
Screw, tapping(6k8)
Diagram Reference: 32
Get Part
65W8163910
Plate, Armature Fitting
Diagram Reference: 33
Get Part
65W1577400
Stay 4
Diagram Reference: 34
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 35
Get Part
9046818008
Clip 620436610000
Diagram Reference: 39
Get Part
65W1577000
Cable Comp., Starter Stop
Diagram Reference: 40
Get Part
9044606M90
Hose
Diagram Reference: 41
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 42
Get Part
65W1548200
Bolt 2
Diagram Reference: 43
Get Part
65W1572600
Washer, flat
Diagram Reference: 44
Get Part
65W1343760
Mark, caution
Diagram Reference: 45
Get Part
6A18362541
Mark 5
Diagram Reference: 46
Get Part
6A18362551
-
Diagram Reference: 47
Get Part
