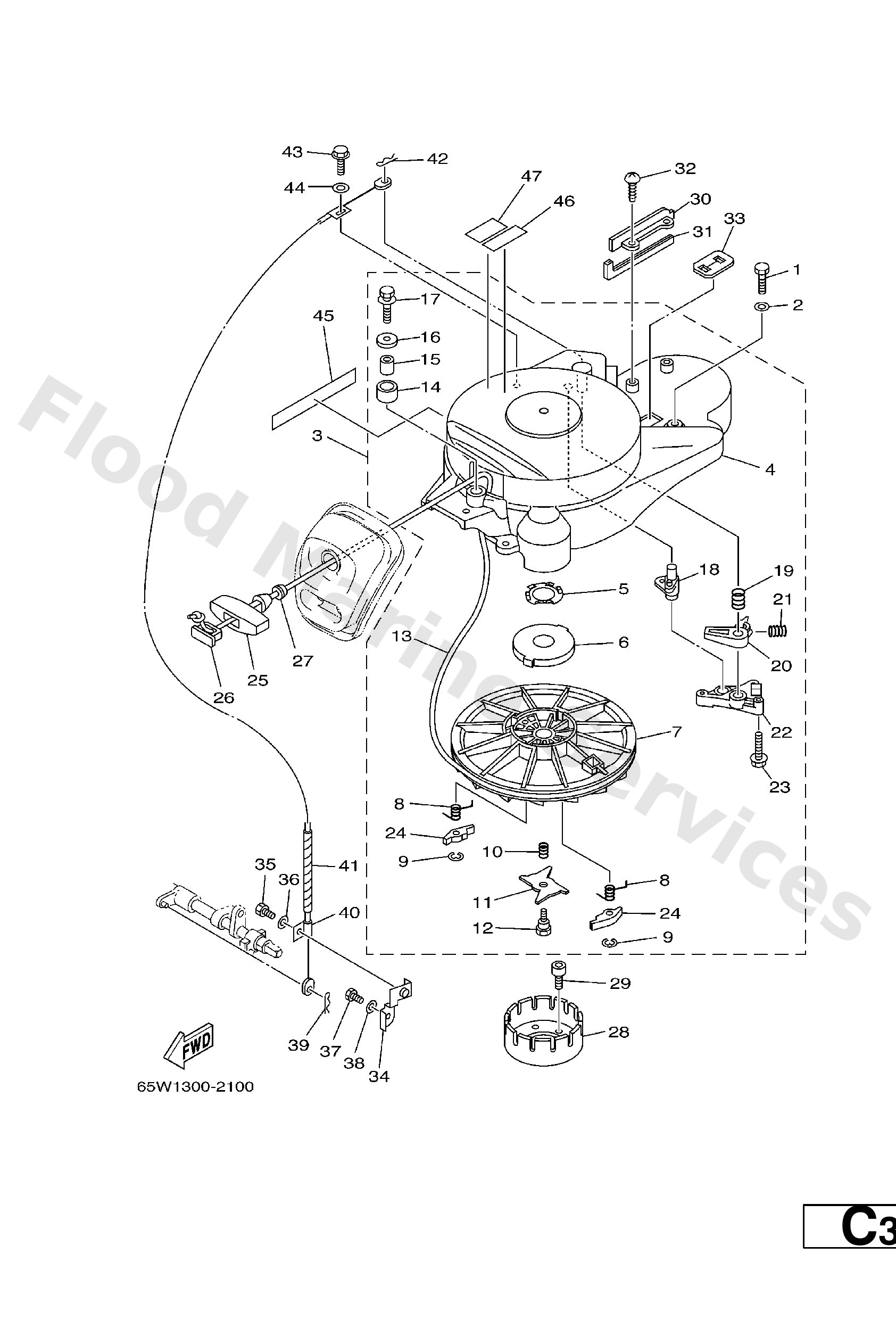

Diagram: STARTER

Diagram

Parts List

97095−06025

Bolt

Diagram Reference: 1

92995−06600

Washer, plain (646)

Diagram Reference: 2

65W−W1571−01

Starter assembly

Diagram Reference: 3

65W−15711−01

Case, Starter

Diagram Reference: 4

65W−15732−00

Washer, wave 1

Diagram Reference: 5

65W−15713−00

Spring, starter

Diagram Reference: 6

65W−15714−01

Drum, sheave

Diagram Reference: 7

65W−15734−00

Spring, Return

Diagram Reference: 8

65W−15744−00

Circlip

Diagram Reference: 9

65W−15715−00

Spring, friction

Diagram Reference: 10

65W−15716−00

Plate, drive

Diagram Reference: 11

65W−15793−00

Screw

Diagram Reference: 12

*

item_description

Diagram Reference: 13

65W−15752−00

Roller, Wire

Diagram Reference: 14

65W−15753−00

Bush

Diagram Reference: 15

65W−15791−00

Washer, Lock

Diagram Reference: 16

65W−15481−00

Bolt 1

Diagram Reference: 17

65W−15735−01

Guide, cam

Diagram Reference: 18

65W−15767−01

Spring

Diagram Reference: 19

65W−15794−00

Stopper

Diagram Reference: 20

65W−15784−00

Spring, return

Diagram Reference: 21

65W−15414−00

Cover 1

Diagram Reference: 22

65W−15768−00

Bolt

Diagram Reference: 23

65W−15741−10

Pawl, drive

Diagram Reference: 24

689−15755−01

Handle, starter

Diagram Reference: 25

6F5−15779−02

Cover

Diagram Reference: 26

6A0−15789−00

Damper

Diagram Reference: 27

65W−15723−10

Pulley, starter

Diagram Reference: 28

90110−08M03

Bolt, Hexagon Socket Head

Diagram Reference: 29

65W−15645−00

Shim, Kick Shaft

Diagram Reference: 30

65W−15761−00

Seal, Rubber 1

Diagram Reference: 31

97780−60520

Screw, tapping(6k8)

Diagram Reference: 32

65W−81639−10

10 −

Diagram Reference: 33

65W−15774−00

Stay 4

Diagram Reference: 34

97095−06012

Bolt(gh1)

Diagram Reference: 35

90468−18008

Clip 620436610000

Diagram Reference: 39

65W−15770−00

Cable Comp., Starter Stop

Diagram Reference: 40

90446−06M90

Hose

Diagram Reference: 41

90468−10005

Pin, hair 6264123500

Diagram Reference: 42

65W−15482−00

Bolt 2

Diagram Reference: 43

65W−15726−00

Washer, flat

Diagram Reference: 44

65W−13437−61

Mark, Caution

Diagram Reference: 45

6A1−83625−41

Mark 5

Diagram Reference: 46

6A1−83625−51

Mark 5

Diagram Reference: 47
