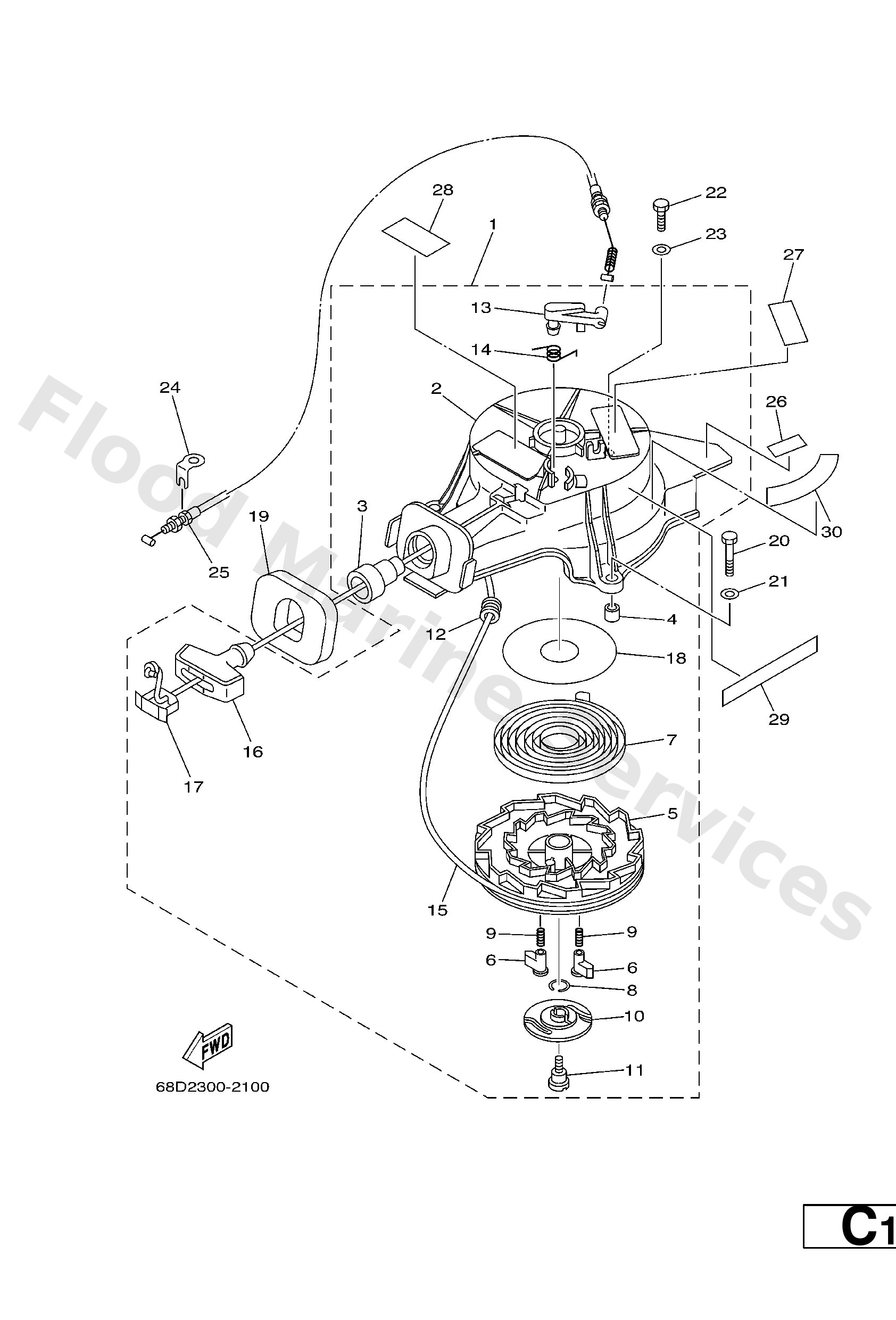

Diagram: STARTER

Diagram

Parts List

67D−15710−00

Starter assembly

Diagram Reference: 1

67D−15711−00

Case, Starter

Diagram Reference: 2

63V−15795−01

Guide, rope

Diagram Reference: 3

67D−15764−00

Collar 1

Diagram Reference: 4

67D−15714−00

Drum, sheave

Diagram Reference: 5

67D−15741−00

Pawl, drive

Diagram Reference: 6

67D−15713−00

Spring, starter

Diagram Reference: 7

67D−15705−00

Spring, drive pawl

Diagram Reference: 8

67D−15767−00

Spring

Diagram Reference: 9

67D−15735−00

Guide, cam

Diagram Reference: 10

67D−15793−00

Screw

Diagram Reference: 11

63V−15764−00

Collar 1

Diagram Reference: 12

67D−15794−00

Stopper

Diagram Reference: 13

67D−15734−00

Spring, return

Diagram Reference: 14

*

item_description

Diagram Reference: 15

6G1−15755−00

Handle, starter

Diagram Reference: 16

6G1−15779−00

Cover

Diagram Reference: 17

67D−15739−00

Washer, thrust

Diagram Reference: 18

67D−15762−00

Seal, Rubber 2

Diagram Reference: 19

97095−06035

Bolt(j52)

Diagram Reference: 20

92995−06600

Washer, plain (646)

Diagram Reference: 21

97095−06020

Bolt(7u8)

Diagram Reference: 22

67D−15772−00

Stay 2

Diagram Reference: 24

67D−15770−00

Cable comp., starter stop

Diagram Reference: 25

67D−42791−10

Mark 1

Diagram Reference: 26

6A1−83625−41

Mark 5

Diagram Reference: 27

6A1−83625−51

15 −

Diagram Reference: 28

68D−13437−60

Mark, Caution

Diagram Reference: 29

67D−14427−60

Label, Instruction

Diagram Reference: 30
