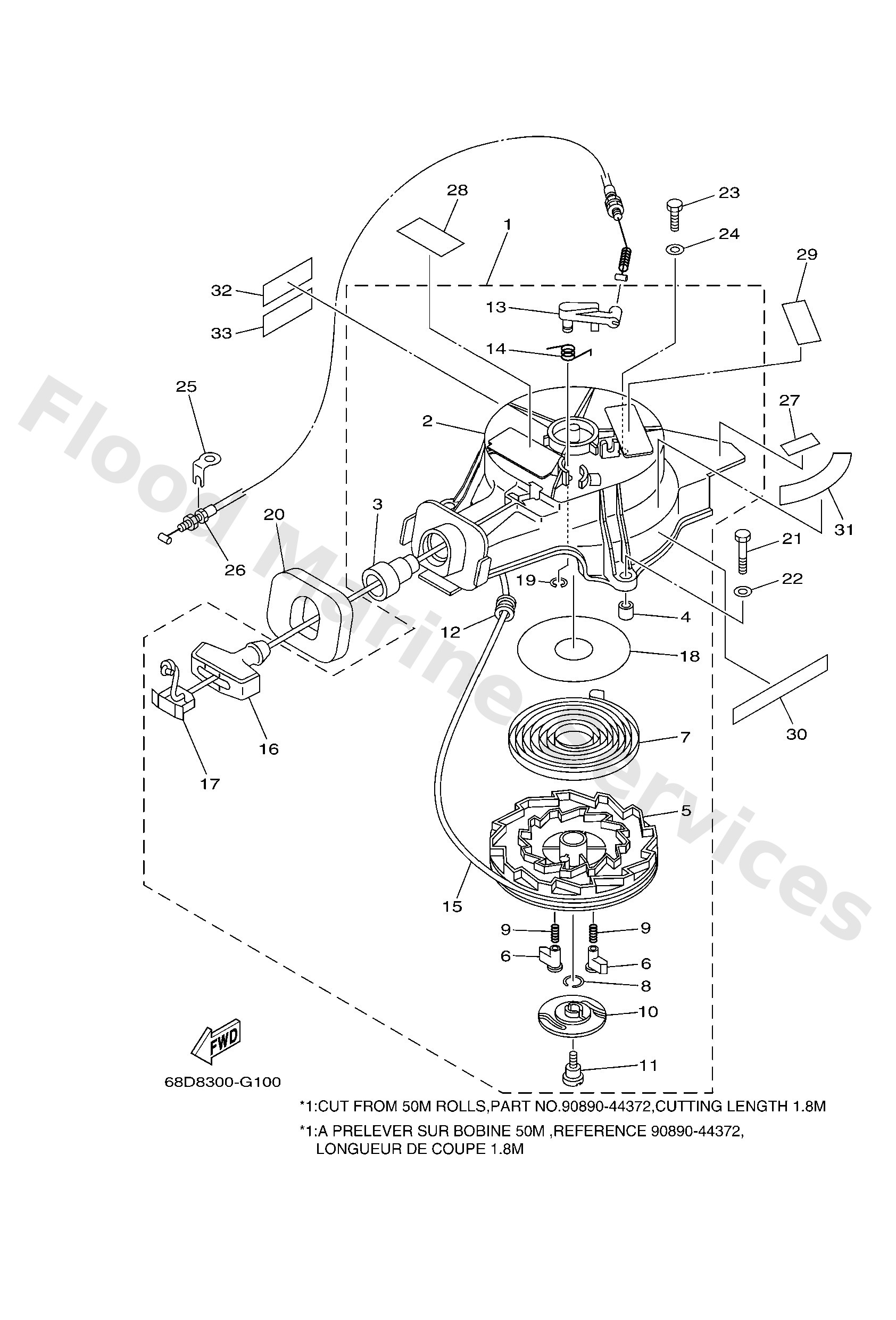

Diagram: STARTER

Diagram

Parts List

67D1571002
Starter assembly
Diagram Reference: 1
Get Part
67D1571101
Case, starter
Diagram Reference: 2
Get Part
63V1579501
Guide, rope
Diagram Reference: 3
Get Part
67D1576400
Collar 1
Diagram Reference: 4
Get Part
67D1571400
Drum, sheave
Diagram Reference: 5
Get Part
67D1574100
Pawl, drive
Diagram Reference: 6
Get Part
67D1571300
Spring, starter
Diagram Reference: 7
Get Part
67D1570500
Spring, drive pawl
Diagram Reference: 8
Get Part
67D1576700
Spring
Diagram Reference: 9
Get Part
67D1573500
Guide, cam
Diagram Reference: 10
Get Part
67D1579300
Screw
Diagram Reference: 11
Get Part
63V1576400
Collar 1
Diagram Reference: 12
Get Part
67D1579401
Stopper
Diagram Reference: 13
Get Part
67D1573400
Spring, return
Diagram Reference: 14
Get Part
* (*1)
item_description
Diagram Reference: 15
Get Part
6G11575500
Handle, starter
Diagram Reference: 16
Get Part
6G11577900
Cover
Diagram Reference: 17
Get Part
67D1573900
Washer, thrust
Diagram Reference: 18
Get Part
67D1574400
Circlip
Diagram Reference: 19
Get Part
67D1576200
Seal, Rubber 2
Diagram Reference: 20
Get Part
9709506035
Bolt(j52)
Diagram Reference: 21
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 22
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 23
Get Part
67D1577200
Stay 2
Diagram Reference: 25
Get Part
67D1577000
Cable comp., starter stop
Diagram Reference: 26
Get Part
67D4279110
Mark 1
Diagram Reference: 27
Get Part
6AH8199540
Label, warning
Diagram Reference: 28
Get Part
6AH8199550
Label, warning
Diagram Reference: 29
Get Part
68DE343761
Mark, Caution
Diagram Reference: 30
Get Part
68DE442761
Label, Instruction
Diagram Reference: 31
Get Part
6AH8199440
Label, safety
Diagram Reference: 32
Get Part
6AH8199450
Label, safety
Diagram Reference: 33
Get Part
