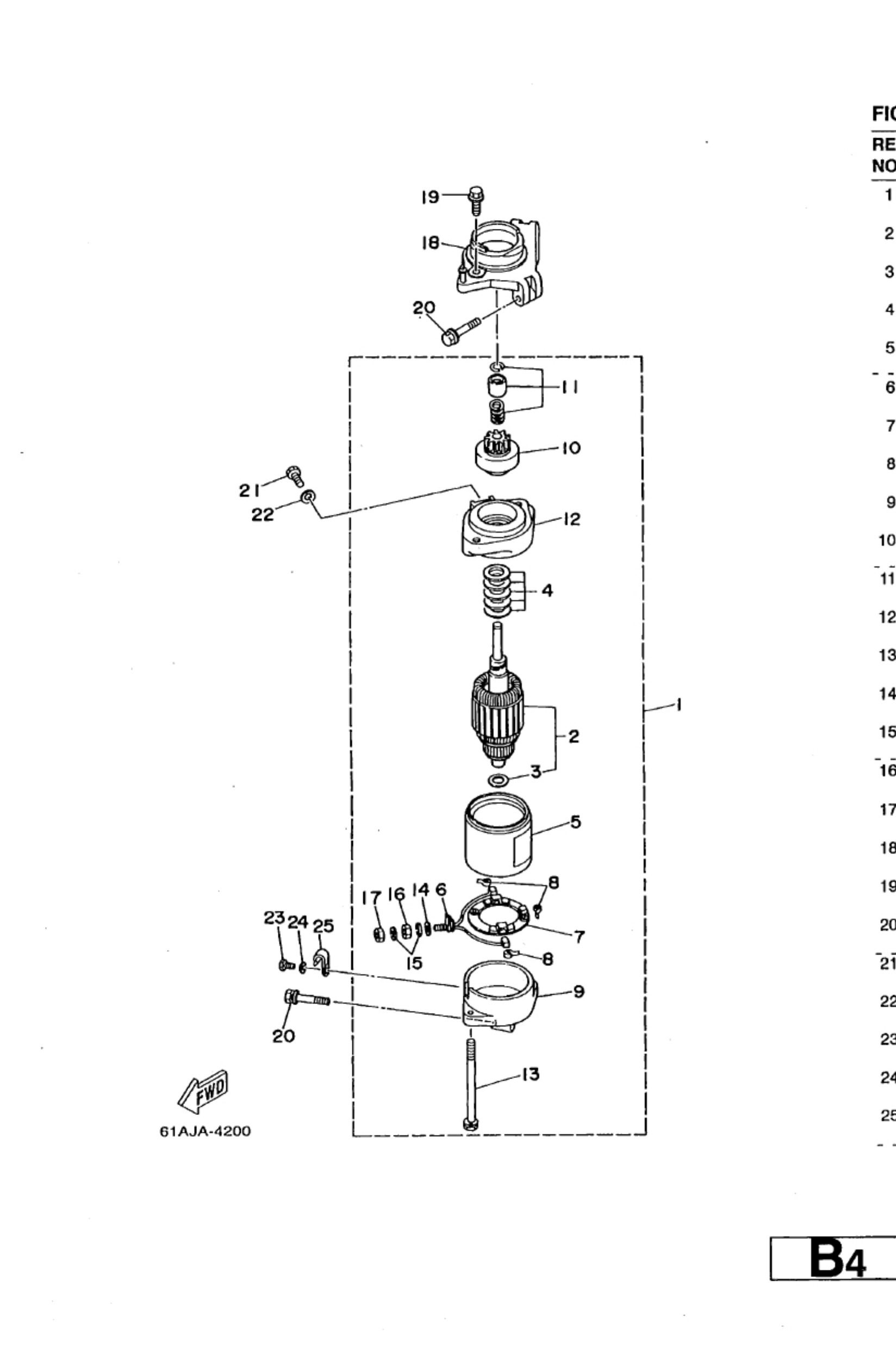

Diagram: STARTING

Diagram

Parts List

61A8180001
Starting motor assembly
Diagram Reference: 1
Get Part
61A8185001
Armature assembly
Diagram Reference: 2
Get Part
61A8182400
Washer 2
Diagram Reference: 3
Get Part
61A8180900
Washer kit
Diagram Reference: 4
Get Part
6K78181010
Stator assembly
Diagram Reference: 5
Get Part
6K78180110
Brush Set
Diagram Reference: 6
Get Part
61A8184000
Brush holder assembly
Diagram Reference: 7
Get Part
6E58181310
Spring, Brush
Diagram Reference: 8
Get Part
61A8182000
Rear Bracket assembly
Diagram Reference: 9
Get Part
61A8180700
Gear assembly, Starting Motor
Diagram Reference: 10
Get Part
61A8183000
Front Bracket assembly
Diagram Reference: 12
Get Part
6K78182610
Bolt
Diagram Reference: 13
Get Part
6E58182E10
Washer, spring
Diagram Reference: 14
Get Part
6E58182K10
Nut
Diagram Reference: 17
Get Part
61A818220094
Bracket, starting motor
Diagram Reference: 18
Get Part
9011908M76
Bolt, with washer(6e5)
Diagram Reference: 19
Get Part
9011908M77
Bolt, with washer(6e5)
Diagram Reference: 20
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 22
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 23
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 24
Get Part
9046508M07
Clamp (1e6)
Diagram Reference: 25
Get Part
61AJA4200
Bride
Diagram Reference: 25
