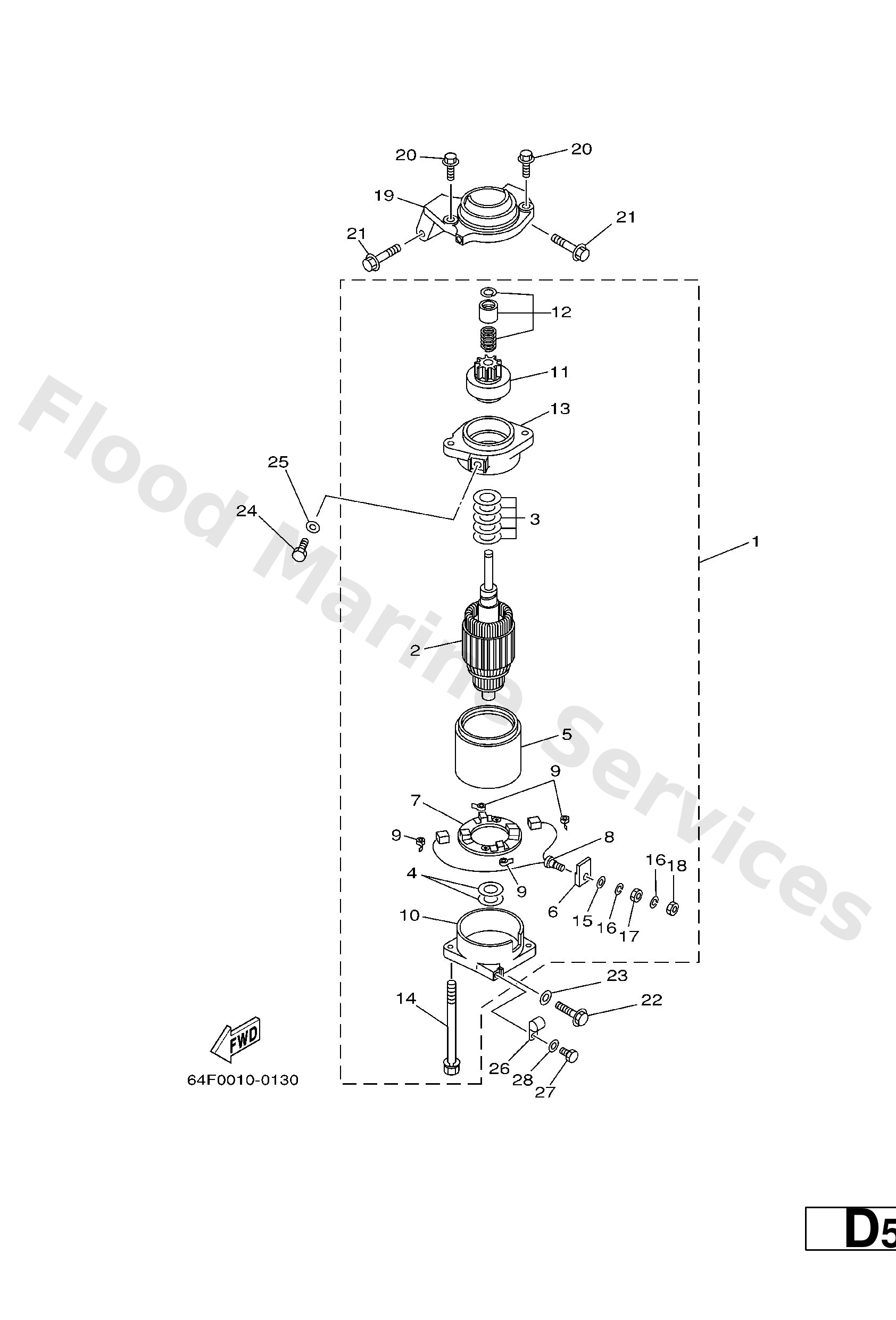

Diagram: STARTING MOTOR

Diagram

Parts List

6N7--81800--10
Starting motor assembly
Diagram Reference: 1
Get Part
6N7--81850--10
Armature assembly
Diagram Reference: 2
Get Part
61A--81809--00
Washer kit
Diagram Reference: 3
Get Part
61A--81824--00
Washer 2
Diagram Reference: 4
Get Part
6N7--81810--00
Stator assembly
Diagram Reference: 5
Get Part
6K7--8182G--10
Bush, terminal
Diagram Reference: 6
Get Part
6N7--81840--00
Brush holder assembly
Diagram Reference: 7
Get Part
6N7--81801--00
Brush set
Diagram Reference: 8
Get Part
6N7--81813--00
Spring, brush
Diagram Reference: 9
Get Part
6N7--81820--10
Rear bracket assembly
Diagram Reference: 10
Get Part
6N7--81807--00
Gear assembly, starting motor
Diagram Reference: 11
Get Part
6N7--81857--00
Pinion stopper set
Diagram Reference: 12
Get Part
6N7--81830--00
Front bracket assembly
Diagram Reference: 13
Get Part
6K7--81826--10
Bolt
Diagram Reference: 14
Get Part
6E5--8182E--10
Washer, spring
Diagram Reference: 15
Get Part
6E5--8182F--10
Washer,plain
Diagram Reference: 16
Get Part
6E5--8182A--10
Nut
Diagram Reference: 17
Get Part
6E5--8182K--10
Nut
Diagram Reference: 18
Get Part
6K7--81822--00--94
Bracket, starting motor
Diagram Reference: 19
Get Part
90119--08M76
Bolt, with washer(6e5)
Diagram Reference: 20
Get Part
90119--08M77
Bolt, with washer(6e5)
Diagram Reference: 21
Get Part
90119--08M57
Bolt, with washer
Diagram Reference: 22
Get Part
92990--08600
Washer, plain (663)
Diagram Reference: 23
Get Part
97095--08016
Bolt, hexagon deep recess
Diagram Reference: 24
Get Part
92995--08600
Washer, plain (663)
Diagram Reference: 25
Get Part
90465--06M86
Clamp
Diagram Reference: 26
Get Part
97095--06012
Bolt(gh1)
Diagram Reference: 27
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 28
Get Part
