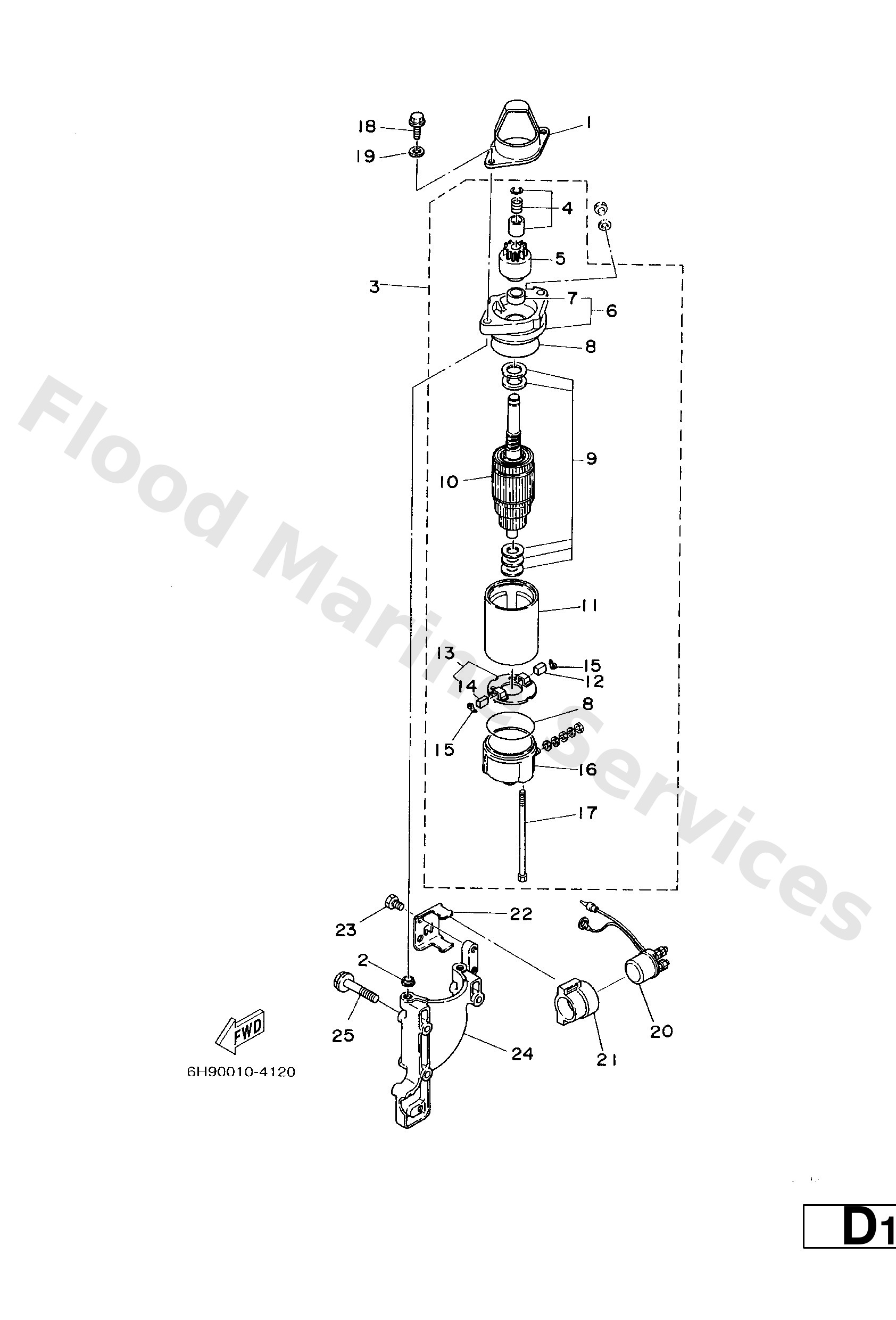

Diagram: STARTING MOTOR
Parts List
Cover
Diagram Reference: 1
Collar(6j4)
Diagram Reference: 2
Starting motor assembly
Diagram Reference: 3
Pinion stopper set
Diagram Reference: 4
Pinion assembly
Diagram Reference: 5
Front cover assembly
Diagram Reference: 6
Metal, front
Diagram Reference: 7
O-ring
Diagram Reference: 8
Washer kit
Diagram Reference: 9
Armature assembly
Diagram Reference: 10
Stator ass'y
Diagram Reference: 11
Brush 1
Diagram Reference: 12
Brush holder assembly
Diagram Reference: 13
Brush 2
Diagram Reference: 14
Spring, brush
Diagram Reference: 15
Rear cover ass'y
Diagram Reference: 16
Bolt
Diagram Reference: 17
Bolt, washer based(6j4)
Diagram Reference: 18
Washer, plain (663)
Diagram Reference: 19
Starter relay
Diagram Reference: 20
Holder, relay
Diagram Reference: 21
Plate, switch fitting
Diagram Reference: 22
Bolt(gh1)
Diagram Reference: 23
12 −
Diagram Reference: 24
Bolt, washer based(6h9)
