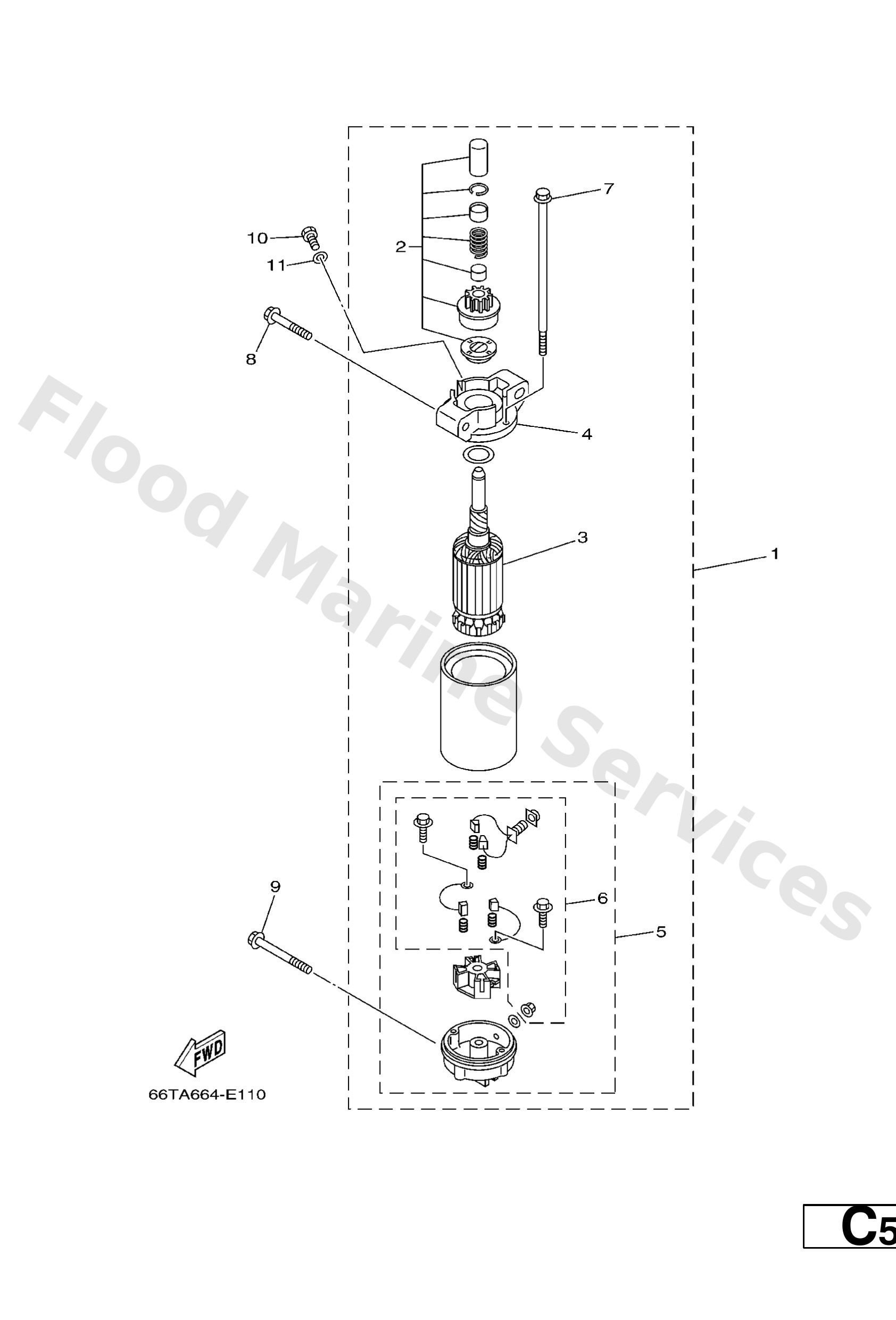

Diagram: STARTING MOTOR

Diagram

Parts List

66T−81800−01
Starting motor assembly
Diagram Reference: 1
Get Part
66T−81857−00
Pinion stopper set
Diagram Reference: 2
Get Part
66T−81850−01
Armature assembly
Diagram Reference: 3
Get Part
66T−81830−00
Front bracket assembly
Diagram Reference: 4
Get Part
66T−81820−00
Rear bracket assembly
Diagram Reference: 5
Get Part
66T−81840−00
Brush holder assembly
Diagram Reference: 6
Get Part
66T−81826−00
Bolt
Diagram Reference: 7
Get Part
90119−08M39
Bolt, with washer
Diagram Reference: 8
Get Part
90119−08M52
Bolt, with washer
Diagram Reference: 9
Get Part
97095−08016
Bolt, hexagon deep recess
Diagram Reference: 10
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 11
