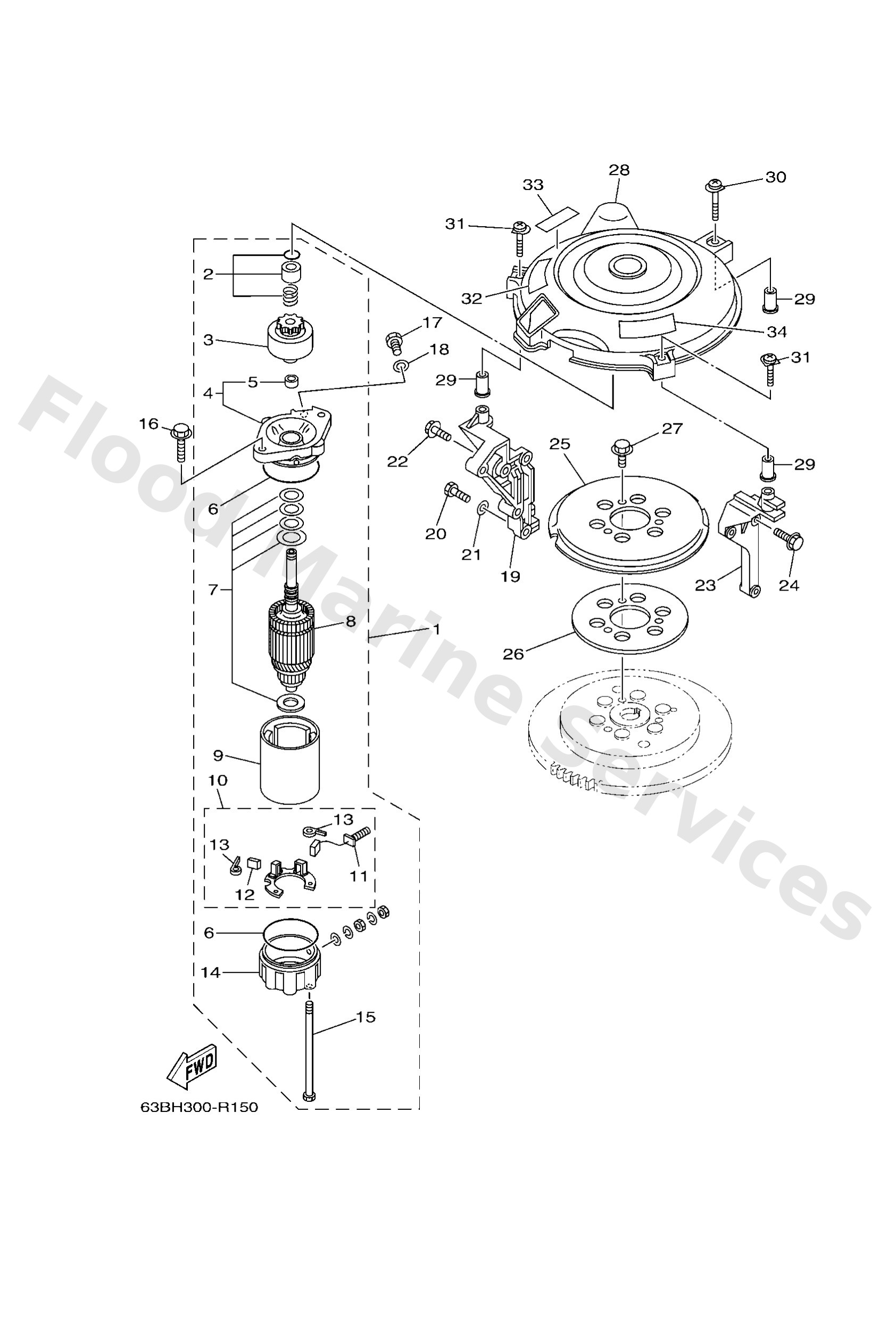

Diagram: STARTING MOTOR
Parts List
Starting motor assembly
Diagram Reference: 1
Pinion stopper set
Diagram Reference: 2
Pinion assembly
Diagram Reference: 3
Front cover assembly
Diagram Reference: 4
Metal, front
Diagram Reference: 5
O-ring
Diagram Reference: 6
Washer kit
Diagram Reference: 7
Armature assembly
Diagram Reference: 8
Stator ass'y
Diagram Reference: 9
Brush holder assembly
Diagram Reference: 10
Brush 1
Diagram Reference: 11
Brush 2
Diagram Reference: 12
Spring, brush
Diagram Reference: 13
Rear cover ass'y
Diagram Reference: 14
Bolt
Diagram Reference: 15
Bolt, with washer (62x)
Diagram Reference: 16
Bolt, hexagon
Diagram Reference: 17
Washer, plain (663)
Diagram Reference: 18
Stay 1
Diagram Reference: 19
Bolt (682)
Diagram Reference: 20
Bolt, with washer
Diagram Reference: 22
Stay 2
Diagram Reference: 23
Bolt, with washer
Diagram Reference: 24
Pulley, starter
Diagram Reference: 25
Gasket, hole cover
Diagram Reference: 26
Bolt, with washer
Diagram Reference: 27
Cover, flywheel
Diagram Reference: 28
Collar (6h4)
Diagram Reference: 29
Screw, with washer(61c)
Diagram Reference: 30
Screw, with washer(61c)
Diagram Reference: 31
Label, warning
Diagram Reference: 32
Label, warning
Diagram Reference: 33
Mark
