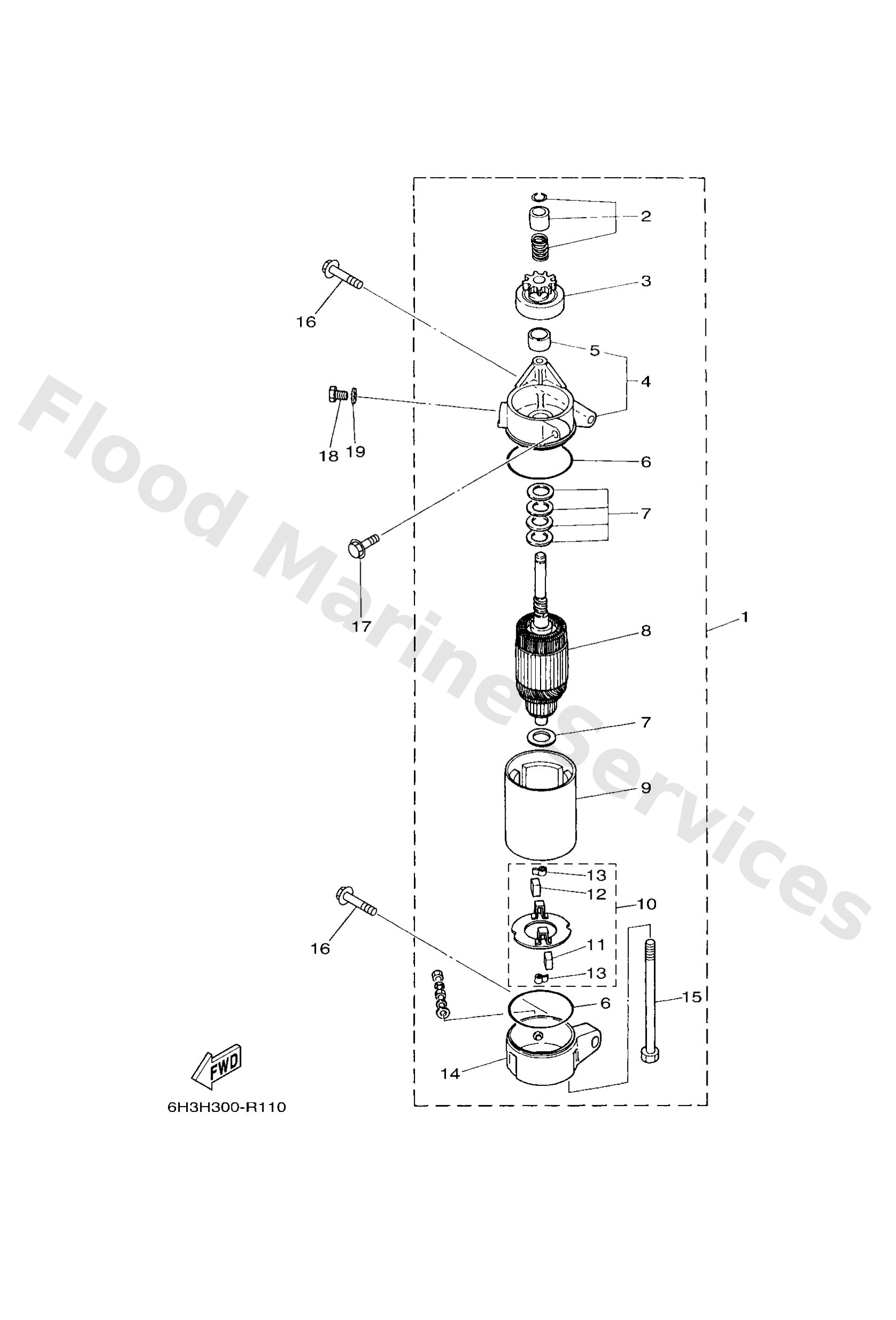

Diagram: STARTING MOTOR
Parts List
Starting motor assembly
Diagram Reference: 1
Pinion stopper set
Diagram Reference: 2
Pinion assembly
Diagram Reference: 3
Front cover assembly
Diagram Reference: 4
Metal, front
Diagram Reference: 5
O-ring
Diagram Reference: 6
Washer kit
Diagram Reference: 7
Armature assembly
Diagram Reference: 8
Stator assembly
Diagram Reference: 9
Brush holder assembly
Diagram Reference: 10
Brush 2
Diagram Reference: 11
Brush 1
Diagram Reference: 12
Spring, brush
Diagram Reference: 13
Rear cover assembly
Diagram Reference: 14
Bolt
Diagram Reference: 15
Bolt, with washer
Diagram Reference: 16
Bolt, with washer(61b)
Diagram Reference: 17
Bolt, hexagon
Diagram Reference: 18
Washer, plain (663)
Diagram Reference: 19
