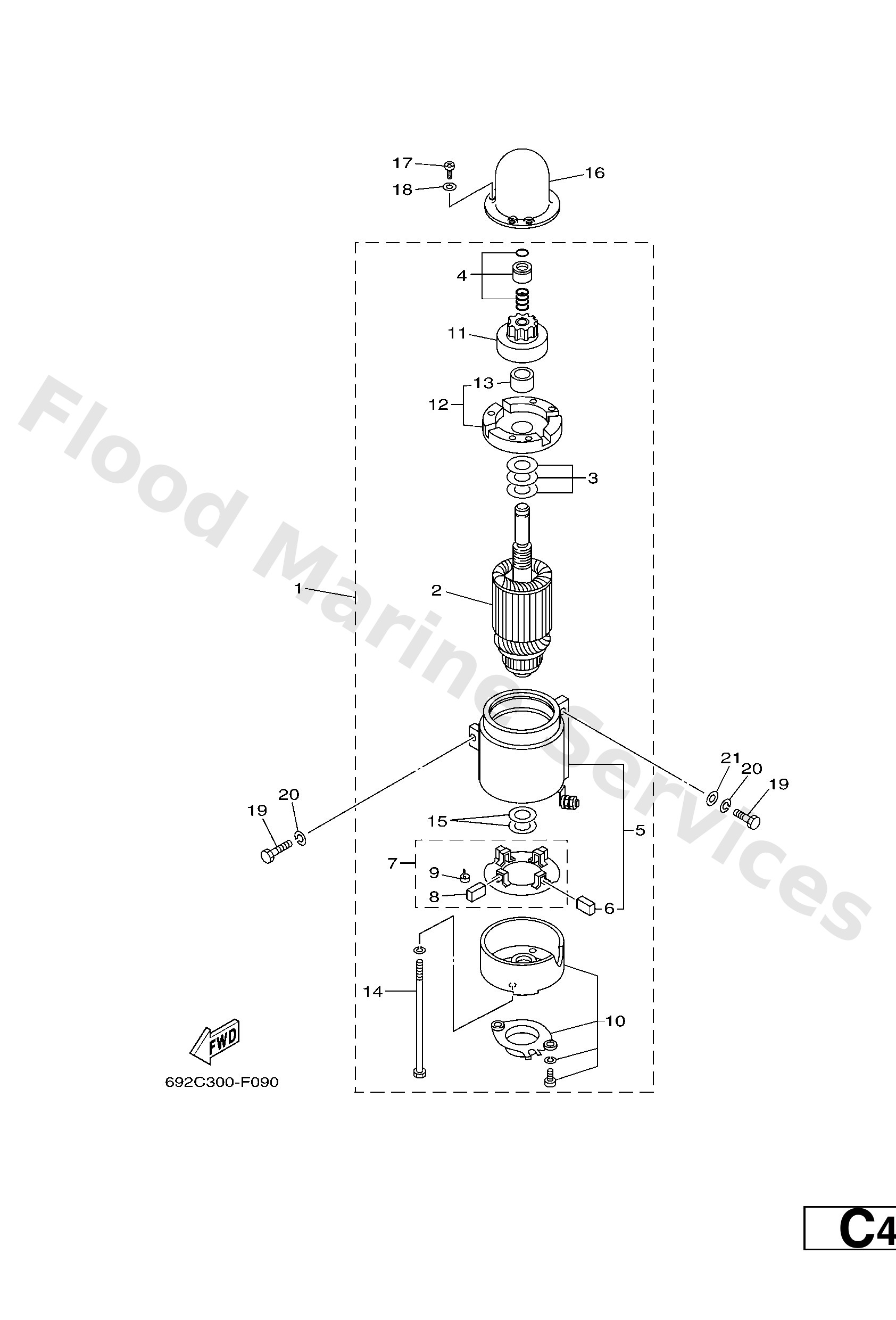

Diagram: STARTING MOTOR
Parts List
Starting motor assembly
Diagram Reference: 1
Armature assembly
Diagram Reference: 2
Washer kit
Diagram Reference: 3
Pinion stopper set
Diagram Reference: 4
Stator assembly
Diagram Reference: 5
Brush 1
Diagram Reference: 6
Brush holder assembly
Diagram Reference: 7
Brush 2
Diagram Reference: 8
Spring, brush
Diagram Reference: 9
Rear bracket assembly
Diagram Reference: 10
Pinion assembly
Diagram Reference: 11
Front bracket assembly
Diagram Reference: 12
Metal, front
Diagram Reference: 13
Bolt 1
Diagram Reference: 14
Washer 2
Diagram Reference: 15
Cover
Diagram Reference: 16
Screw, pan head (e56)
Diagram Reference: 17
Washer, plain (646)
Diagram Reference: 18
Bolt
Diagram Reference: 19
Ybs67-8 washer, spring
Diagram Reference: 20
Washer, plain (663)
Diagram Reference: 21
