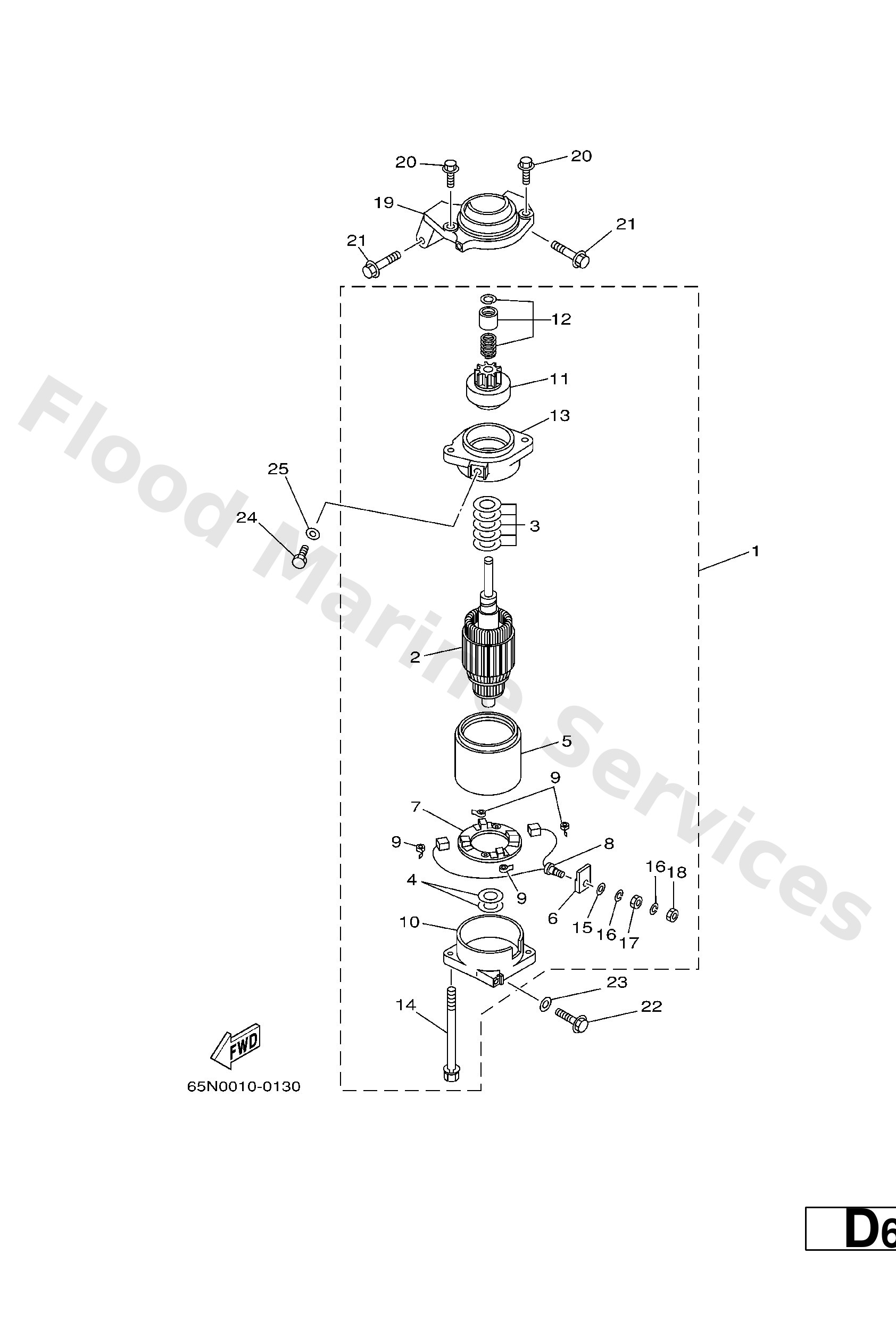

Diagram: STARTING MOTOR

Diagram

Parts List

6N78180010
Starting motor assembly
Diagram Reference: 1
Get Part
6N78185010
Armature assembly
Diagram Reference: 2
Get Part
61A8180900
Washer kit
Diagram Reference: 3
Get Part
61A8182400
Washer 2
Diagram Reference: 4
Get Part
6N78181000
Stator assembly
Diagram Reference: 5
Get Part
6K78182G10
Bush, terminal
Diagram Reference: 6
Get Part
6N78184000
Brush holder assembly
Diagram Reference: 7
Get Part
6N78180100
Brush set
Diagram Reference: 8
Get Part
6N78181300
Spring, brush
Diagram Reference: 9
Get Part
6N78182010
Rear bracket assembly
Diagram Reference: 10
Get Part
6N78180700
Gear assembly, starting motor
Diagram Reference: 11
Get Part
6N78185700
Pinion stopper set
Diagram Reference: 12
Get Part
6N78183000
Front bracket assembly
Diagram Reference: 13
Get Part
6K78182610
Bolt
Diagram Reference: 14
Get Part
6E58182E10
Washer, spring
Diagram Reference: 15
Get Part
6E58182F10
Washer,plain
Diagram Reference: 16
Get Part
6E58182A10
Nut
Diagram Reference: 17
Get Part
6E58182K10
Nut
Diagram Reference: 18
Get Part
6K7818220094
Bracket, starting motor
Diagram Reference: 19
Get Part
9011908M76
Bolt, with washer(6e5)
Diagram Reference: 20
Get Part
9011908M77
Bolt, with washer(6e5)
Diagram Reference: 21
Get Part
9011908M57
Bolt, with washer
Diagram Reference: 22
Get Part
9299008600
Washer, plain (663)
Diagram Reference: 23
Get Part
9709508016
Bolt, hexagon deep recess
Diagram Reference: 24
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 25
Get Part
