F13.5A (2007)
STARTING MOTOR

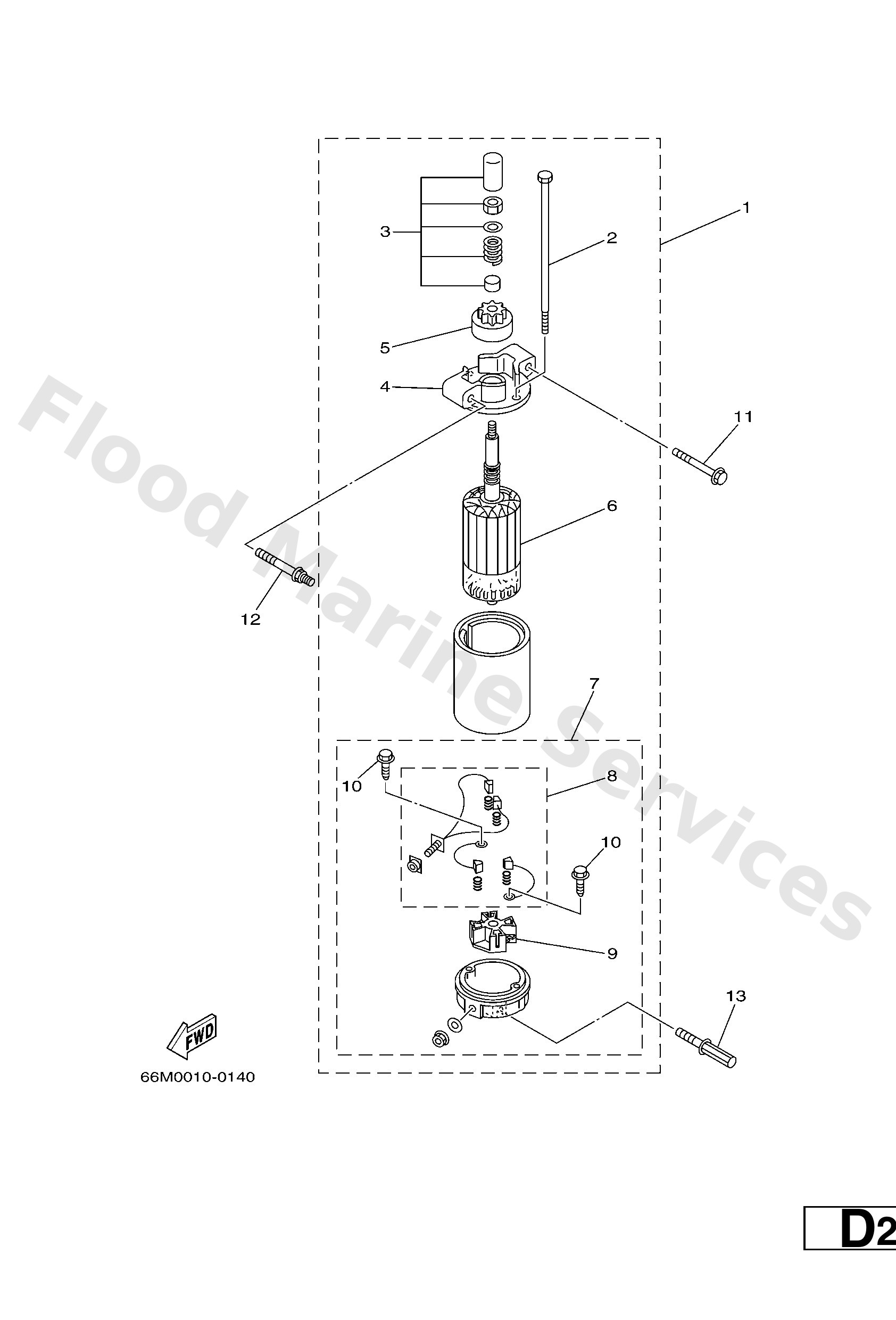

Diagram: STARTING MOTOR
Parts List
Reference
Description
Price
1
66M8180002
Starting motor assembly
Loading…
↗
2
65W8182600
Bolt
Loading…
↗
3
65W8185701
Retainer
Loading…
↗
4
66M8183000
Front bracket assembly
Loading…
↗
5
65W8180700
Gear assembly, starting motor
Loading…
↗
6
65W8185001
Armature assembly
Loading…
↗
7
66M8182000
Rear bracket assembly
Loading…
↗
8
65W8180100
Brush set
Loading…
↗
9
65W8184000
Brush holder assembly
Loading…
↗
10
65W8182S00
Screw
Loading…
↗
11
9011908M39
Bolt, with washer
Loading…
↗
12
9010908M78
Bolt
Loading…
↗
13
9010908M85
Bolt
Loading…
↗
