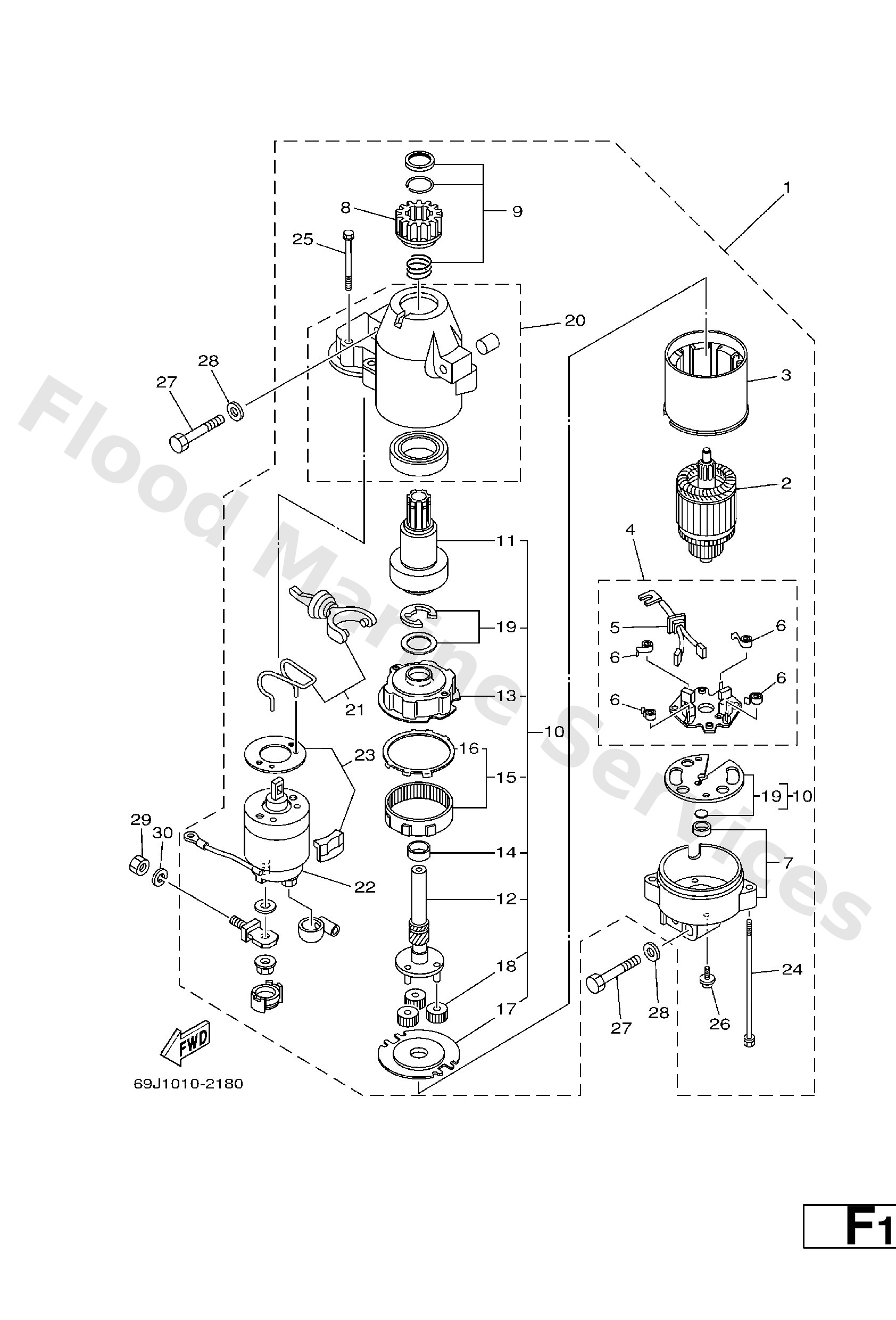

Diagram: STARTING MOTOR

Diagram

Parts List

69J−81800−00
Starting motor assembly
Diagram Reference: 1
Get Part
69J8180000
Starting motor assembly
Diagram Reference: 1
Get Part
67F--81850--00
Armature assembly
Diagram Reference: 2
Get Part
67F−81850−00
Armature assembly
Diagram Reference: 2
Get Part
67F--81810--00
Stator assembly
Diagram Reference: 3
Get Part
67F−81810−00
Stator assembly
Diagram Reference: 3
Get Part
69J−81840−00
Brush holder assembly
Diagram Reference: 4
Get Part
69J--81840--00
Brush holder assembly
Diagram Reference: 4
Get Part
69J−81801−00
Brush set
Diagram Reference: 5
Get Part
69J--81801--00
Brush set
Diagram Reference: 5
Get Part
67F−81813−00
Spring, brush
Diagram Reference: 6
Get Part
67F--81813--00
Spring, brush
Diagram Reference: 6
Get Part
68F−81820−00
Rear bracket assembly
Diagram Reference: 7
Get Part
68F--81820--00
Rear bracket assembly
Diagram Reference: 7
Get Part
67F--81808--00
Pinion assembly
Diagram Reference: 8
Get Part
67F−81808−00
Pinion assembly
Diagram Reference: 8
Get Part
67F−81857−00
Pinion stopper set
Diagram Reference: 9
Get Part
67F--81857--00
Pinion stopper set
Diagram Reference: 9
Get Part
67F−81807−00
Gear assembly, starting motor
Diagram Reference: 10
Get Part
67F--81807--00
Gear assembly, starting motor
Diagram Reference: 10
Get Part
67F−81832−00
Clutch, over run
Diagram Reference: 11
Get Part
67F--81832--00
Clutch, over run
Diagram Reference: 11
Get Part
67F--81836--00
Shaft, pinion
Diagram Reference: 12
Get Part
67F−81836−00
Shaft, pinion
Diagram Reference: 12
Get Part
67F--81821--00
Bracket, center 1
Diagram Reference: 13
Get Part
67F−81821−00
Bracket, center 1
Diagram Reference: 13
Get Part
67F--81841--00
Bearing
Diagram Reference: 14
Get Part
67F−81841−00
Bearing
Diagram Reference: 14
Get Part
67F--81891--00
Gear, ring
Diagram Reference: 15
Get Part
67F−81891−00
Gear, ring
Diagram Reference: 15
Get Part
67F−8183R−00
Gasket
Diagram Reference: 16
Get Part
67F--8183R--00
Gasket
Diagram Reference: 16
Get Part
67F--81830--00
Bracket, center 2
Diagram Reference: 17
Get Part
67F−81830−00
Bracket, center 2
Diagram Reference: 17
Get Part
67F−8183T−00
Gear, Idler
Diagram Reference: 18
Get Part
67F8183T00
Gear, Idler
Diagram Reference: 18
Get Part
67F−81809−00
Washer kit
Diagram Reference: 19
Get Part
67F--81809--00
Washer kit
Diagram Reference: 19
Get Part
69J−81842−00
Cover
Diagram Reference: 20
Get Part
69J--81842--00
Cover
Diagram Reference: 20
Get Part
69J−81839−00
Lever assembly
Diagram Reference: 21
Get Part
69J8183900
Lever assembly
Diagram Reference: 21
Get Part
69J−81941−00
Starter relay assembly
Diagram Reference: 22
Get Part
69J8194100
Starter relay assembly
Diagram Reference: 22
Get Part
69J8186900
Cover, Dust
Diagram Reference: 23
Get Part
69J−81869−00
Cover, Dust
Diagram Reference: 23
Get Part
6K7−81826−10
Bolt
Diagram Reference: 24
Get Part
6K7--81826--10
Bolt
Diagram Reference: 24
Get Part
69J--81828--00
Bolt 2
Diagram Reference: 25
Get Part
69J−81828−00
Bolt 2
Diagram Reference: 25
Get Part
67F--81846--00
Screw
Diagram Reference: 26
Get Part
67F−81846−00
Screw
Diagram Reference: 26
Get Part
97013--08045
Bolt
Diagram Reference: 27
Get Part
97013−08045
Bolt
Diagram Reference: 27
Get Part
92903--08600
Washer, plain (663)
Diagram Reference: 28
Get Part
92903−08600
Washer, plain (663)
Diagram Reference: 28
Get Part
95333--08600
Nut(6l2)
Diagram Reference: 29
Get Part
95333−08600
Nut(6l2)
Diagram Reference: 29
Get Part
92903--08100
Ybs67-8 washer, spring
Diagram Reference: 30
Get Part
92903−08100
Ybs67-8 washer, spring
Diagram Reference: 30
