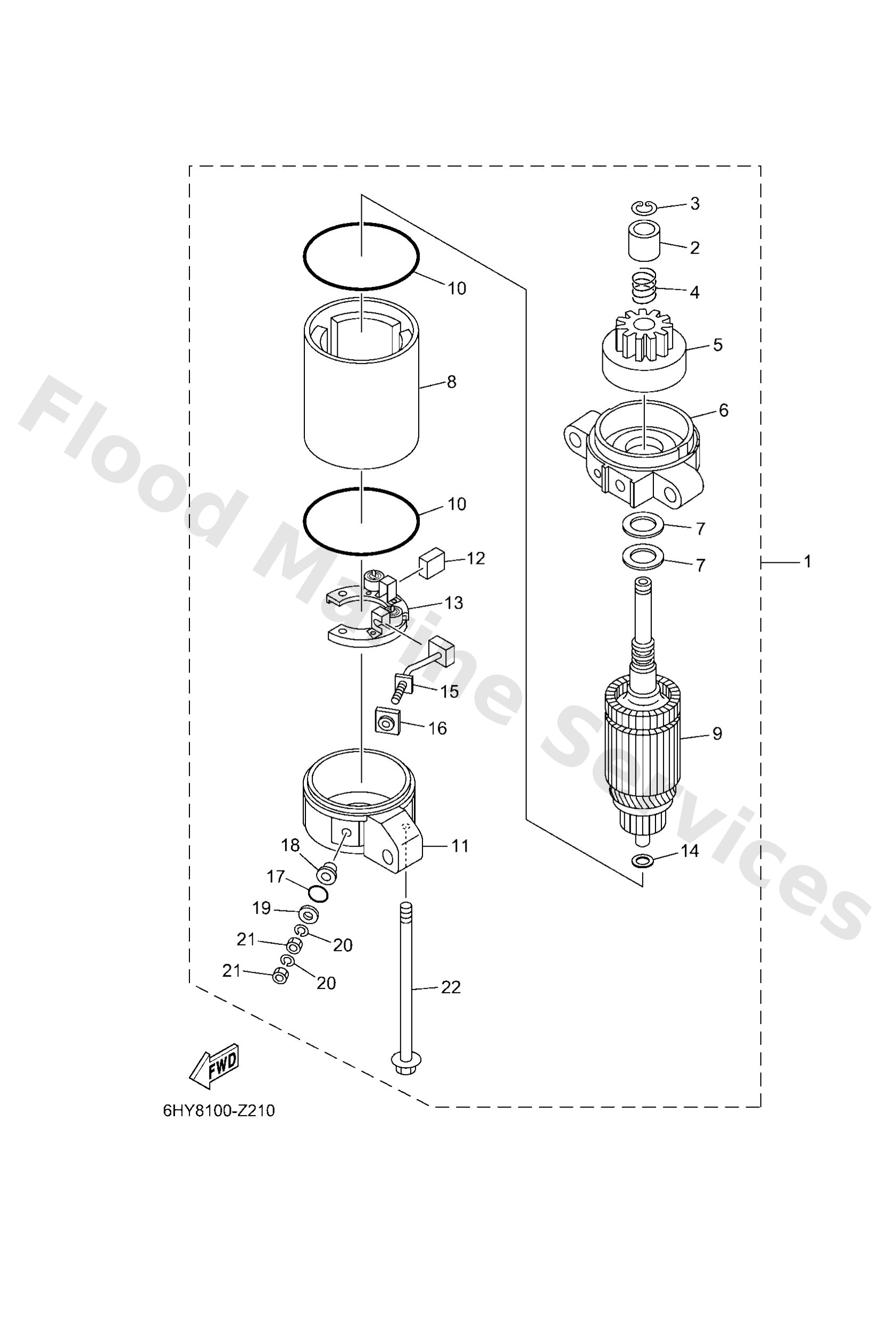

Diagram: STARTING MOTOR

Diagram

Parts List

6AH8180010
Starting motor assembly
Diagram Reference: 1
Get Part
6AH8185900
Stopper, Pinion
Diagram Reference: 2
Get Part
6898188400
Clip,Pinion Stopper
Diagram Reference: 3
Get Part
6898185800
Spring, Return
Diagram Reference: 4
Get Part
6898180720
Gear assembly, Starting Motor
Diagram Reference: 5
Get Part
6AH8183010
Front Bracket assembly
Diagram Reference: 6
Get Part
6898183500 (UN)
Washer
Diagram Reference: 7
Get Part
6898181020
Stator assembly
Diagram Reference: 8
Get Part
6898185020
Armature assembly
Diagram Reference: 9
Get Part
6898184720
O-Ring
Diagram Reference: 10
Get Part
6AH8182010
Rear Bracket assembly
Diagram Reference: 11
Get Part
6898181220
Brush 2
Diagram Reference: 12
Get Part
6AH8184000
Brush Holder assembly
Diagram Reference: 13
Get Part
6898182400
Washer 2
Diagram Reference: 14
Get Part
6AH8181110
Brush 1
Diagram Reference: 15
Get Part
6898182H00
Bush, Terminal 2
Diagram Reference: 16
Get Part
6898182L00
O-Ring 1
Diagram Reference: 17
Get Part
6898182G00
Bush, Terminal
Diagram Reference: 18
Get Part
6898182E00
Washer
Diagram Reference: 19
Get Part
6898182F00
Washer
Diagram Reference: 20
Get Part
6898182A00
Nut
Diagram Reference: 21
Get Part
6898182620
Bolt
Diagram Reference: 22
