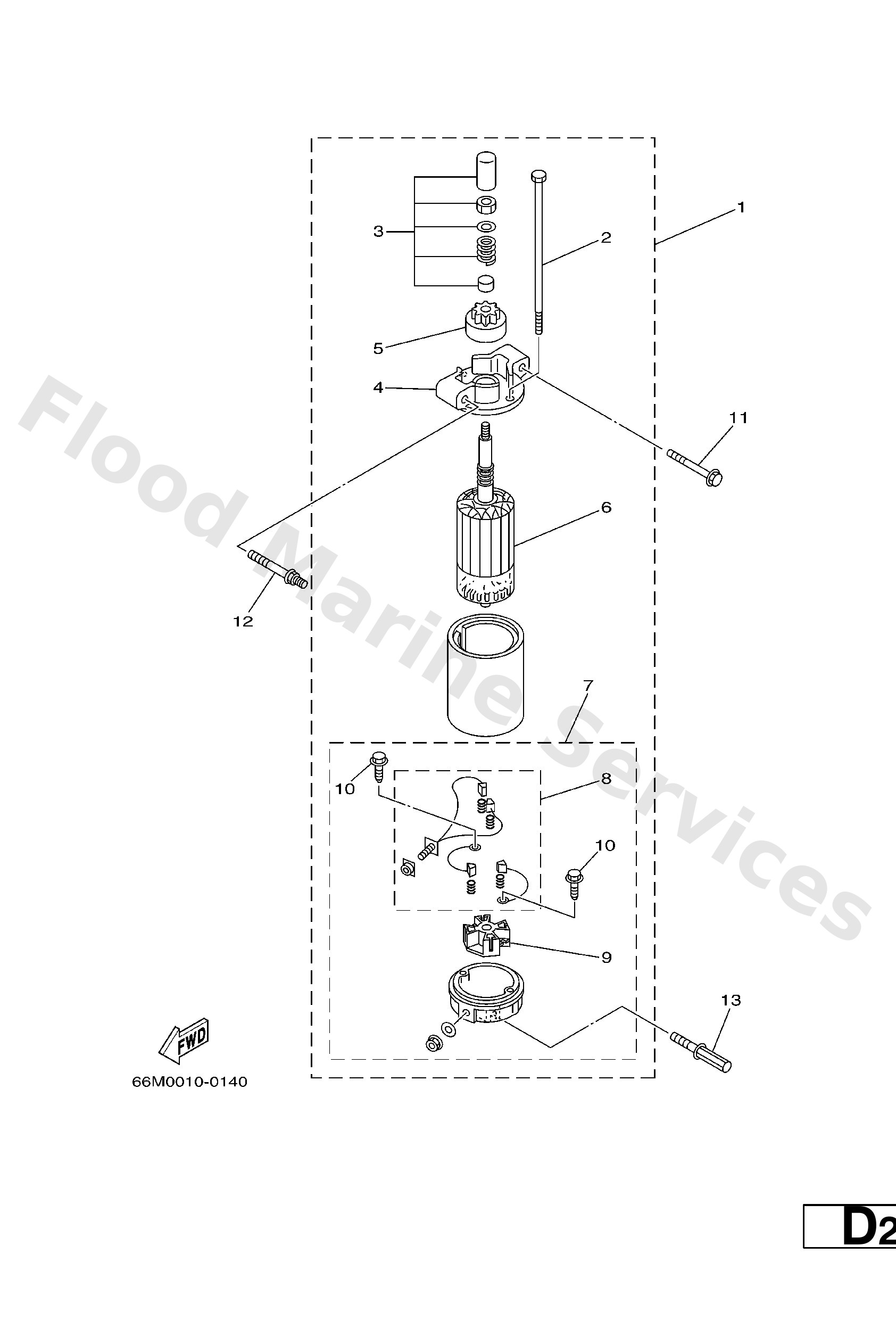

Diagram: STARTING MOTOR

Diagram

Parts List

66M−81800−01
Starting motor assembly
Diagram Reference: 1
Get Part
65W−81826−00
Bolt
Diagram Reference: 2
Get Part
65W−81857−01
Retainer
Diagram Reference: 3
Get Part
66M−81830−00
Front bracket assembly
Diagram Reference: 4
Get Part
65W−81807−00
Gear assembly, starting motor
Diagram Reference: 5
Get Part
65W−81850−01
Armature assembly
Diagram Reference: 6
Get Part
66M−81820−00
Rear bracket assembly
Diagram Reference: 7
Get Part
65W−81801−00
Brush set
Diagram Reference: 8
Get Part
65W−81840−00
Brush holder assembly
Diagram Reference: 9
Get Part
65W−8182S−00
Screw
Diagram Reference: 10
Get Part
90119−08M39
Bolt, with washer
Diagram Reference: 11
Get Part
90109−08M78
Bolt
Diagram Reference: 12
Get Part
90109−08M85
Bolt
Diagram Reference: 13
