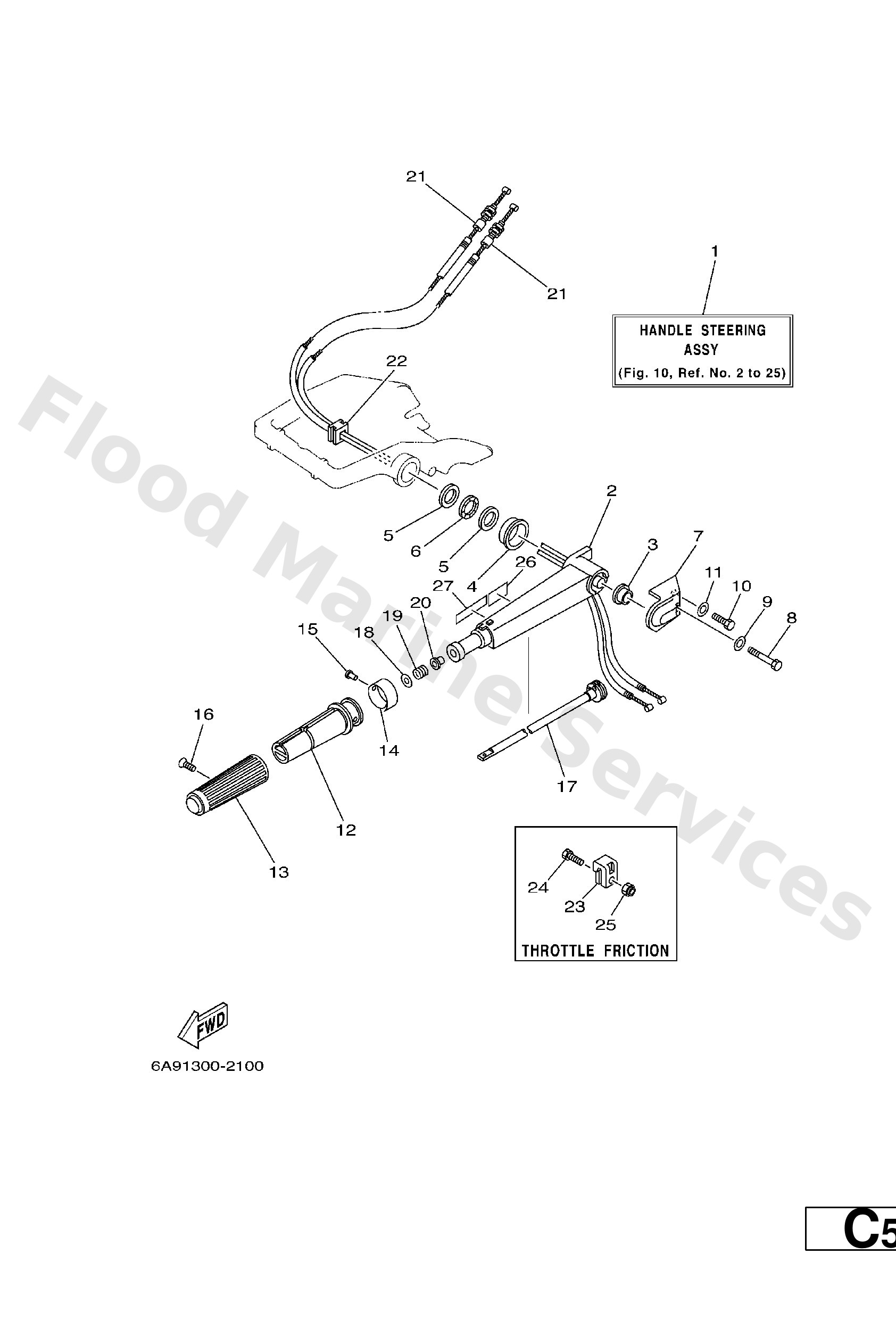

Diagram: STEERING
Parts List
Collar
Diagram Reference: 3
Collar
Diagram Reference: 4
Washer, plate
Diagram Reference: 5
Washer, wave
Diagram Reference: 6
Bolt(jf7)
Diagram Reference: 8
Washer, plain (646)
Diagram Reference: 9
Bolt(7u8)
Diagram Reference: 10
Grip, steering handle
Diagram Reference: 12
Rubber, handle
Diagram Reference: 13
Indicator, Throttle
Diagram Reference: 14
Rivet(6l5)
Diagram Reference: 15
Screw, countersunk
Diagram Reference: 16
Lever, throttle
Diagram Reference: 17
Washer, plate
Diagram Reference: 18
Spring (655)
Diagram Reference: 19
Bushing (650)
Diagram Reference: 20
Cable, throttle 1
Diagram Reference: 21
Grommet
Diagram Reference: 22
Piece, friction
Diagram Reference: 23
Nut selflocking (656)
Diagram Reference: 25
Label, Caution 7
Diagram Reference: 26
Label, caution 7
Diagram Reference: 27
