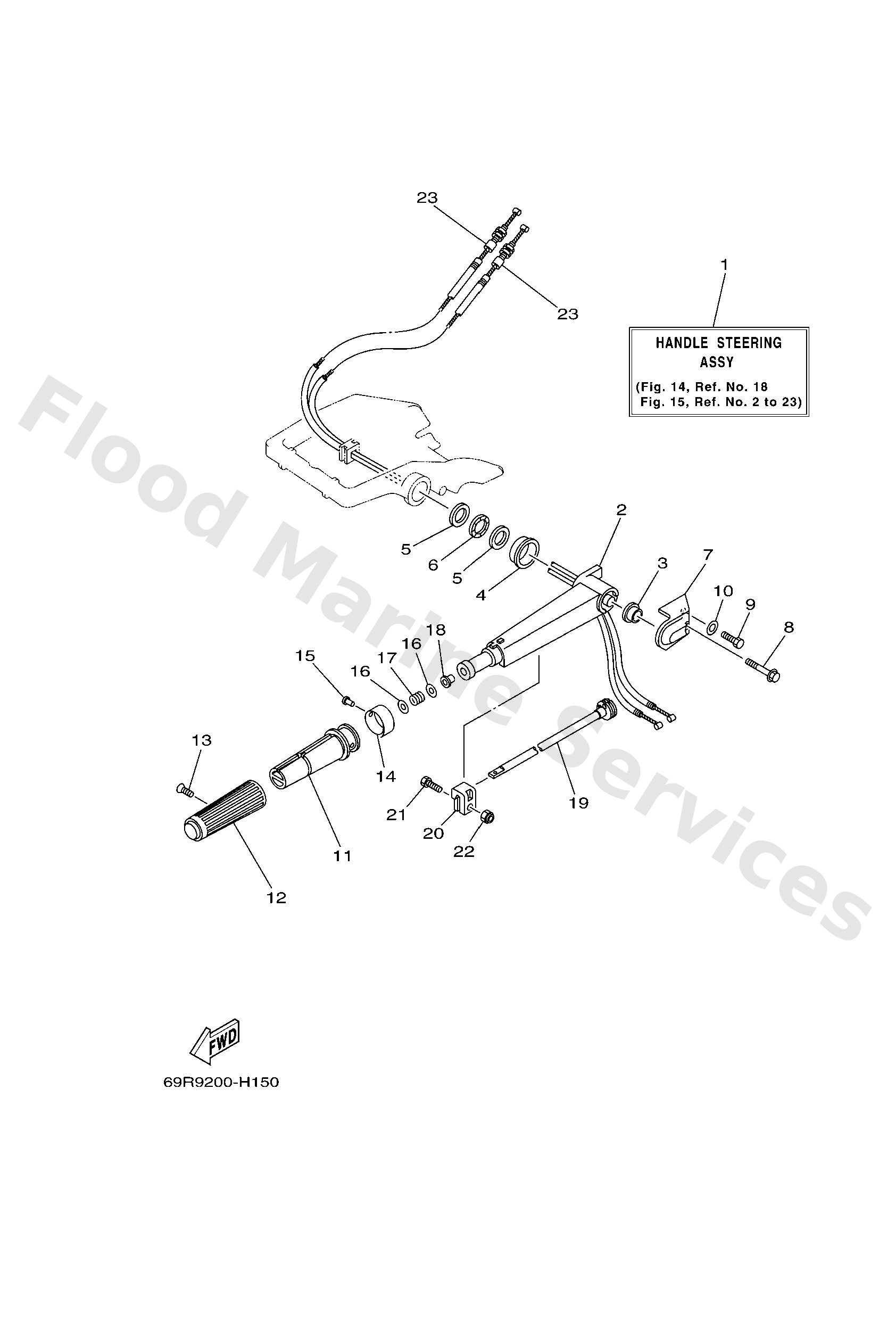

Diagram: STEERING

Diagram

Parts List

69PW0084004D
Handle steering assembly
Diagram Reference: 1
Get Part
68942111014D
Handle, steering
Diagram Reference: 2
Get Part
9038713003
Collar
Diagram Reference: 3
Get Part
9038733001
Collar
Diagram Reference: 4
Get Part
9020128013
Washer, plate
Diagram Reference: 5
Get Part
9020628001
Washer, wave
Diagram Reference: 6
Get Part
69P42112004D
Handle, steering
Diagram Reference: 7
Get Part
9759506550
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 9
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 10
Get Part
6644211900
Grip, steering handle
Diagram Reference: 11
Get Part
6F642177A0
Rubber, handle
Diagram Reference: 12
Get Part
9014905M13
Screw, countersunk
Diagram Reference: 13
Get Part
6G14213710
Indicator, throttle
Diagram Reference: 14
Get Part
9026902M09
Rivet(6l5)
Diagram Reference: 15
Get Part
9020110M02
Washer, plate(6g9)
Diagram Reference: 16
Get Part
9050123215
Spring (655)
Diagram Reference: 17
Get Part
9038608032
Bushing (650)
Diagram Reference: 18
Get Part
6894213800
Lever, throttle
Diagram Reference: 19
Get Part
6564212601
Piece, friction
Diagram Reference: 20
Get Part
9018506062
Nut selflocking (656)
Diagram Reference: 22
Get Part
61N2631101
Cable, throttle 1
Diagram Reference: 23
