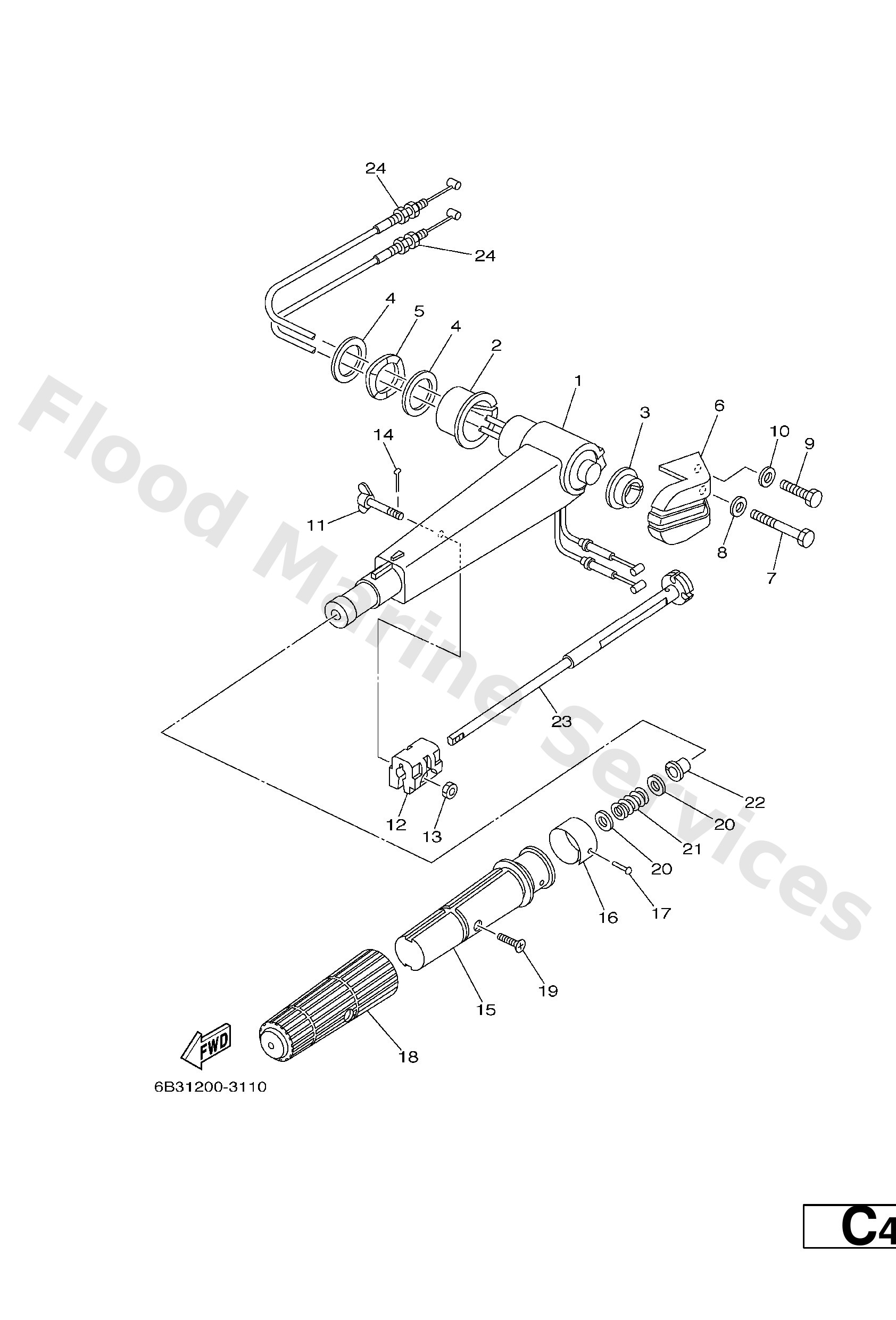

Diagram: STEERING

Diagram

Parts List

6B4−42111−00−4D
Handle, steering
Diagram Reference: 1
Get Part
90381−35001
Bush, solid
Diagram Reference: 2
Get Part
90381−20001
Bush, solid
Diagram Reference: 3
Get Part
90201−28013
Washer, plate
Diagram Reference: 4
Get Part
90206−28001
Washer, wave
Diagram Reference: 5
Get Part
6B4−42131−00−4D
Cover, handle steering
Diagram Reference: 6
Get Part
97095−08055
Bolt, hexagon
Diagram Reference: 7
Get Part
92995−08600
Washer, plain (663)
Diagram Reference: 8
Get Part
97095−08030
Bolt, hexagon (fj1)
Diagram Reference: 9
Get Part
6B4−42125−00
Bolt, friction adjusting
Diagram Reference: 11
Get Part
6B4−42126−00
Friction, steering handle grip
Diagram Reference: 12
Get Part
95380−06600
Nut(661)
Diagram Reference: 13
Get Part
91490−16010
Pin, cotter
Diagram Reference: 14
Get Part
6B4−42119−00
Grip, steering handle
Diagram Reference: 15
Get Part
6F5−42137−00
Indicator, Throttle
Diagram Reference: 16
Get Part
90269−02M09
Rivet(6l5)
Diagram Reference: 17
Get Part
6G1−42177−00
Rubber, handle
Diagram Reference: 18
Get Part
90149−05M13
Screw, countersunk
Diagram Reference: 19
Get Part
90201−10M02
Washer, plate(6g9)
Diagram Reference: 20
Get Part
90501−23215
Spring (655)
Diagram Reference: 21
Get Part
90386−08032
Bushing (650)
Diagram Reference: 22
Get Part
6B4−42138−00
Lever, throttle
Diagram Reference: 23
Get Part
6B4−26301−00
Throttle cable assembly
Diagram Reference: 24
