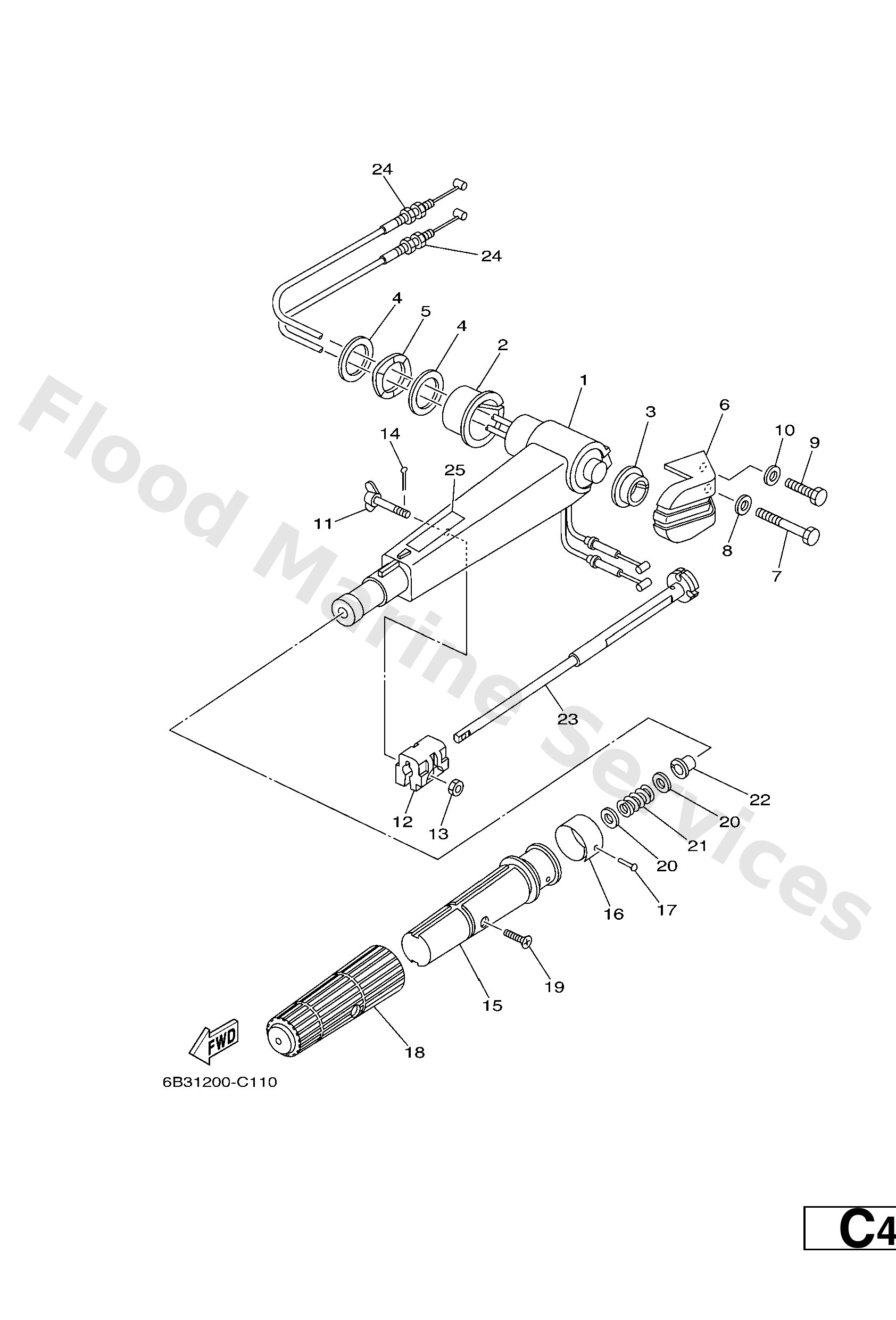

Diagram: STEERING

Diagram

Parts List

6B442111004D
Handle, steering
Diagram Reference: 1
Get Part
9038135001
Bush, solid
Diagram Reference: 2
Get Part
9038120001
Bush, solid
Diagram Reference: 3
Get Part
9020128013
Washer, plate
Diagram Reference: 4
Get Part
9020628001
Washer, wave
Diagram Reference: 5
Get Part
6B442131004D
Cover, handle steering
Diagram Reference: 6
Get Part
9709508055
Bolt, hexagon
Diagram Reference: 7
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 8
Get Part
9709508030
Bolt, hexagon (fj1)
Diagram Reference: 9
Get Part
6B44212500
Bolt, friction adjusting
Diagram Reference: 11
Get Part
6B44212600
Friction, steering handle grip
Diagram Reference: 12
Get Part
9538006600
Nut(661)
Diagram Reference: 13
Get Part
9149016010
Pin, cotter
Diagram Reference: 14
Get Part
6B44211900
Grip, steering handle
Diagram Reference: 15
Get Part
6F54213700
Indicator, Throttle
Diagram Reference: 16
Get Part
9026902M09
Rivet(6l5)
Diagram Reference: 17
Get Part
6G14217700
Rubber, handle
Diagram Reference: 18
Get Part
9014905M13
Screw, countersunk
Diagram Reference: 19
Get Part
9020110M02
Washer, plate(6g9)
Diagram Reference: 20
Get Part
9050123215
Spring (655)
Diagram Reference: 21
Get Part
9038608032
Bushing (650)
Diagram Reference: 22
Get Part
6B44213800
Lever, throttle
Diagram Reference: 23
Get Part
6B42630100
Throttle cable assembly
Diagram Reference: 24
Get Part
6E08362741
Label, caution 7
Diagram Reference: 25
