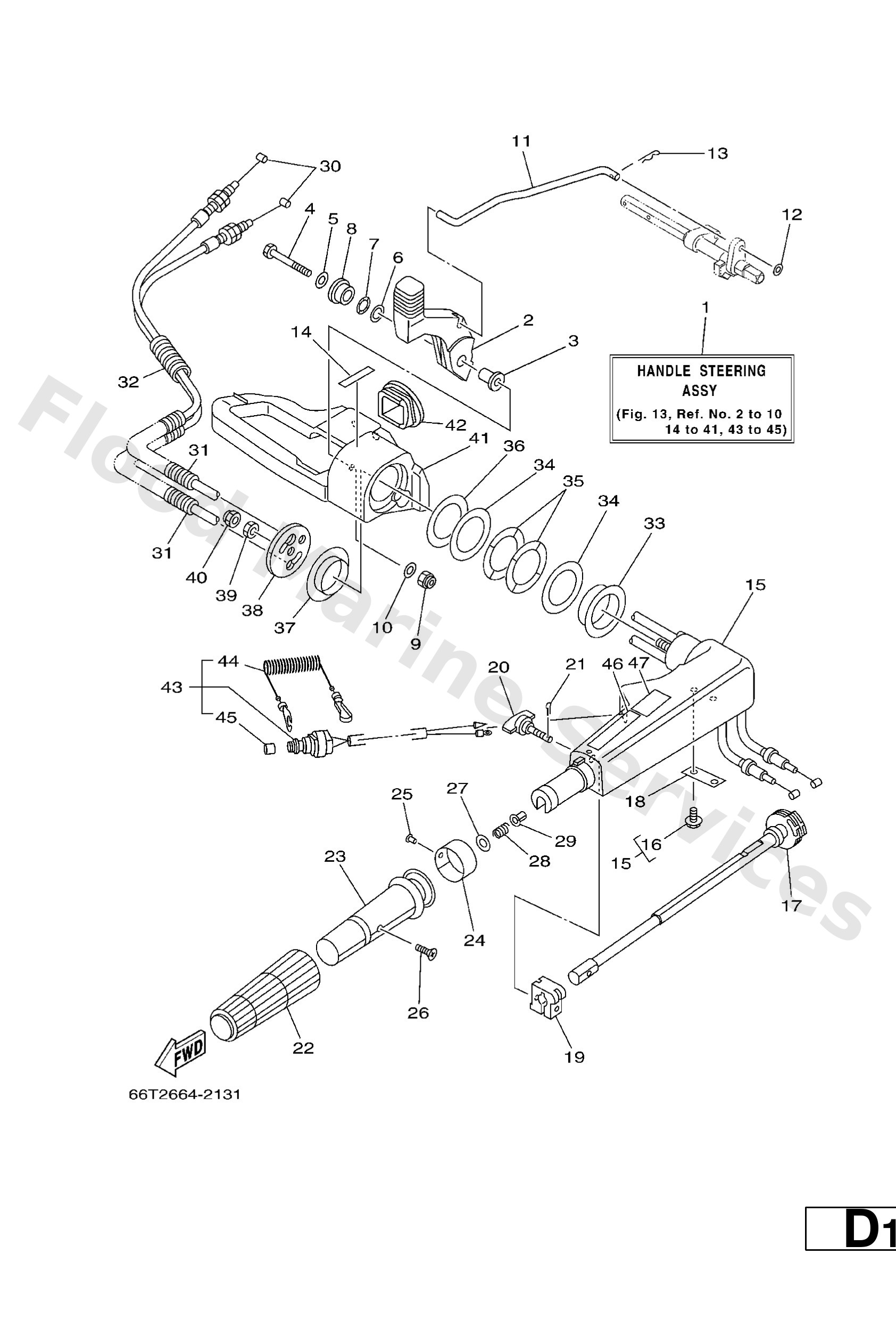

Diagram: STEERING

Diagram

Parts List

66T--44111--02
Handle, gear shift
Diagram Reference: 2
Get Part
90387--06M86
Collar
Diagram Reference: 3
Get Part
97095--06050
Bolt(jf7)
Diagram Reference: 4
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 5
Get Part
90201--12M07
Washer, plate
Diagram Reference: 6
Get Part
90206--12052
Washer, wave (666)
Diagram Reference: 7
Get Part
66T--42123--00
Bolt, handle joint
Diagram Reference: 8
Get Part
95780--06300
Nut, nylon (6g1)
Diagram Reference: 9
Get Part
92995--06200
Ybs66-6 washer, plain
Diagram Reference: 10
Get Part
66T--44124--00
Link, shift rod
Diagram Reference: 11
Get Part
92990--06200
Ybs66-6 washer, plain
Diagram Reference: 12
Get Part
90468--18008
Clip 620436610000
Diagram Reference: 13
Get Part
6E0--44191--11
Indicator, shift
Diagram Reference: 14
Get Part
90109--06M86
Bolt
Diagram Reference: 16
Get Part
65W--42138--00
Lever, throttle
Diagram Reference: 17
Get Part
65W--42159--00
Stay
Diagram Reference: 18
Get Part
6G1--42126--00
Piece, friction
Diagram Reference: 19
Get Part
65W--42125--00
Bolt, friction adjusting
Diagram Reference: 20
Get Part
91490--20010
Pin, cotter
Diagram Reference: 21
Get Part
6F6--42177--A0
Rubber, handle
Diagram Reference: 22
Get Part
664--42119--00
Grip, steering handle
Diagram Reference: 23
Get Part
6G1--42137--10
Indicator, throttle
Diagram Reference: 24
Get Part
90269--02M09
Rivet(6l5)
Diagram Reference: 25
Get Part
90149--05M13
Screw, countersunk
Diagram Reference: 26
Get Part
92903--10600
Washer, plate
Diagram Reference: 27
Get Part
90501--23215
Spring (655)
Diagram Reference: 28
Get Part
90386--08032
Bushing (650)
Diagram Reference: 29
Get Part
66T--26301--00
Throttle cable assembly
Diagram Reference: 30
Get Part
90446--10M87
Hose
Diagram Reference: 31
Get Part
90446--10M86
Hose
Diagram Reference: 32
Get Part
90386--40MA0
Bushing
Diagram Reference: 33
Get Part
90201--43M00
Washer, plate
Diagram Reference: 34
Get Part
90206--43M22
Washer, wave
Diagram Reference: 35
Get Part
90202--43M57
Washer, plate
Diagram Reference: 36
Get Part
90386--40M99
Bush
Diagram Reference: 37
Get Part
65W--42131--01
Cover, handle steering
Diagram Reference: 38
Get Part
95380--10700
Nut (682)
Diagram Reference: 39
Get Part
95780--10300
Nut, nylon (6e5)
Diagram Reference: 40
Get Part
66T--41273--00
Grommet
Diagram Reference: 42
Get Part
66T--82575--01
Engine stop switch assembly
Diagram Reference: 43
Get Part
682--82556--00
Lanyard, stop switch
Diagram Reference: 44
Get Part
689--8257Y--00
Cap
Diagram Reference: 45
Get Part
6E0--83627--41
Label, caution 7
Diagram Reference: 46
Get Part
6E0--83627--51
Label, Caution 7
Diagram Reference: 47
