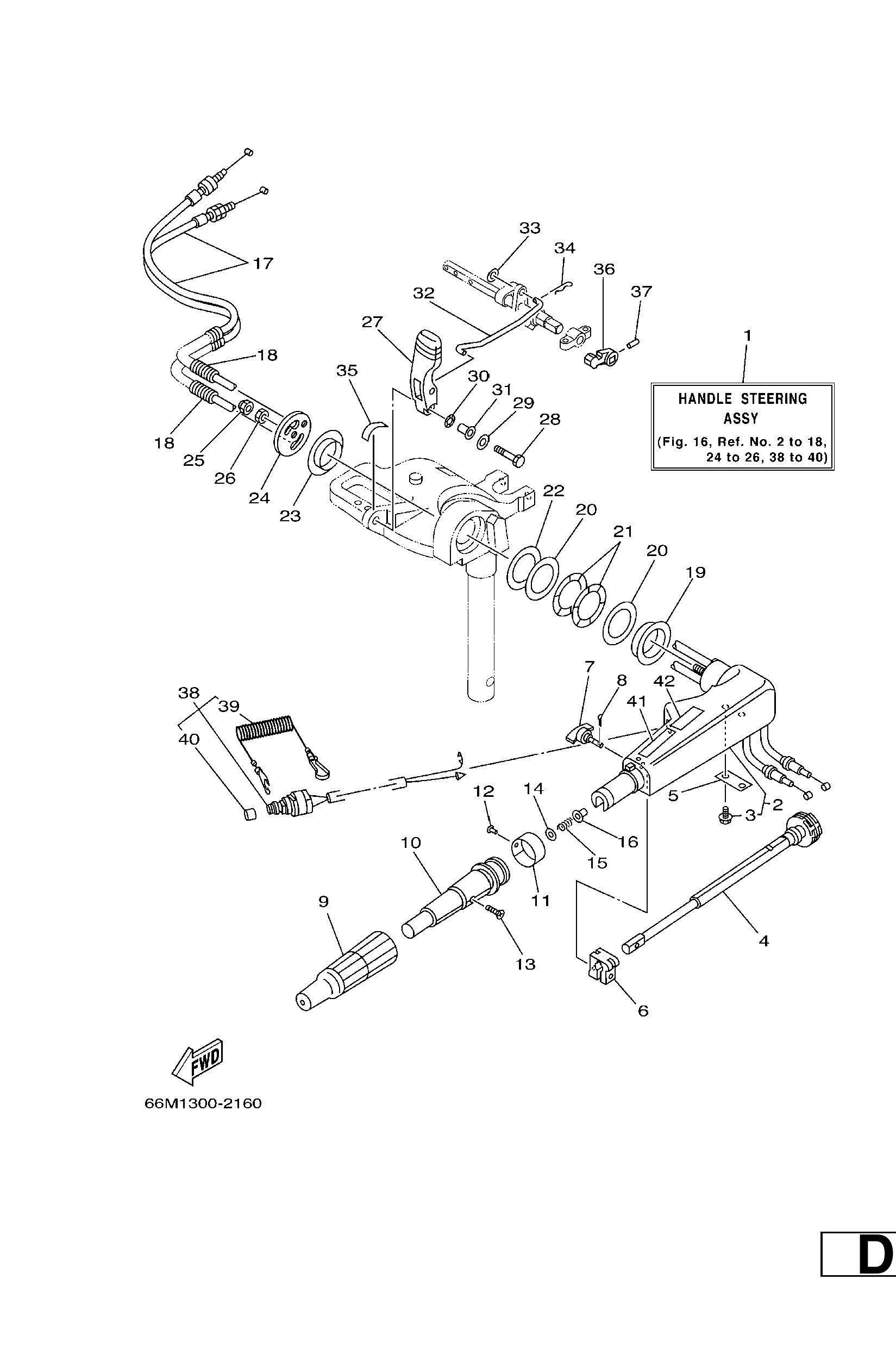

Diagram: STEERING

Diagram

Parts List

66MW0084004D
Handle steering assembly
Diagram Reference: 1
Get Part
65W42101014D
Handle, steering
Diagram Reference: 2
Get Part
9010906M86
Bolt
Diagram Reference: 3
Get Part
65W4213800
Lever, throttle
Diagram Reference: 4
Get Part
65W4215900
Stay
Diagram Reference: 5
Get Part
6G14212600
Piece, friction
Diagram Reference: 6
Get Part
65W4212500
Bolt, friction adjusting
Diagram Reference: 7
Get Part
9149016010
Pin, cotter
Diagram Reference: 8
Get Part
66M4217700
Rubber, handle
Diagram Reference: 9
Get Part
66M4211900
Grip, steering handle
Diagram Reference: 10
Get Part
6894213720
Indicator, Throttle
Diagram Reference: 11
Get Part
9026902M09
Rivet(6l5)
Diagram Reference: 12
Get Part
9014905M13
Screw, countersunk
Diagram Reference: 13
Get Part
9290310600
Washer, plate
Diagram Reference: 14
Get Part
9050123215
Spring (655)
Diagram Reference: 15
Get Part
9038608032
Bushing (650)
Diagram Reference: 16
Get Part
66M2631100
Cable, throttle 1
Diagram Reference: 17
Get Part
9044610M87
Hose
Diagram Reference: 18
Get Part
9038640MA0
Bushing
Diagram Reference: 19
Get Part
9020143M00
Washer, plate
Diagram Reference: 20
Get Part
9020643M22
Washer, wave
Diagram Reference: 21
Get Part
9020243M57
Washer, plate
Diagram Reference: 22
Get Part
9038640M99
Bush
Diagram Reference: 23
Get Part
66M4213101
Cover, handle steering
Diagram Reference: 24
Get Part
9578010300
Nut, nylon (6e5)
Diagram Reference: 25
Get Part
9538010700
Nut (682)
Diagram Reference: 26
Get Part
66M4411101
Handle, gear shift
Diagram Reference: 27
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 28
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 29
Get Part
9020610M04
Washer, wave (676)
Diagram Reference: 30
Get Part
9038706M78
-
Diagram Reference: 31
Get Part
66M4412400
Link, shift rod
Diagram Reference: 32
Get Part
9299006200
Ybs66-6 washer, plain
Diagram Reference: 33
Get Part
9046818008
Clip 620436610000
Diagram Reference: 34
Get Part
6E04419111
Indicator, shift
Diagram Reference: 35
Get Part
65W4417300 (FOR NEWTRAL SW.)
Lever, shift control
Diagram Reference: 36
Get Part
9025403M05 (FOR NEWTRAL SW.)
Pin, spring
Diagram Reference: 37
Get Part
65W8257501
Engine stop switch assembly
Diagram Reference: 38
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 39
Get Part
6898257Y00
Cap
Diagram Reference: 40
Get Part
6E08362741
Label, caution 7
Diagram Reference: 41
Get Part
6E08362751
-
Diagram Reference: 42
