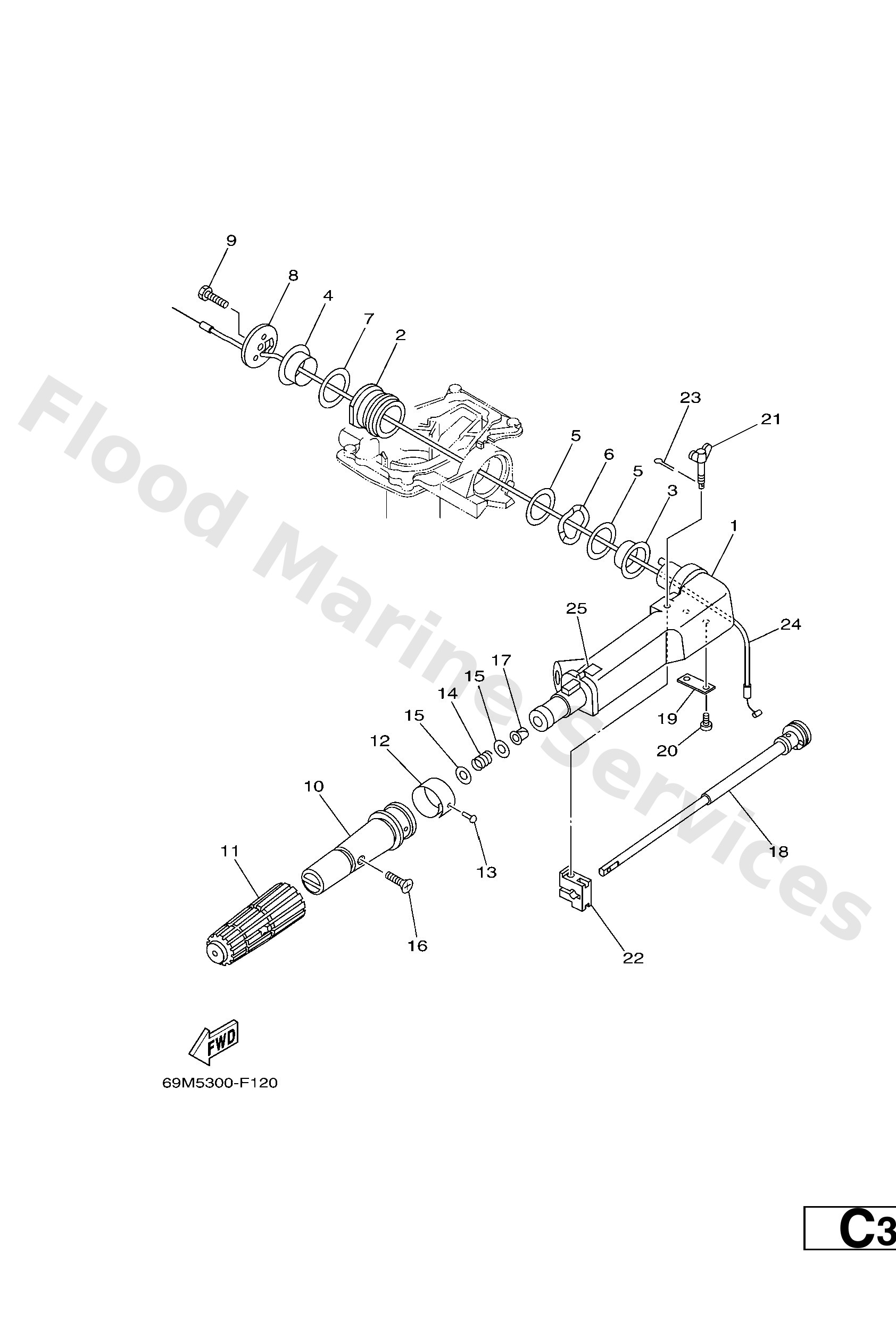

Diagram: STEERING

Diagram

Parts List

69MG2111004D
Handle, Steering
Diagram Reference: 1
Get Part
67D4212900
Bushing, rubber
Diagram Reference: 2
Get Part
68DG217100
Bushing, 1
Diagram Reference: 3
Get Part
68DG217200
Bushing, 2
Diagram Reference: 4
Get Part
68DG218100
Washer, 1
Diagram Reference: 5
Get Part
69MG218800
Washer,wave
Diagram Reference: 6
Get Part
68DG218200
Washer, 2
Diagram Reference: 7
Get Part
68DG213101
Cover, Handle Steering
Diagram Reference: 8
Get Part
9707508025
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
69MG211910
Grip steering handle
Diagram Reference: 10
Get Part
6N0G217700
Rubber, handle
Diagram Reference: 11
Get Part
69MG213700
Indicator, throttle
Diagram Reference: 12
Get Part
9026902M09
Rivet(6l5)
Diagram Reference: 13
Get Part
9050123800
Spring (655)
Diagram Reference: 14
Get Part
9020110M02
Washer, plate(6g9)
Diagram Reference: 15
Get Part
9014905M13
Screw, countersunk
Diagram Reference: 16
Get Part
9038608032
Bushing (650)
Diagram Reference: 17
Get Part
6G14213801
Lever, throttle
Diagram Reference: 18
Get Part
68DG215900
Stay
Diagram Reference: 19
Get Part
9788505012
Screw,pan head (646)
Diagram Reference: 20
Get Part
6G14212501
Bolt, friction adjusting
Diagram Reference: 21
Get Part
6G14212600
Piece, friction
Diagram Reference: 22
Get Part
9149016010
Pin, cotter
Diagram Reference: 23
Get Part
69MF630100
Trottle cable
Diagram Reference: 24
Get Part
6N0F817600
Label, Caution
Diagram Reference: 25
Get Part
