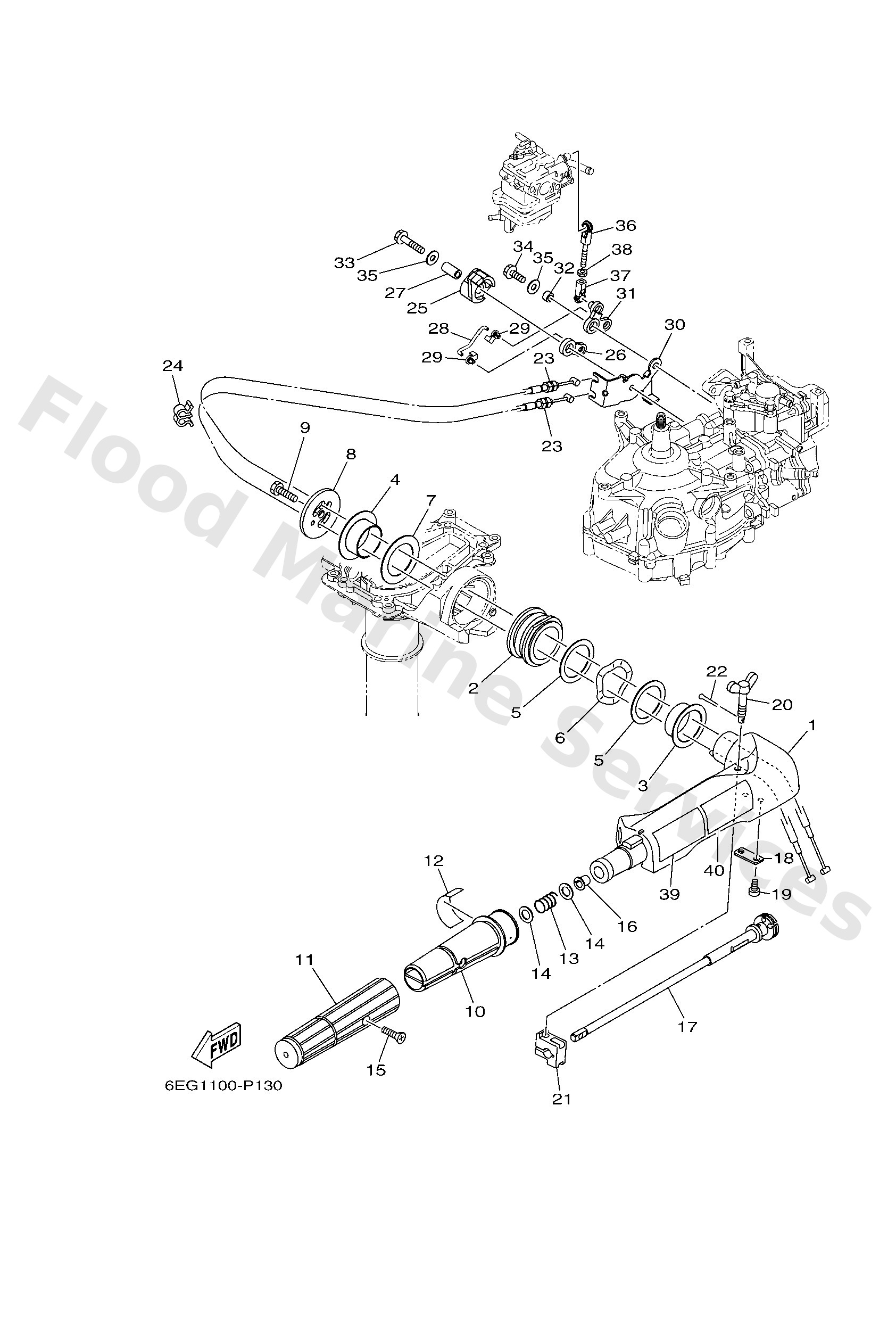

Diagram: STEERING

Diagram

Parts List

6EGG2111008D
Handle, steering
Diagram Reference: 1
Get Part
6BX4212900
Bushing, rubber
Diagram Reference: 2
Get Part
6EEG217100
Bushing
Diagram Reference: 3
Get Part
6EEG217200
Bushing 2
Diagram Reference: 4
Get Part
6EEG218100
Washer
Diagram Reference: 5
Get Part
6EEG218800
Washer, wave
Diagram Reference: 6
Get Part
6EEG218200
Washer 2
Diagram Reference: 7
Get Part
6EEG213100
Cover, handle stee
Diagram Reference: 8
Get Part
9707508025
Bolt, hexagon deep recess
Diagram Reference: 9
Get Part
6EGG211900
Grip, steering han
Diagram Reference: 10
Get Part
6EGG217700
Rubber, handle
Diagram Reference: 11
Get Part
6EGG213700
Indicator, throttl
Diagram Reference: 12
Get Part
9050123215
Spring (655)
Diagram Reference: 13
Get Part
9020110M02
Washer, plate(6g9)
Diagram Reference: 14
Get Part
9015205014
Screw, countersunk
Diagram Reference: 15
Get Part
9038608032
Bushing (650)
Diagram Reference: 16
Get Part
6EGG213800
Lever, throttle
Diagram Reference: 17
Get Part
6EEG215900
Stay
Diagram Reference: 18
Get Part
9788505012
Screw,pan head (646)
Diagram Reference: 19
Get Part
6G14212501
Bolt, friction adjusting
Diagram Reference: 20
Get Part
6EEG212600
Friction, steering
Diagram Reference: 21
Get Part
9149016010
Pin, cotter
Diagram Reference: 22
Get Part
6EGF630100
Throttle cable ass
Diagram Reference: 23
Get Part
9046407M20
Clamp(6h0)
Diagram Reference: 24
Get Part
6EEG163800
Pulley
Diagram Reference: 25
Get Part
6EGG128300
Lever, free accel.
Diagram Reference: 26
Get Part
9038706252
Collar
Diagram Reference: 27
Get Part
6EGG121100
Link, accel.
Diagram Reference: 28
Get Part
6614126202
Joint, choke lever
Diagram Reference: 29
Get Part
6EGE449700
Stay, throttle wir
Diagram Reference: 30
Get Part
6EGG128400
Lever, free axle 2
Diagram Reference: 31
Get Part
9038706M24
Collar(6r8)
Diagram Reference: 32
Get Part
9759506535
Bolt(j52)
Diagram Reference: 33
Get Part
9759506520
Bolt(7u8)
Diagram Reference: 34
Get Part
9020106M62
Washer, plate (6e5)
Diagram Reference: 35
Get Part
6824123750
Joint, link 2
Diagram Reference: 36
Get Part
6H14123700
Joint, link
Diagram Reference: 37
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 38
Get Part
6EFG279440
Label, warning (ge
Diagram Reference: 39
Get Part
6EFG279450
Label, warning (ge
Diagram Reference: 40
Get Part
