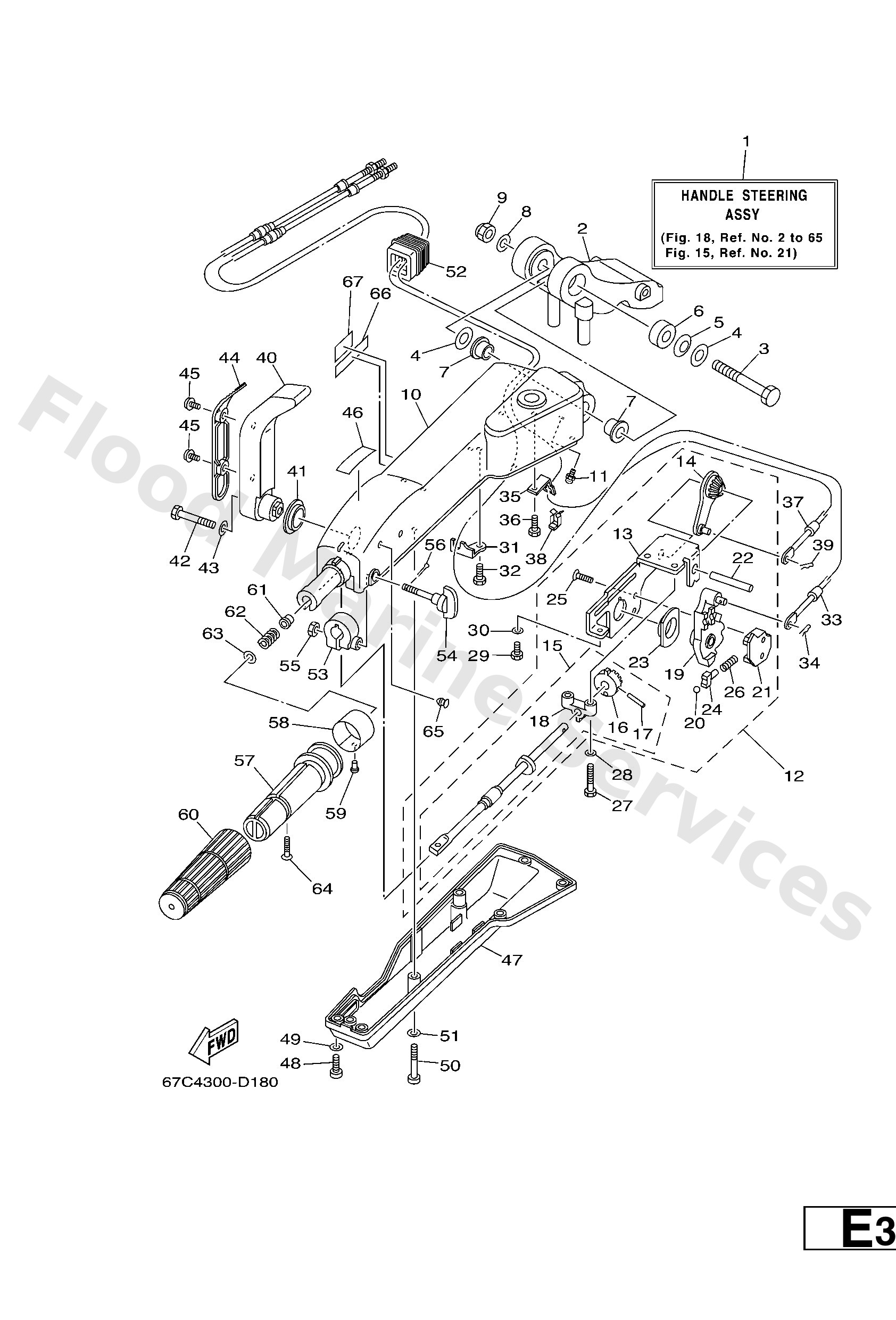

Diagram: STEERING

Diagram

Parts List

69WW0084124D
Handle Steering assembly
Diagram Reference: 1
Get Part
63D42121204D
Bracket
Diagram Reference: 2
Get Part
9010112014
Bolt
Diagram Reference: 3
Get Part
9299012200
Ybs66-12 washer,plain
Diagram Reference: 4
Get Part
9020612M22
Washer, wave(6b0)
Diagram Reference: 5
Get Part
9038712M02
Collar(6b0)
Diagram Reference: 6
Get Part
9038612M93
Bush(6b0)
Diagram Reference: 7
Get Part
9299012600
Washer, plate(663)
Diagram Reference: 8
Get Part
9018512M12
Nut, self-locking(6e5)
Diagram Reference: 9
Get Part
67G42111024D
Handle, Steering
Diagram Reference: 10
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 11
Get Part
69W4410010
Shift Link assembly
Diagram Reference: 12
Get Part
67C4410400
Plate Comp.
Diagram Reference: 13
Get Part
69W4826100
Arm, Throttle
Diagram Reference: 14
Get Part
69W4211510
Shaft, Steering Handle
Diagram Reference: 15
Get Part
650421520094
Gear
Diagram Reference: 16
Get Part
9169030025
Pin, spring
Diagram Reference: 17
Get Part
67G4215900
-
Diagram Reference: 18
Get Part
67C4411300
Cam plate, handle
Diagram Reference: 19
Get Part
63D4823600
Roller, detent
Diagram Reference: 20
Get Part
67C4811900
Cover
Diagram Reference: 21
Get Part
67G4215300
-
Diagram Reference: 22
Get Part
67G4413200
Bushing
Diagram Reference: 23
Get Part
63D4823700
Adaptor
Diagram Reference: 24
Get Part
9878505014
Screw 3
Diagram Reference: 25
Get Part
63D4823800
Spring, detent
Diagram Reference: 26
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 27
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 28
Get Part
9709506014
Bolt(gj3)
Diagram Reference: 29
Get Part
67G4853100
Bracket, Remote Control 1
Diagram Reference: 31
Get Part
67C4832100
Cable
Diagram Reference: 33
Get Part
9046810005
Pin, hair 6264123500
Diagram Reference: 34
Get Part
69W4853800
-
Diagram Reference: 35
Get Part
69W2630100
Throttle cable assembly
Diagram Reference: 37
Get Part
63D4853800
Clamp, cable 1
Diagram Reference: 38
Get Part
67G44159004D
Handle, Gear Shift
Diagram Reference: 40
Get Part
9038626MA3
Bush
Diagram Reference: 41
Get Part
9709508040
Bolt, hexagon
Diagram Reference: 42
Get Part
9299508600
Washer, plain (663)
Diagram Reference: 43
Get Part
67G4417300
Lever, Shift Control
Diagram Reference: 44
Get Part
9015906M18
Screw, with washer(6b0)
Diagram Reference: 45
Get Part
6G84419100
Indicator, shift
Diagram Reference: 46
Get Part
67G4213100
-
Diagram Reference: 47
Get Part
9788506016
Screw, pan head(6b0)
Diagram Reference: 48
Get Part
9788506040
Screw pan head
Diagram Reference: 50
Get Part
63D4272500
Grommet
Diagram Reference: 52
Get Part
63D4212600
Friction, steering handle grip
Diagram Reference: 53
Get Part
63D4815400
-
Diagram Reference: 54
Get Part
9538006600
Nut(661)
Diagram Reference: 55
Get Part
9149020010
Pin, cotter
Diagram Reference: 56
Get Part
69W4211900
Grip, Steering Handle
Diagram Reference: 57
Get Part
6J04213700
Indicator, throttle
Diagram Reference: 58
Get Part
9026902M09
Rivet(6l5)
Diagram Reference: 59
Get Part
6G14217700
Rubber, handle
Diagram Reference: 60
Get Part
9038608032
Bushing (650)
Diagram Reference: 61
Get Part
9050123215
Spring (655)
Diagram Reference: 62
Get Part
9290310600
Washer, plate
Diagram Reference: 63
Get Part
9014905M13
Screw, countersunk
Diagram Reference: 64
Get Part
9033807180
Plug(1nl)
Diagram Reference: 65
Get Part
6E08362741
Label, caution 7
Diagram Reference: 66
Get Part
6E08362751
-
Diagram Reference: 67
Get Part
